Oakton WD-93631-21 Digi-Sense Industrial High-Temperature Flexible Thermocouple Probes, Miniconnector

Name: Oakton WD-93631-21 Digi-Sense Industrial High-Temperature Flexible Thermocouple Probes, Miniconnector
Brand: Oakton
SKU: OaktonWD-93631-21
Price: 57.08 USD
Availability: InStock

0 reviews | Catalog: 9363121 | Model: Oakton WD-93631-21

Compare

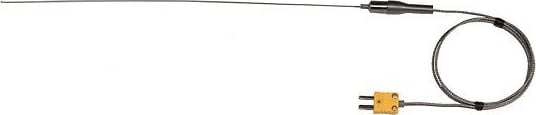

Digi-Sense Type-K, Hi-Temperature 25 in. L, .063 in. Dia Probe, Mini-Connector, Grounded , 3ft 24 -Gauge

Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature.
Response Time: 1.5 seconds or greater
Type K and J feature ICONEL 600 sheath
Type T 316 Stainless Steel sheath
Probes are insulated with tightly packed powdered MgO in 25" long sheaths
Probes include 3-ft stranded 24 gauge (0.020" dia) fiberglass wire with stainless steel over braid.
Each probe comes with color coded ANSI miniconnectors: type J-black, type K-yellow, type T-blue, and type E-purple
Custom designs or changes to this product are available upon request.

View Product Details

List Price: $70.90

Your Price: $57.08

In Stock:

View Payment Options

Request Quote

Recommended for you

High-Temperature Thermocouple Probes Designed for Multiple Bends in any Environment

Note the temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Oakton WD-93631-21 General Specifications
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1690
Min Temperature (° C)	-150
Max Temperature (° C)	920
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini Connector
Sheath material	Inconel®
Handle Material	Stainless steel
Sheath Length (in)	25
Sheath Diameter (in)	0.0625
Description	Type-K, Hi-Temperature 25" L, .063" Dia Probe, Mini Conn, Grd, 3ft 24-Ga

Tech Specs

Accessories/Probes/Temperature Probes Template
Probe Length	25 IN
Lead Length	36 IN (25.40 MM)
Test Equipment General Attributes
HTS/Schedule B Number	9025.90.0600
ECCN Number	EAR99
Country of Origin	United States
