Oakton WD-93631-02 Digi-Sense High Temperature Flexible Thermocouple Probes

Name: Oakton WD-93631-02 Digi-Sense High Temperature Flexible Thermocouple Probes
Brand: Oakton
SKU: OaktonWD-93631-02
Price: 67.00 USD
Availability: InStock

0 reviews | Catalog: 9363102 | Model: Oakton WD-93631-02

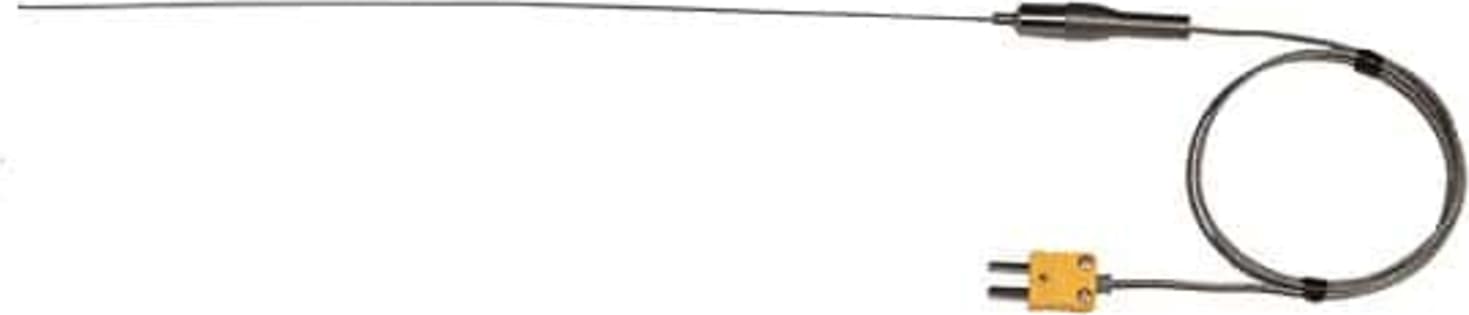

Oakton WD-93631 Type-K DS High Temperature Flexible Thermocouple Probes

Compare

Digi-Sense Type-K, Hi-Temperature 12 in. L, .020 in. Dia Probe, Mini-Connector, Ungrounded, 3ft 24 -Gauge

Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature.
Response Time: 0.3 – 1.5 seconds or greater
Type K and J feature INCONEL 600 sheath
Type T 316 Stainless Steel sheath
Probes are tightly packed with powdered MgO in 12" long sheaths.
Probes include 3-ft stranded 24 gauge (0.020" dia) fiberglass wire with stainless steel over braid.
Each probe comes with color coded ANSI mini connectors: type J-black, type K-yellow, type T-blue, and type E-purple
Custom designs or changes to this product are available upon request.

View Product Details

List Price: $83.10

Your Price: $67.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Oakton WD-93631-02 Digi-Sense Type-K, Hi-Temperature 12 in. L, .020 in. Dia Probe, Mini-Co ...	Oakton WD-93631-00 Digi-Sense Type-K, Hi-Temperature 12 in. L, .020 in. Dia Probe, Mini-Co ...	Oakton WD-93631-01 Digi-Sense Type-K, Hi-Temperature 12 in. L, .020 in. Dia Probe, Mini-Co ...	Oakton WD-93631-12 Digi-Sense Type-K, Hi-Temperature 12 in. L, .040 in. Dia Probe, Mini-Co ...	Oakton WD-93631-20 Digi-Sense Type-K, Hi-Temperature 25 in. L, .063 in. Dia Probe, Mini-Co ...	Oakton WD-93631-22 Digi-Sense Type-K, Hi-Temperature 25 in. L, .063 in. Dia Probe, Mini-Co ...	Oakton WD-93631-52 Digi-Sense Type-K, Hi-Temperature 25 in. L, .063 in. Dia Probe, Sripped ...
Price
In Stock
Thermocouple - RTD Types	K	K	K	K	K	K	K
Max Temperature	700 C	700 C	700 C	700 C	920 C	920 C	920 C
Min Temperature	-150 C (-238 F)	-150 C (-238 F)	-150 C (-238 F)	-150 C (-238 F)	-250 C (-418 F)	-250 C (-418 F)	-250 C (-418 F)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Oakton WD-93631
Digi-Sense High Temperature Flexible Thermocouple Probes

Oakton_WD-93630_Type-K_DS_High_Temperature_Flexible_Thermocouple_Probes

Digi-Sense Type-K, Ungrounded, High-Temperature Flexible Thermocouple Probes, 12 inches Length
Probes are insulated with tightly packed powdered MgO in 12" or 25" long sheaths
Feature color-coded ANSI mini connectors
Bend probes to easily determine your pipe temperature
Stainless Steel Handle Material

Get Into Tight Spaces

Bend probes to easily determine your pipe temperature. Probes are insulated with tightly packed powdered MgO in 12" or 25" long sheaths. Type J and type K probes feature Inconel® sheaths. Type T probes feature 316 SS sheaths. Feature color-coded ANSI miniconnectors: type J-black, type K yellow, type T-blue, and type E-purple; or stripped ends.

General Specifications
Probe Type	K
Length (")	12
Min Temperature (° F)	-250
Max Temperature (° F)	1290
Min Temperature (° C)	-150
Max Temperature (° C)	700
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	Inconel®
Handle Material	Stainless steel
Sheath Length (in)	12
Sheath Diameter (in)	0.02
Cable Length (in)	36
Description	Type-K, Hi-Temperature 12" L, .020" Dia Probe, Mini Conn, Ungrd, 3ft 24-Ga

Tech Specs

Accessories/Probes/Temperature Probes Template
Thermocouple - RTD Types	K
Max Temperature	700 C
Min Temperature	-150 C (-238 F)
Insulation Material	Stainless Steel
Probe Length	12 IN
Test Equipment General Attributes
Country of Origin	United States
