Oakton WD-56700-00 PH Meters - Style (pH Meters): Benchtop, Minimum pH: 0.00, Maximum pH: 14.00

Name: Oakton WD-56700-00 PH Meters - Style (pH Meters): Benchtop, Minimum pH: 0.00, Maximum pH: 14.00
Brand: Oakton
SKU: OaktonWD-56700-00
Price: 432.18 USD
Availability: InStock

0 reviews | Catalog: WD-56700-00 | Model: Oakton WD-56700-00

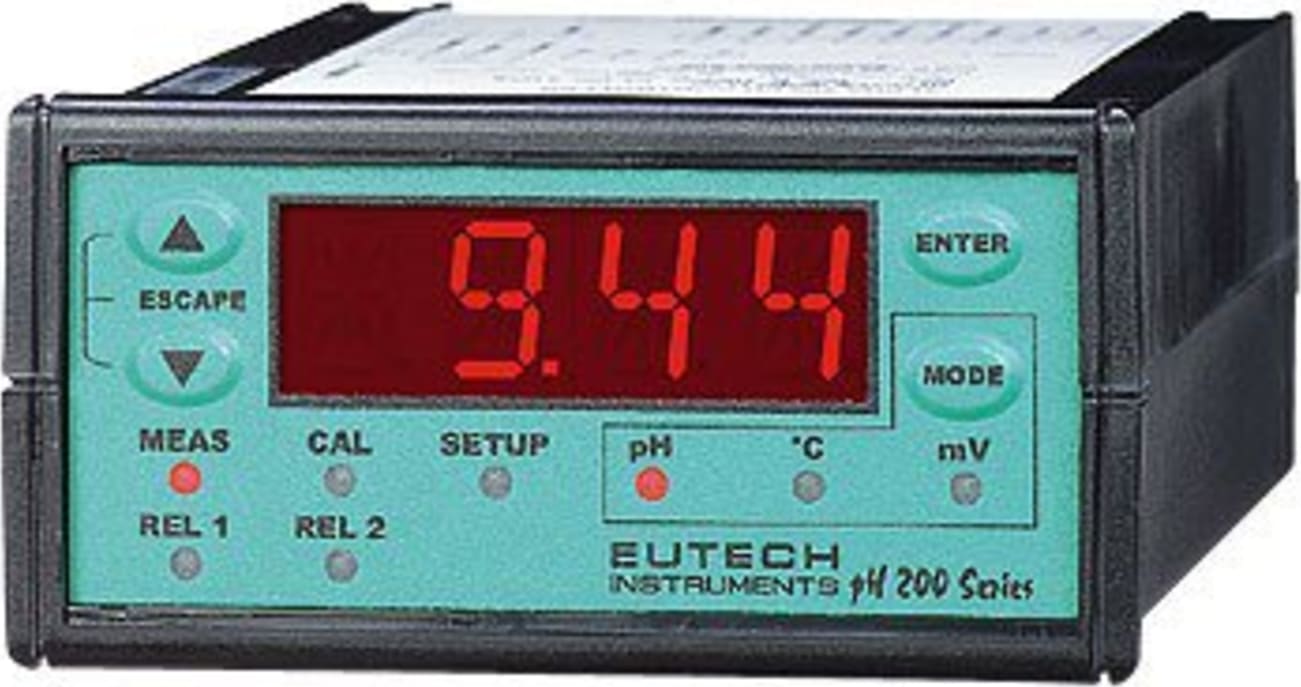

WD-56700-00_Eutech_pH_200_controller_Main_View

Compare

pH 200 controller, Direct Replacement for WD-35102-00

Tactile, water-resistant membrane keypad
Economical controller is designed with the features and reliability of a much more expensive instrument.
Two-level password protection allows calibration access without accidentally changing controller set-up.
Symmetrical or asymmetrical mode operation

View Product Details

List Price: $518.63

In Stock:

View Payment Options

Recommended for you

WD-56700-00 Eutech pH 200 controller

TThis compact and economical controller has removable terminal strips and accepts power input between 85 to 250 VAC/DC for simple installation. The scrolling 14-segment LED display guides the user through setup, calibration, and operation functions.

Setup and calibration modes are password-protected to prevent unauthorized changes. Operator can review previous calibration points and the electrode slope and offset for diagnostic purposes. The controller can be set for automatic or manual temperature compensation depending upon the application. The user can select one- or two-point calibration at seven common buffer values.

Two independently programmable relays can be customized for set points and hysteresis. LED enunciators on the front panel indicate operation mode, measured parameter, and relay status. A galvanically isolated, 4 to 20 mA output is available for logging purposes. Order 100 Pt RTD, tinned-end electrodes with BNC pH connectors separately.

Control Type	On/Off
Display Type	LED
Housing Material	1/8-DIN
Min pH (pH)	0
Max pH (pH)	14
pH Resolution	0.01
pH Accuracy	±0.01 pH unit
Min mV (mV)	-1000
Max mV (mV)	1000
mV Resolution	1mV
mV Accuracy	±2mV
Min Temperature (° C)	-10
Max Temperature (° C)	110
Min Temperature (° F)	14
Max Temperature (° F)	230
Temperature Resolution	0.1°
Temperature Accuracy	±0.5°C
Temperature Compensation	Automatic or Manual
Password Protection	Yes
Output Alarm	2 SPDT (120vAC, 6A)
Output Current	4-20mA
Output Relay	2 SPDT relays
Width (cm)	9.53
Height (cm)	4.76
Width (in)	3 3/4
Height (in)	1 7/8
Depth (in)	6
Description	pH 200 1/8-DIN pH/ORP controller

Tech Specs

Environmental Testers / Physical Property/PH Meters Template
Style (pH Meters)	Benchtop
Minimum pH	0.00 pH
Maximum pH	14.00 pH
pH Resolution	0.01
pH Accuracy	±0.01
Measuring Conductivity	No
Test Equipment General Attributes
Unique Features	• Two set point, two SPDT relay for on/off control • Selectable symmetrical mode operation eliminates electrical noise • Toggle between pH (or mV) and temperature display • Removable terminal strips offer quick and easy connections • Eutech pH 200 controller. Includes mounting hardware and terminal blocks
Warranty	3 YEARS
Storage	Internal Memory
Product Height	96 MM (3.78 IN)
Product Length	48 MM (1.89 IN)
Product Width	150 MM (5.91 IN)
Shipping Weight	3 LBS
Data Logging	Yes
Country of Origin	United States
Other Information	Panel mount dimension:: 91 x 45 mm
