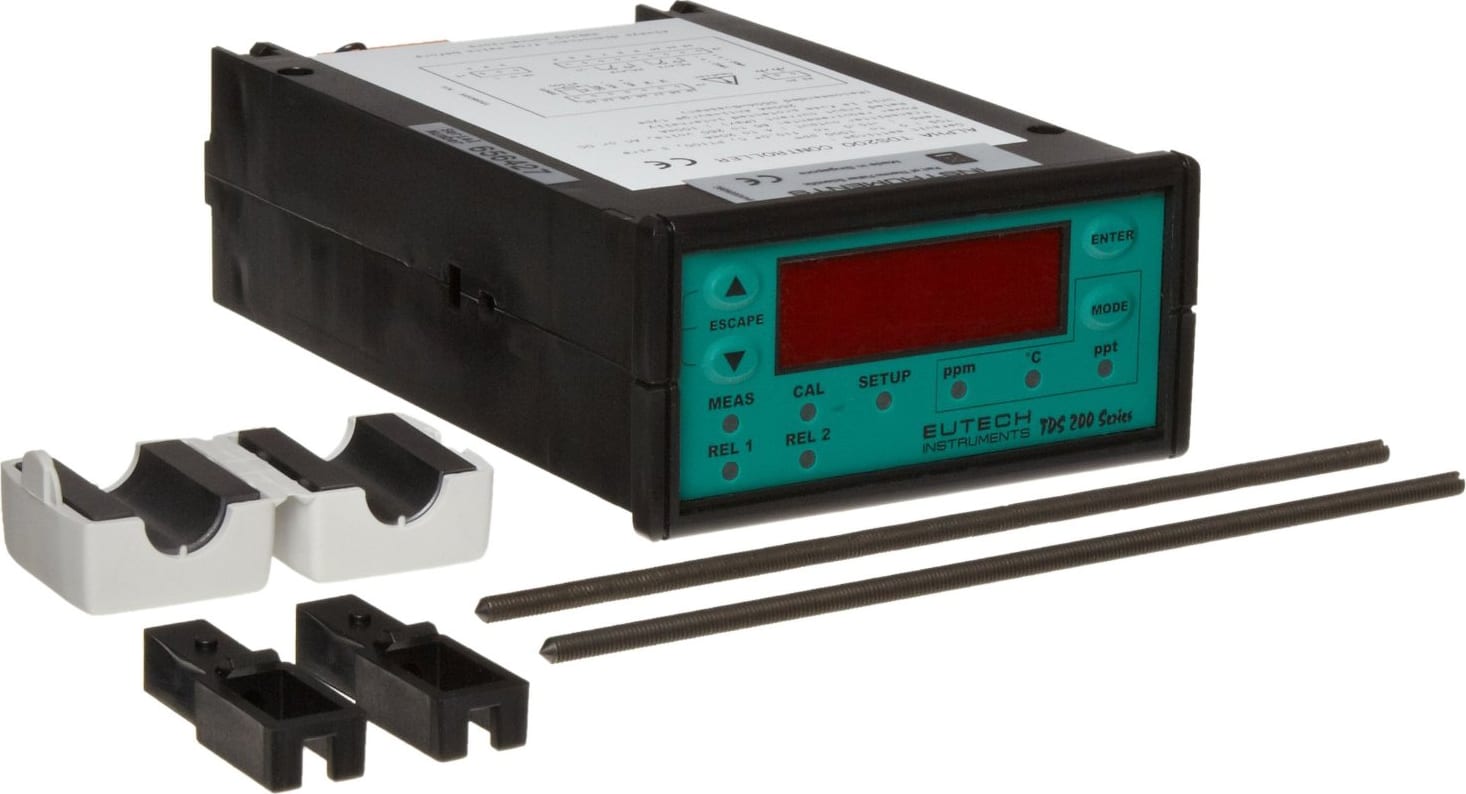

Oakton WD-19505-10 Eutech TDS 200 Controller with 1/8-DIN Housing

Name: Oakton WD-19505-10 Eutech TDS 200 Controller with 1/8-DIN Housing
Brand: Oakton
SKU: OaktonWD-19505-10
Price: 464.17 USD
Availability: InStock

0 reviews | Catalog: WD-19505-10 | Model: Oakton WD-19505-10

Compare

TDS 200 Controller

Economical controller designed with the features and reliability of a much more expensive instrument
Reliable power supply withstands voltage fluctuation from 85 to 265 VAC
Adjustable hysteresis prevents rapid relay switching near set points
Adjustable TDS factor, temperature coefficient, and selectable cell constants
Galvanically isolated 4-20 mA output for remote monitoring or hard copy recording
Removable terminal strips offer quick and easy connections
Battery back-up of memory maintains set-up if power fails

View Product Details

List Price: $557.00

In Stock:

View Payment Options

Recommended for you

Oakton WD-19505-10 Eutech TDS 200 Controller with 1/8-DIN Housing

Scrolling, 14-segment LED display makes setup simple

These sturdy, compact controllers withstand voltage fluctuations from 85 to 250V AC/DC! They are ideal for installation were electrical fluctuations are common, or install them in series throughout areas of differing electrical conditions.

Advanced setup mode lets you select cell constant, TDS factor, temperature coefficient, manual or automatic temperature compensation, hysteresis band and more. It also lets you view previous calibration points.

The 1/8 DIN housing is ready to install in standard panels and NEMA rated boxes. Includes mounting hardware; accepts probes with stripped ends and Pt 100 RTD ATC elements.

General Specifications
Measures:	TDS, °C
TDSRange:	0 to 10.00 ppm 0 to 100.0 ppm 0 to 1000 ppm 0 to 5.00 ppt 0 to 10.00 ppt 0 to 100.0 ppt
TDSResolution:	0.01 ppm 0.1 ppm 1 ppm 0.01 ppt 0.1 ppt
Special features:	Conductivity to TDS factor adjustable from 0.40 to 1.00
Calibration:	one point, slope calibration
Control accuracy:	±1% full-scale
TemperatureRange:	-10.0 to 110.0 °C
TemperatureResolution:	0.1°C
TemperatureAccuracy:	±0.5°C
TemperatureCalibration:	offset up to ±10°C
Control type:	on/off
Number of inputs:	one
Number of set points:	two
OutputControl:	2 SPDT nonpowered relays, 6A at 110 VAC; 250 VAC max
OutputCurrent:	4-20 mA output, isolated
Hysteresis:	0 to 10% of range, adjustable for each set point
Electrical isolation:	yes, galvanically
Temperature Sensor:	Pt 100
Temperature Compensation:	automatic or manual, from 0 to 100°C
Password protection:	two levels
Display:	4-digit, 14 segment scrolling LED
Operating Temperature:	0 to 50°C
Housing:	1/8 DIN
Dimensions:	3-3/4"W x 1-7/8"H x 6"D
Shipping weight:	0.5 lb (0.2 kg)
