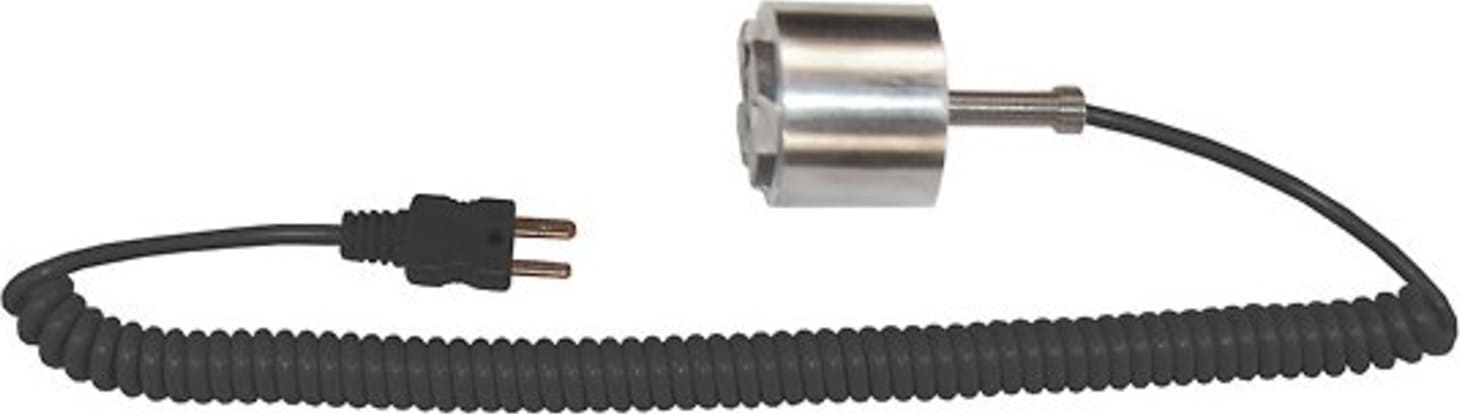

Oakton WD-08517-86 Type J Dropping Surface Magnetic Thermocouple Probe

Name: Oakton WD-08517-86 Type J Dropping Surface Magnetic Thermocouple Probe
Brand: Oakton
SKU: OaktonWD-08517-86
Price: 156.25 USD
Availability: InStock

0 reviews | Catalog: 0851786 | Model: Oakton WD-08517-86

Compare

Digi-Sense Type-J Dropping / Magnetic Probe 1.5 in. L Mini-Connector, Exposed 5ft Coil Cord

Magnetic Probes Designed for Monitoring a Wide Range of Flat Surfaces
Easily attach to any ferrous surface
Ideal for long term installation
Magnet strength is 15lbs max
Response Time: 1.25 seconds or greater
Each probe comes with color coded ANSI coiled cable and connector: type J-black

View Product Details

List Price: $194.00

Your Price: $156.25

In Stock:

View Payment Options

Request Quote

Recommended for you

Oakton WD-08517-86 Type J Dropping Surface Magnetic Thermocouple Probe

Note: the temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

General Specifications
Product Type:	Thermocouple Probe
Temp range:	32 to 1200°F (0 to 649°C)
Min temperature (º F):	32
Max temperature (º F)	1200
Min temperature (º C):	0
Max temperature (º C):	649
Temp accuracy:	±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C)
Probe type:	J
Probe length (in.):	1.5
Junction:	Exposed
Sheath material:	Aluminum Housing
Qty/ea:	1
