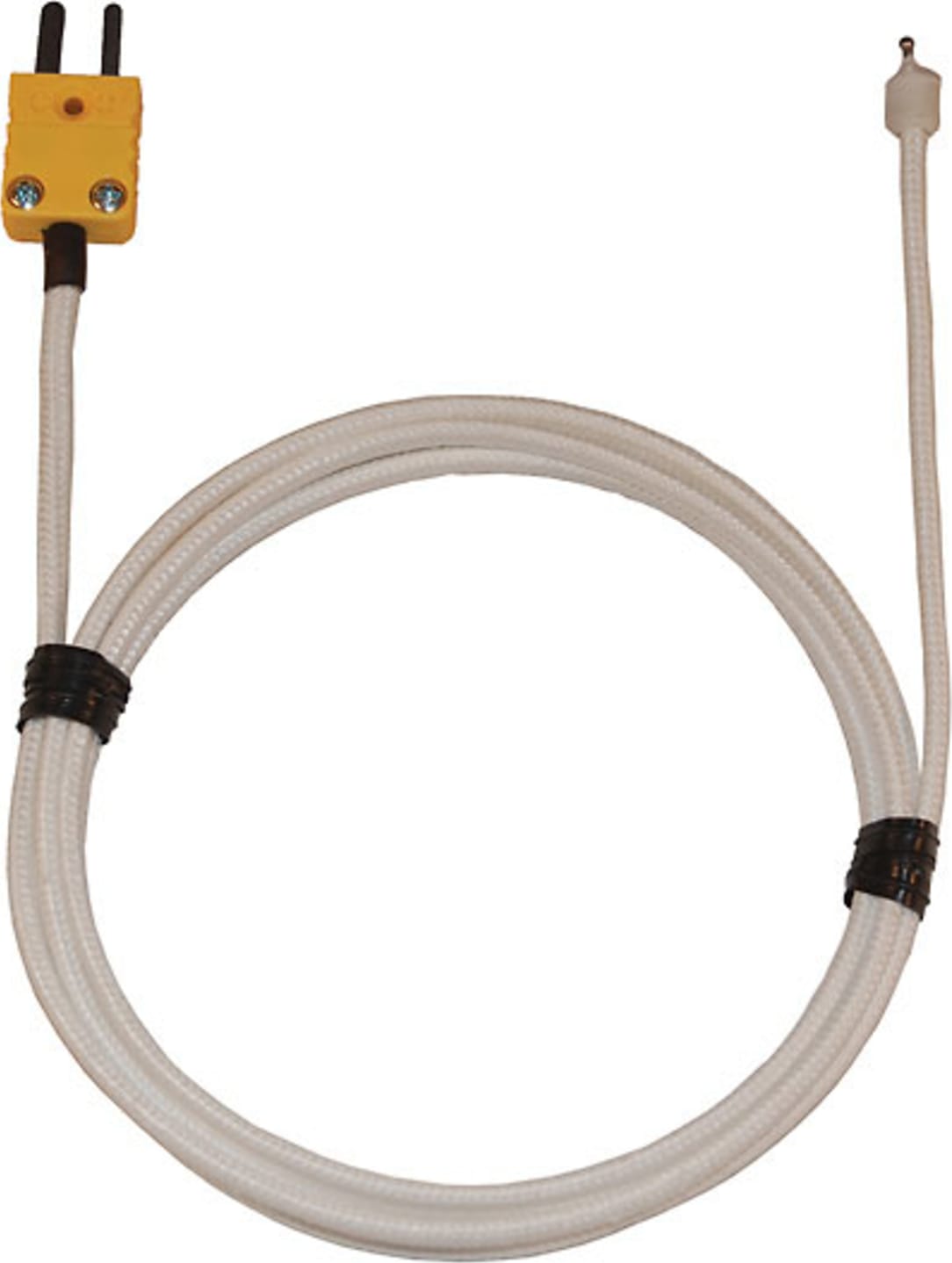

Oakton WD-08467-64 20 Gauge Ceramic Fiber-Insulated Flexible Wire Thermocouple Probe, Type K

Name: Oakton WD-08467-64 20 Gauge Ceramic Fiber-Insulated Flexible Wire Thermocouple Probe, Type K
Brand: Oakton
SKU: OaktonWD-08467-64
Price: 51.83 USD
Availability: InStock

0 reviews | Catalog: 0846764 | Model: Oakton WD-08467-64

Compare

Digi-Sense Type-K High-Temperature Ceramic Fiber-Insulated Probe Mini-Connector, Exposed 5ft 20 -Gauge

Ceramic Fiber Insulated Wire Used for High-Temperature Measurements
Ceramic fiber cannot be handled after 800°F (426°C) due to flaking of insulation.
Response Time: 0.75 seconds or greater
All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded mini connector: type K - yellow.

View Product Details

List Price: $62.20

Your Price: $51.83

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Oakton WD-08467-64 Digi-Sense Type-K High-Temperature Ceramic Fiber-Insulated Probe Mini-C ...	Oakton WD-08512-82 Digi-Sense Type-K, Fiberglass-Insulated Probe, Mini-Connector, Exposed, ...	Oakton WD-08512-83 Digi-Sense Type-T, Fiberglass-Insulated Probe, Mini-Connector, Exposed, ...	Oakton WD-08512-81 Digi-Sense Type-J, Fiberglass-Insulated Probe, Mini-Connector, Exposed, ...	Oakton WD-08467-24 Digi-Sense Type-K High-Temperature Fiberglass-Insulated Probe Mini-Conn ...	Oakton WD-08467-22 Digi-Sense Type-J High-Temperature Fiberglass-Insulated Probe Mini-Conn ...
Price
In Stock
Probe Length	60 IN	120 IN	120 IN	120 IN	120 IN	120 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Specifications
Product Type	Thermocouple Probe
Temp range	-250 to 2000°F (-150 to 1093°C)
Min temperature	(º F) -250
Max temperature	(º F) 2000
Min temperature	(º C) -150
Max temperature	(º C) 1093
Temp accuracy	±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Probe type	K
Probe length (in.)	60
Gauge	20-Gauge
Junction	Exposed
Sheath material	Hi-Temp Fiberglass Insulated Wire
Qty/ea	1

Accessories/Probes/Temperature Probes Template
Probe Length	60 IN
Lead Length	120 IN (25.40 MM)
Test Equipment General Attributes
Product Height	0.25 IN
Product Length	5.00 IN
Product Width	4.00 IN
HTS/Schedule B Number	9030.90.8961
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	0.25 IN
Shipping Length	5.00 IN
Shipping Width	4.00 IN
