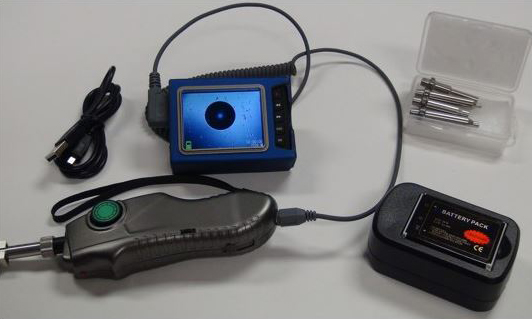

OWL VS-400-H 400x Hand-Held Video Microscope
- 5 Probe tips included: 2.5mm universal, 1.25mm universal, SC, FC, and LC
- NOTE: ST probe tips are not supported, due to the variation between different manufacturers ST connector ports and adapter construction.
A dependable connector endface inspection scope is a vital part of any fiber optic professional’s tool kit. Inspecting patch cord connector endfaces before attaching them to equipment or patch panels saves time and effort, and ensures a clean, quality connection. These 400x video inspection scopes allow users to view connector endfaces on a video screen, preventing harmful invisible light from entering the users eye, and ensuring maximum eye protection.
The VS400-H is a stand-alone video inspection scope, with a high-resolution LCD display that shows fiber endface anomalies in great detail. Endface images can be stored in internal memory, which can then be downloaded via USB to a PC or laptop for later playback. These video images can also be analyzed with software specifically designed to digitally analyze endfaces for dust, dirt, finger oil, scratches, pits, and other anomalies.

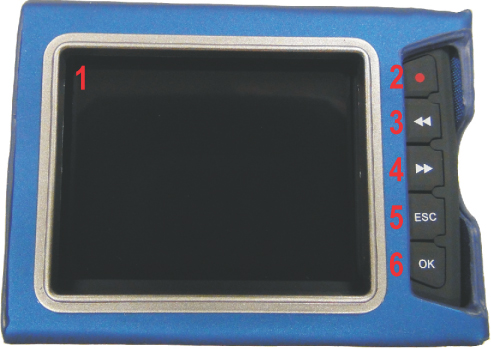

- LCD Display
- Video record button
- Left arrow button
- Right arrow button
- Back/return button
- Confirm button
|
|
- Microphone
- Speaker
- Power / image capture button
|
|

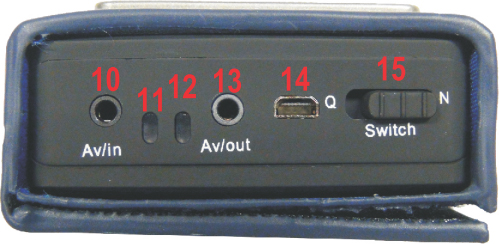

- AV / Probe input
- Charging indicator LED
- Power indicator LED
- AV / Probe output
- USB connector
- Lock
|
|
