5 (1 Review) | UPC: 094308432410 | Model: OWL KIT-Z2-D285SC-L213SC

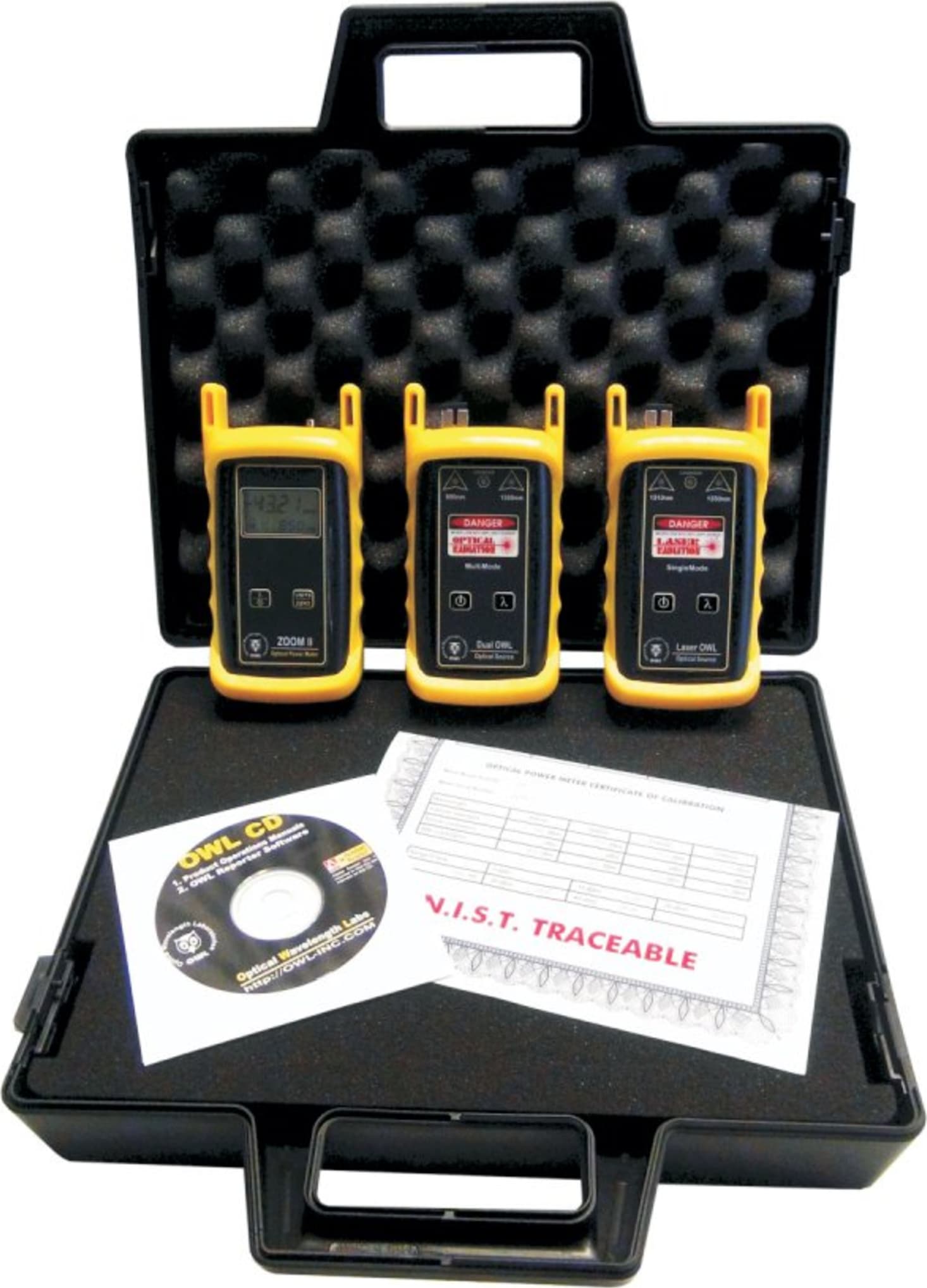

ZOOM 2 / Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit
List Price: $915.00
Your Price: $703.85
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
The ZOOM 2 / Dual OWL / Laser OWL Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single-mode networks. The ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode and singlemode fiber cables. The 4-digit 7-segment LCD displays power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM 2 comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.
5. Single press changes wavelength; holding button powers the unit ON or OFF. 6. Single press toggles the power units between dBm, dB, and uW; holding sets the reference for the selected wavelength. The Dual OWL 850 is a NIST traceable multimode light source. Its LED output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification.. The Dual OWL has two connector options: ST or SC.
6. Charger Indicator LED - Indicates the status of the charger port. 7. Power Button - Powers the unit ON or OFF. 8. Wavelength Select Button - Switches the unit between 850nm and 1300nm. NOTE: During normal operation, if the indicator LEDs are not lit, this indicates that the battery has insufficient power to provide accurate readings and must be replaced. NOTE: Single wavelength versions (850nm only or 1300nm only) will only have a single optical port. The Laser OWL 1310 is a NIST traceable singlemode light source. Its FP laser wavelength output is temperature stabilized for accurate measurements, and compliant to national and international testing standards for certification. Three connector options are available (ST, SC, and FC).
6. Charger Indicator LED - Indicates the status of the charger port. 7. Power Button - Powers the unit ON or OFF. 8. Wavelength Select Button - Switches the unit between 850nm and 1300nm. NOTE: During normal operation, if the Output LED (3) is not lit, this indicates that the battery has insufficient power, and must be replaced.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
Saving Us Money Already
5.0
This is the second OWL fiber test kit we have purchased. We have had multiple occasions where a contractor has come in to install and terminate fiber but doesn't test it and will not believe us (the IT dept) that there is an issue. We have found multiple bad connections already with this tester and the contractors had to come back out to reterminate. Very useful tool to have if you have fiber on premises as we do.
Brent on Apr 11, 2016 I found this helpful (0)
