Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed.
![]()

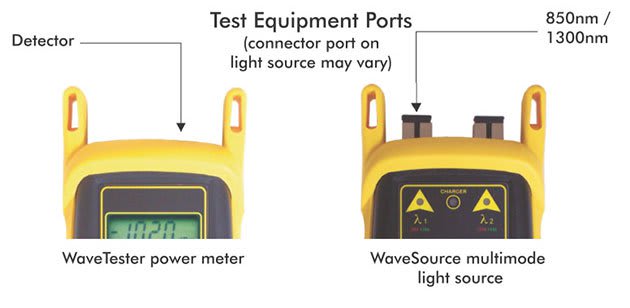

Figure shows the ports used during this procedure. These ports may vary depending upon the model of equipment.
Check OWL WaveTester Series Test Kit Quick Reference Guide in the Document Tab for more details.
The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard copy documentation as proof of adherence to standards.

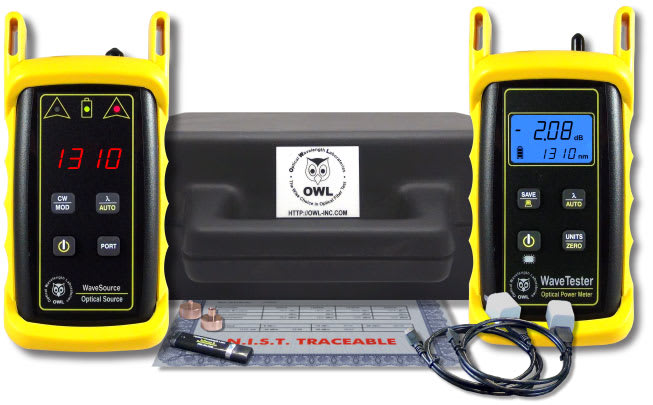

The WaveTester / WaveSource 850/1300 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks
![]()
Connect the power meter and light source together with the first patch cable as shown in the figure.
Check OWL WaveTester Series Test Kit Quick Reference Guide in the Document Tab for more details.
The WaveTester optical power meter is multimode and singlemode ready, and can store reference values for all wavelengths used for optical loss measurements. Up to 200 fiber runs may be stored, and downloaded via a PC serial port for report generation using our OWL Reporter software
The WaveSource 850/1300 is a multimode light source. Its dual wavelength outputs (850 nm & 1300 nm) are temperature-stabilized for accurate measurements. Two connector options are available (STor SC).
Applications
- Full-featured fiber link certification
- Optical loss (attenuation) measurement
- Patch cord verification
