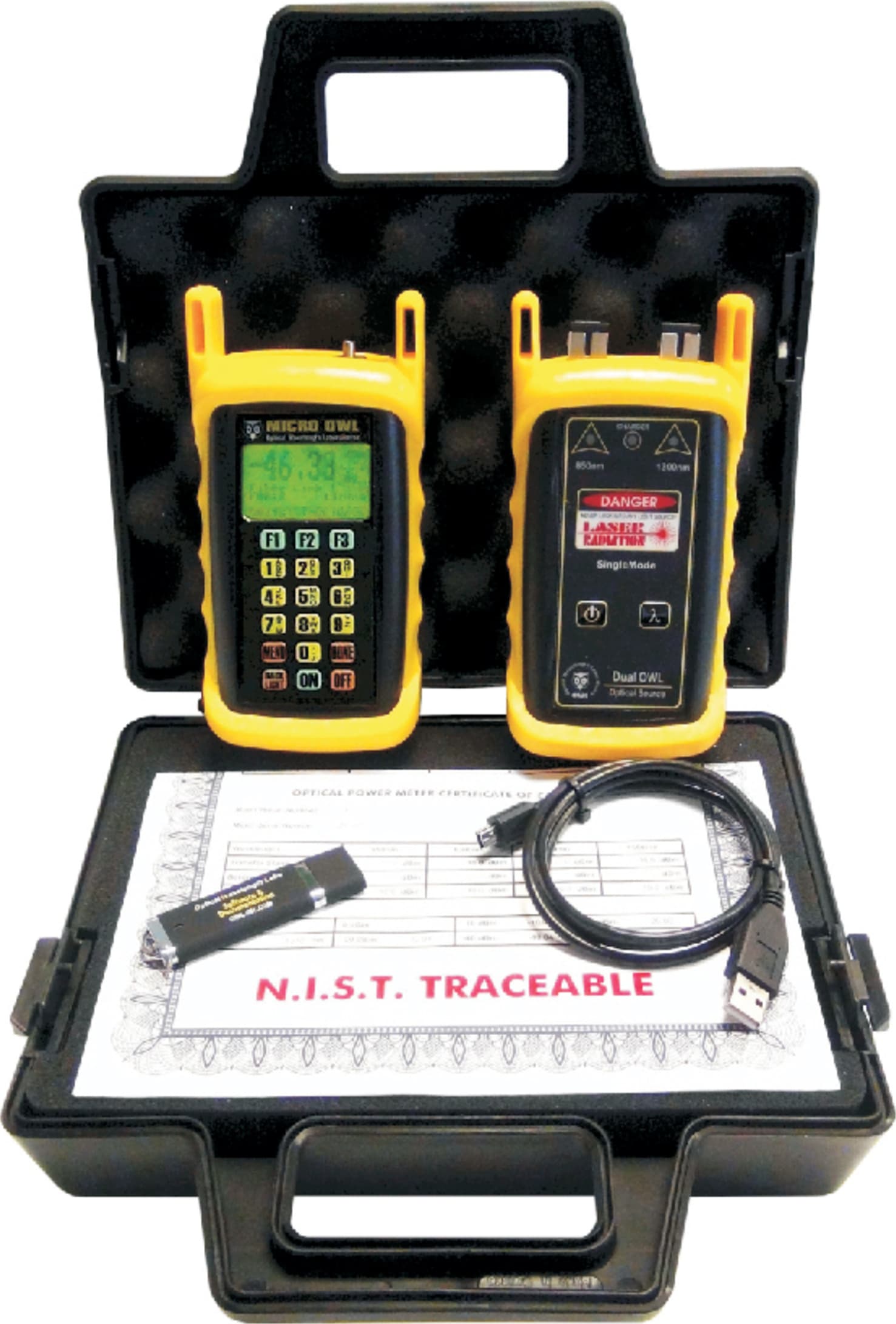

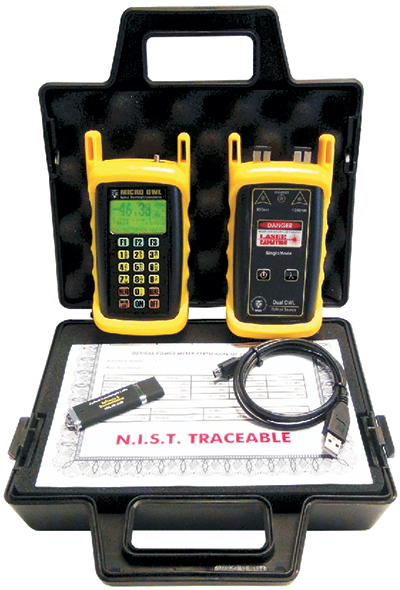

OWL KIT-M2-D2sc Micro OWL 2 / Dual OWL SC MM Test Kit (850/1300nm; SC Connectors)
Supported Cabling Standards:
- EIA/TIA 568-B/C, ISO/IEC 11801
- 10-Gigabit Ethernet
- 1000Base-SX, 1000Base-LX
- 100Base-FX, 10Base-FB
- 10Base-FL, FDDI
- ATM-155, ATM-622
- Fiber Channel
- Token Ring
- Also supports 2 user-definable standards
Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard- copy documentation as proof of adherence to standards.
The
Micro OWL 2 / Dual OWL Test Kit contains the tools necessary for certifying fiber optic links against the TIA-568-B.3 cabling standard in multimode networks.
The
Micro OWL 2 optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation, and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, and downloaded to a PC for report generation using our OWL Reporter software. Its universal port allows connections to ST, SC, and FC, and also includes a 1.25mm universal port for connection to LC, MU, and other SFF connectors.
NOTE: During normal operation, if the indicator LEDs are not lit, this indicates that the battery has insufficient power to provide accurate readings and must be replaced.
NOTE: Single wavelength versions (850nm only or 1300nm only) will only have a single optical port.
