Fiber OWL 4 BOLT / WaveSource SM VFL Test Kit

Compare

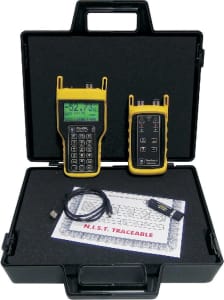

Fiber 4 BOLT / WaveSource SM Auto-test kit with integrated VFL

Fiber OWL 4 BOLT / WaveSource SM Auto-test kit with integrated VFL
Certification of singlemode fiber links at 1310nm and 1550nm
Auto-wavelength recognition and automatic data storage reduce testing time and human error
Integrated fiber optic length tester for accurate link length measurements
Data storage for up to 1000 data points including run labels, fiber type, and link information including link name, date,reference power values, fiber length, and number of splices and interconnects
Built-in loss wizard for calculation of maximum allowable loss values (link budget)
USB interface for continuous data logging, report printing, or data downloading
OWL Reporter software for printing formatted fiber certification reports
Absolute or relative mode for giving you instant pass/fail results
Selectively view, delete or resample data points
Integrated visual fault locator (VFL)

View Product Details

List Price: $1,695.00

Your Price: $1,303.85

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

OWL KIT-FO4B-WS-VSDxx Fiber OWL 4 BOLT / WaveSource SM Auto-Test Kit with integrated VFL

Supported Cabling Standards:

EIA/TIA 568-B/C, ISO/IEC 11801
10-Gigabit Ethernet
1000Base-SX, 1000Base-LX
100Base-FX, 10Base-FB
10Base-FL, FDDI
ATM-155, ATM-622
Fiber Channel
Token Ring
Also supports 2 user-definable standards

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards.

The Fiber OWL 4 BOLT / WaveSource SM VFL Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode networks.

The Fiber OWL 4 BOLT optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation (including integrated fiber link length testing), and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, then downloaded to a PC for report generation using our OWL Reporter software.

It also includes intelligent automated testing functions, such as automatic dual-wavelength storage and auto-wavelength recognition, which reduce testing time and human error.

General Features

2.5mm Universal Connector Port - accepts many popular 2.5mm ferrule connectors, including ST, SC, and FC. Also included is a 1.25mm universal adapter cap (for connection to LC, MU, and other SFF connectors).
USB Serial Download Port - downloads stored data to a PC using the supplied USB download cable. Also used for charging re-chargeable batteries (not included).

DO NOT USE BATTERY CHARGING PORT WITH NON- RECHARGEABLE BATTERIES, AS THIS COULD POTENTIALLY CAUSE HARM TO THE UNIT AND/OR THE USER.

Light Source Port - By default, contains a 1310nm laser source to be used for round-robin length measurement. Optionally, this port could contain a precision-coupled visual fault locator.
LCD Display - shows optical power/loss levels, power units, temperature, battery life, wavelength, and circuit ID information.
Function keys activate certain menu options shown at the bottom of the Fiber OWL 4 LCD display
Enables user to enter alpha- numeric data, as well as activate certain menu options
Activates the MAIN MENU
While in the menu system, reverts the user back one menu level; during data entry, enters the data input and sends the user to the next screen
Activates the light source menu
Turns the unit ON and OFF. Also, toggles the backlight state while the unit is powered on.
Toggles AUTO mode on and off. AUTO mode allows the Fiber OWL 4 to automatically switch wavelengths when used with OWL auto-switching light sources
Lights up when the battery charger is active

Fiber OWL 4 BOLT Optical Power Meter Manual

The WaveSource SM VFL fiber optic laser source is designed for accurate testing and certification of singlemode (1310nm & 1550nm) networks. Its dual-wavelength output is temperature-stabilized for accurate measurements, and the integrated VFL is used for quick visual fault location.

The WaveSource SM VFL has a built-in auto-wavelength switching protocol designed to synchronize the wavelength of the Fiber OWL 4 BOLT with the current output wavelength. Three connector options are available (ST, SC, and FC).

Functional Description

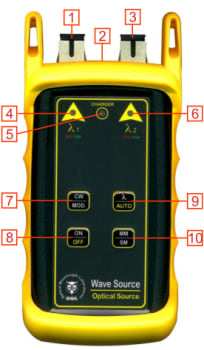

Connections

Optical connector - This port will typically be either a ST or SC connector, and can house a single- or dual-wavelength source. Other options are available. Please see the section at the end of this guide for a complete list of WaveSource configurations.
Battery charging port - If rechargeable 9-volt batteries are used in the WaveSource, the battery charging port is used to re- charge them when used with an approved wall transformer.
NOTE: DO NOT USE BATTERY CHARGING PORT WITH NON- RECHARGEABLE BATTERIES. THERE IS THE POTENTIAL FOR EXPLOSION AND DAMAGE MAY OCCUR TO THE UNIT AND/OR THE USER.
Optical connector - This port will typically be either a ST, SC, or FC connector, and can house a single- or dual- wavelength source. Other options are available. Please see the section at the end of this guide for a complete list of WaveSource configurations.

Indicator Leads

Wavelength selection LED (81) - This LED will either be or depending upon which wavelength is selected.
Battery charger LED - This LED will light up when the battery charging port is in use.
Wavelength selection LED (82) - This LED will either be or depending upon which wavelength is selected.

Buttons
7. CW / MOD. button - Pressing this button will toggle the source between CW (continuous wave) and MOD. (modulated) mode.
8. ON / OFF button - Pressing this button while the source is off will power it on. Holding this button while the source is on will power it off.

9. AUTO button - Pressing this button will toggle the unit between wavelengths in the selected port when there are two wavelengths in the same port. Holding this button will place the source into AUTO mode, where the source automatically switches wavelengths for automatic dual wavelength testing.

10. MM / SM button - Pressing this button will toggle the source between ports, usually MM (multimode) and SM (singlemode). Typically, 81 will be multimode and 82 will be single-mode; however, other options may be available. Please see the section at the end of this guide for a complete list of WaveSource configurations.

Fiber OWL 4 BOLT Optical Power Meter
Detector Type	InGaAs
NIST Traceable Wavelengths	850nm, 1300, 1310nm,1550nm
Additional Wavelengths	980, 1490, 1625nm
Optical Power Measurement Range	+5 to -70 dBm
Accuracy	±0.15 dB
Resolution	0.01 dB
Battery Life	up to 100 hours (9V)
Connector Type	Universal
Data Storage Points	up to 1000
Download Data Points	OWL Reporter Software
Power Units Displayed	dBm, dB, µW
Modes of Operation	Simple / Certification
Optical Fiber Length Measurement Range up	to 25 km
Optical Fiber Length Measurement Accuracy	±2.5 meters
Battery Capacity Display	Yes
Backlight	Yes
NIST Traceable	Yes
Auto-shutdown	Yes
Serial Port Diagnostic	Yes
Operating Temperature	-10 to 55 C
Storage Temperature	-30 to 70 C
Width	3.48”
Height	6.48”
Depth	1.1”
Weight	373g (12 oz.)
Conforms to the Harmonized European Standards EN 61326-1 and EN 61010-1.

WaveSource MM Fiber Optic Light Source
Launch Method (multimode)	FP Laser
Connector	ST, SC, or FC
Center Wavelength (1310nm)	1310 ±30nm
Center Wavelength (1550nm)	1550 ±30nm
Spectral Width (FWHM;1310 nm)	2nm
Spectral Width (FWHM; 1550nm)	2nm
Output Power (singlemode)	-10.0 dBm
Initial Accuracy	0.1 dB
Ouput Modes	Continuous Wave Modulated
Battery Life	up to 30 hrs.
Battery Type	9V alkaline
Battery Capacity Display	Yes
Operating Temperature	0 to 55° C
Storage Temperature	0 to 75° C
Width	2.75”
Height	4.94”
Depth	1.28”
Weight	154g
Conforms to the Harmonized European Standards EN 61326-1 and EN 61010-1.
