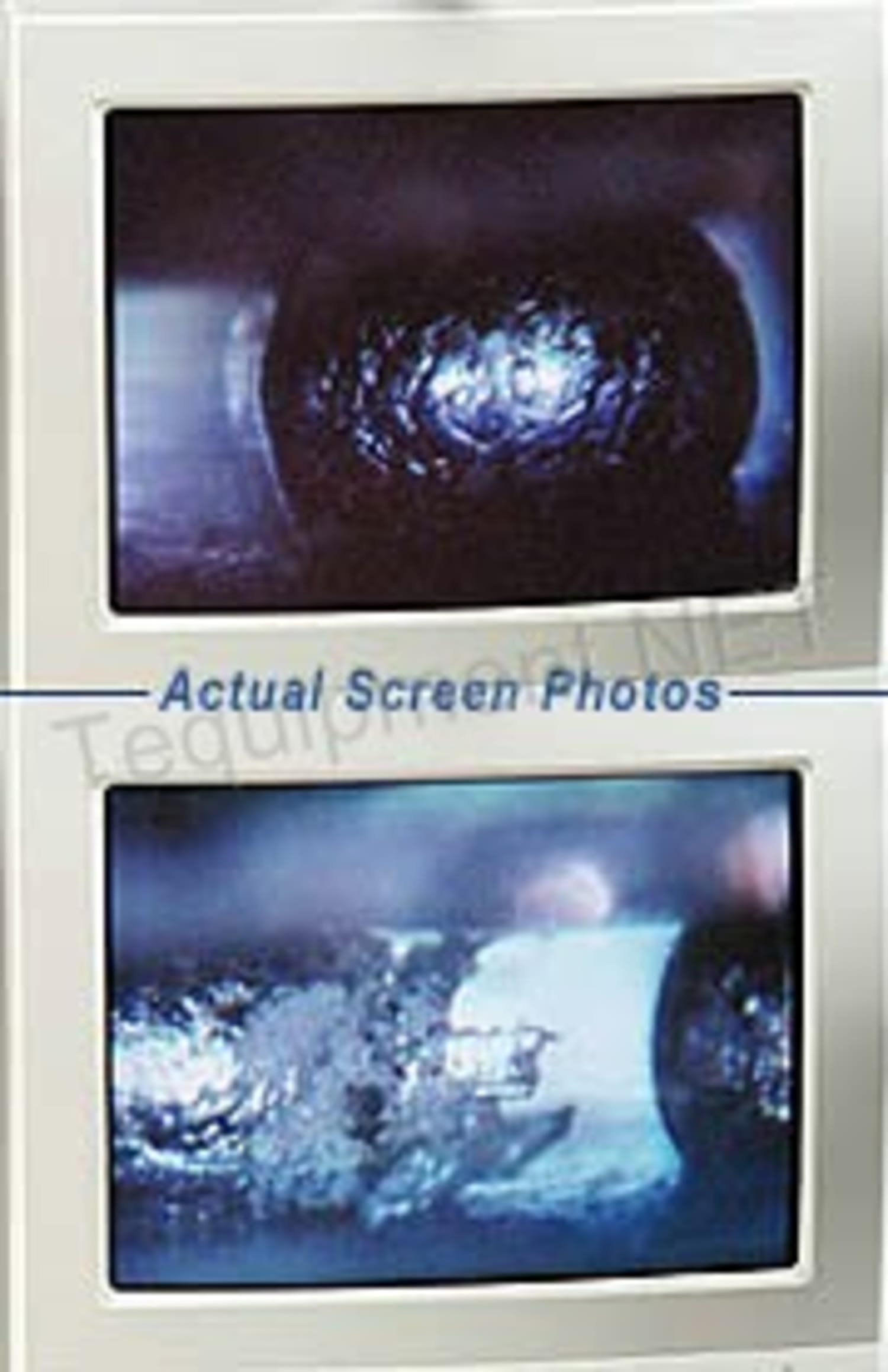

New! from OCWhite: 3D-BGA inspection system is the highest quality bench top 3 dimensional BGA inspection system available today. Featuring an advanced 3-Chip CCD Camera! Constructed with ESD safe components, it enables the operator to inspect BGA, PBGA, CBGA and MICRO-BGA for micro-cracking, surface structure, excess flux residue and much more.
The 3D-BGA Inspection System proudly offers:
A revolutionary lens...
The lens offers an incredible depth of field from a magnitude of 50X to 200X. With a quick and easy turn of the adjustment ring the lens is rotated to yield clear, sharp 3D images from various angles. Never before has it been so easy to view the quality of the solder joints, solder paste print, surface structure, placement, alignment and flux process. The images come alive!
Unique, versatile & flexible metal halide light source...
12V light source provides 4 fiber optic light bundles with intense white light at 5500ºK; a process that provides true daylight illumination for color rendering and color balance. No blind spots! The external power supply is capable of operating between 90 and 240VAC at 50-60HZ and the AC input cord is interchangeable with international cord sets.
Advanced 3-chip CCD camera technology...
The clearest, sharp and bright 3D images are captured by Panasonic's finest Hi-resolution 3-chip CCD camera and transmitted to a Sony Hi-resolution 15" color monitor. 3-chip camera technology makes the images displayed by OC White's 3D BGA Inspection System unbeatable! No more back fatigue and neck strain from microscope inspection. Now you can inspect from an ergonomically correct posture.
State-of-the-art: stage, stand, and X-Y table...
Easily functional, attractive and durable support system specially designed for precise fine focusing applications.
Ultimate video measurement system...
The 3D-BGA Inspection System option includes the ultimate in Hi-resolution video measurement systems and features:
- Linear, angle and circular measurement one pixel at a time.
- Crossline 10 pre-set calculation capability with password protections.
- Data download capability for archiving or transmitting data worldwide.
- Functions with monitor and computer or with included monitor alone.
The result: Accurately measured and scaled 3D-BGA HI-Resolution images, alive and in living color!!!
HI-Performance, HI-Resolution video frame grabber...
The 3D-BGA Inspection System offers as an option a high speed PCI & compact PCI video frame grabber that features:
- High performance super VGA windows accelerator chip
- 4MB high-bandwidth MDRAM
- NTSC and PAL compatible
- High-quality video-in-a-window scaling
- DOS, Windows 95/98/NT & OS/2 drivers
- Microsoft plug & play compatibility
- Program hue, contrast, saturation, brightness, offset and gain
The result: Accurately measured and scaled 3D-BGA HI-resolution images transmitted over the internet, alive and in living color!!!
Ergonomic benefits
The 3D-BGA Inspection System offers true ergonomic benefits to the work place:
- No more stooping over the microscope. The inspector sits or stands at the workplace in an ergonomically correct posture performing inspection tasks.
- Eliminates eye fatigue associated with prolong microscope use. Inspection is conducted using a Hi-resolution monitor depicting 3D color images.
- Ease of training is an added benefit. Now everyone sees the same 3D Hi-resolution color images on the monitor versus the single person-single view process inherent with microscopes.
The result: Accurately measured and scaled 3D-BGA Hi-resolution color images inspected in a comfortable and productive work environment!!!
