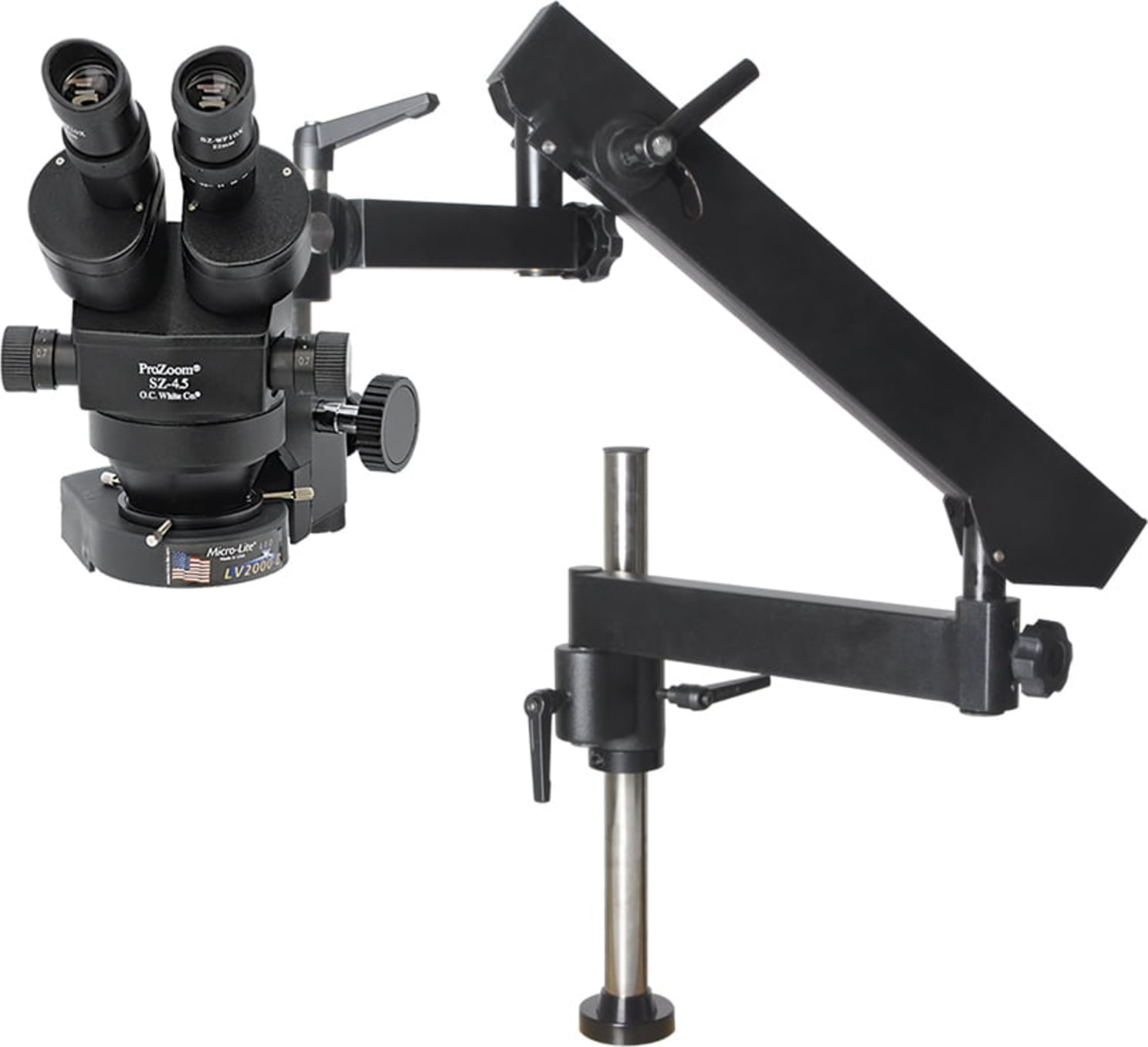

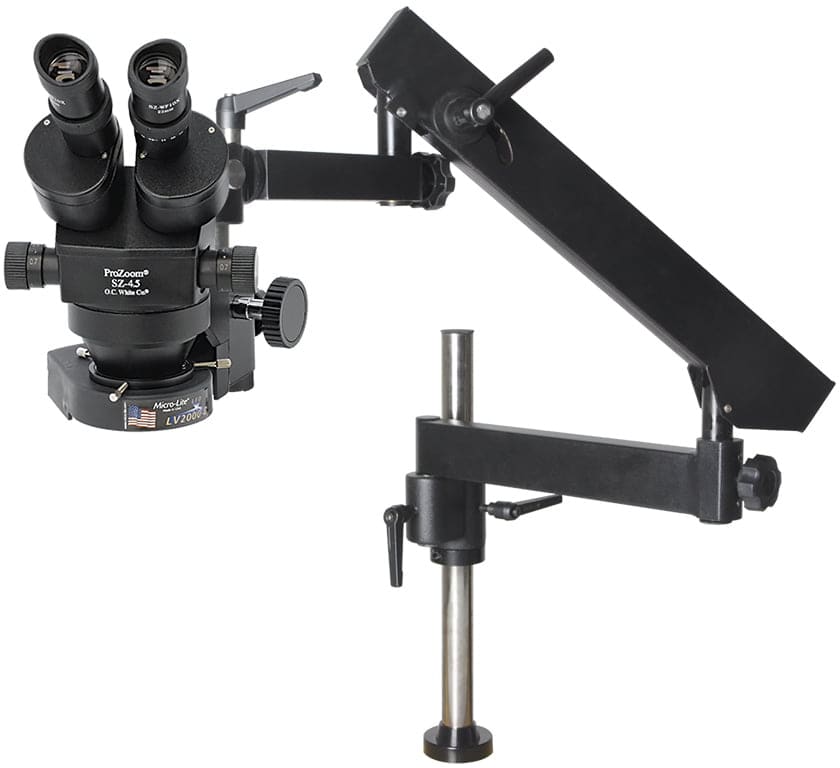

OC White TKPZE-FA-BL - ProZoom 4.5 Extended Working Distance Binocular Microscope with ML3000-BL

The OC White ProZoom PZE-4.5 extended working distance model is the new standard in production microscopy. With the largest standard working distance and eyepieces available, next level performance meets a budget-friendly price. It features a 7-45x standard magnification with a 118mm working distance, and a variety of optional optics available.

The ProZoom PZE 4.5 is ESD safe and ideal for use in mission critical inspection environments. Detented zoom stops are included standard on this model, which enable truly repeatable and documentable inspection results. It also features super-wide 28mm eyepieces for increased operator comfort over the duration of the workday.

ProZoom PZE 4.5 features include:

• Exclusive Detented Zoom Stops
• Super-Wide (28mm) 10x Eyepieces
• Articulating arm base
• Easy 360° main body rotation
• Standard Range 7-45x (up to 270X with optional parts, see the magnification chart below)
• 45° Eyetube inclination
• ±6 Diopter Adjustable eyepieces to correct individual eyesight variations
• ESD Safe Standard
• The base configuration does not include a light, but multiple options are available
• 5 Year Mechanical Warranty

Micro-Lite Fiberoptic 150 Watt Light Source with 3"×3" Back Light Stage

• Micro-Lite Fiberoptic 150 Watt Light Source
• IR Filter
• High Output 150w EKE Bulb (FL400)
• Standard 0.565" Bore Nosepiece
• 3"×3" Back Light Stage and Adapter
• ESD Safe and RoHS Compliant Standard

Optional objectives and eyepieces

With the addition of optional eyepieces and objectives, it is possible to alter both the magnification and working distance of the microscope. The table below shows an overview of performance for several combinations.

PROZOOM® PZE-4.5 TECHNICAL DATA
