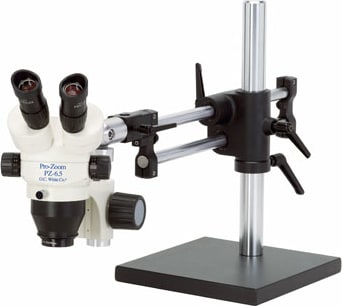

The OC White Pro Zoom 6.5 are professional grade, stereo microscopes. Available in binocular and trinocular formats, these products are constructed to be ESD safe, making them ideal for static sensitive environments.
The Pro Zoom 6.5 contains a zoom range of 1x to 6.5x, enabling users to easily adjust magnification with a knob on the unit’s side. This creates an overall magnification of 10x to 65x with the included 10x eyepieces, and is also easily expanded. The Pro Zoom 6.5 is compatible with several optional eyepieces and objectives, which create a much wider range of magnification and working distance. This makes the Pro Zoom 6.5 extremely versatile, allowing users to have multiple performance capacities with one device. Changing magnification will also affect field of view and working distance - by offering so many options, OC White makes the Pro Zoom something that customized to fit nearly any application.
Available optics:
- Eyepieces – 10x, 15x, 20x 25x, 30x
- Objectives – 0.5x, 0.7x, 1x, 2x
The Pro Zoom 6.5 uses all metal parts, and is ESD safe by construction. Unlike many imported microscopes which are built with plastic parts and low quality ESD coatings, the Pro Zoom will remain ESD for the life of the product. This is especially important in areas such as electronics manufacturing, where static discharge can easily destroy sensitive components.
OC White offers a variety of stands and illumination sources for use with this system. Mounting options include sturdy boom stands, as well as articulating arms. Articulating arms enable the microscope to be moved through a wide range of motion. Lighting sources include ring lights, as well as fiber optics. Many different color temperatures and bulb styles are available, including fluorescent, LED and halogen.
Pro Zoom 6.5 Performance Data
Eyepiece |
Objective |
Main body |
With 0.37X objective |
With 0.5X objective |
With 0.7X objective |
With 1.5X objective |
With 2X objective |
1X~6.5X |
0.37X~2.4X |
0.5X~3.3X |
0.7X~4.6X |
1.5X~9.8X |
2X~13X |
10X |
Total magnification |
10X~65X |
3.7X~24.1X |
5X~32.5X |
7X~46X |
15X~98X |
20X~130X |
Diameter of visual field(mm) |
Φ23~Φ3.5 |
Φ62.2~Φ9.6 |
Φ46~Φ7 |
Φ32.9~Φ5 |
Φ15.3~Φ2.3 |
Φ11.5~Φ1.8 |
15X |
Total magnification |
15X~97.5X |
5.55X~36.1X |
7.5X~48.8X |
10.5X~69X |
22.5X~147X |
30X~195X |
Diameter of visual field(mm) |
Φ17~Φ2.6 |
Φ45.9~Φ7.1 |
Φ34~Φ5.2 |
Φ24.3~Φ3.7 |
Φ11.3~Φ1.7 |
Φ8.5~Φ1.3 |
20X |
Total magnification |
20X~130X |
7.4X~48.1X |
10X~65X |
14X~92X |
30X~196X |
40X~260X |
Diameter of visual field(mm) |
Φ14~2.2 |
Φ37.8~Φ5.8 |
Φ28~Φ4.2 |
Φ20~Φ3.1 |
Φ9.3~Φ1.4 |
Φ7~Φ1.1 |
30X |
Total magnification |
30X~195X |
11.1X~72.2X |
15X~97.5X |
21X~138X |
45X~294X |
60X~390X |
Diameter of visual field(mm) |
Φ9~Φ1.4 |
Φ24.3~Φ3.7 |
Φ18~Φ2.7 |
Φ12.9~Φ2 |
Φ6~Φ0.9 |
Φ4.5~Φ0.7 |
Working distance(mm) |
110 |
275 |
195 |
145 |
58 |
35 |
