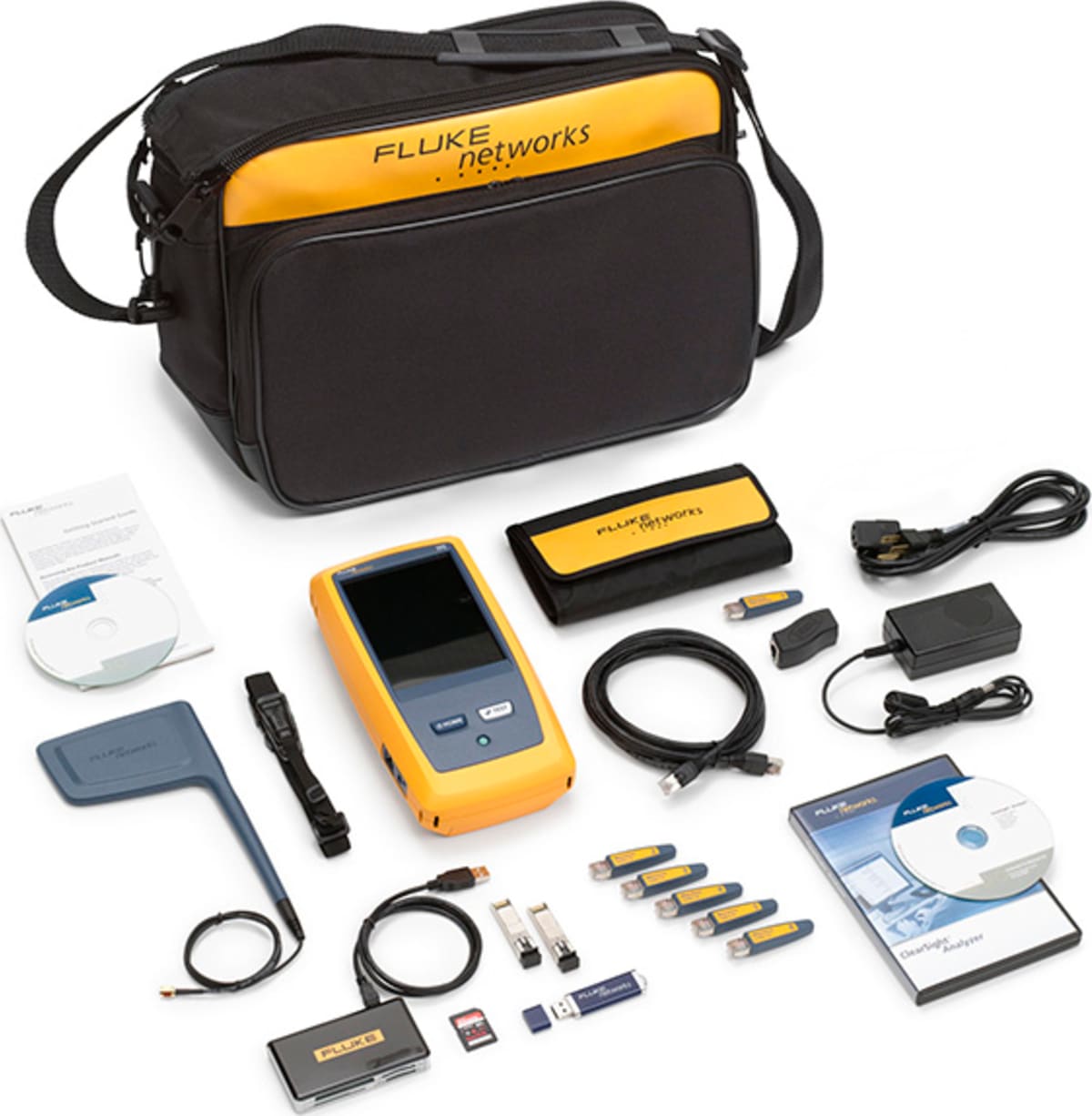

| General Specifications |
| Dimensions (with module and battery installed) |
10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm) |
| Weight (with module and battery installed) |
3.5 lb (1.6 kg) |
| Display |
5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels |
| AC adapter |
Input: 100-240 Vac, 50-60 Hz, 1.0 A
Output: +15 Vdc, 2.0 A |
| Battery type |
Lithium ion battery pack, 7.2 V |
| Battery life |
Approximately 3-4 hours depending on type of usage
4 hours to charge from 10% capacity to 90% capacity with the unit powered off |
| Memory |
Internal: 2 GB shared between system and user files
SD card: 4/8 GB, brand and model selected for optimal performance
USB 2.0 type A port: for use with USB mass storage devices |
| Network analysis ports |
Two RJ-45 10/100/1000BASE-T Ethernet
Two Small Form-factor Pluggable (SFP) 100BASE-FX/1000BASE-X Ethernet |
| Management port |
One RJ-45 10/100BASE-T Ethernet
One USB 802.11 (requires optional adapter)
|
| Supported network standards |
IEEE 10BASE-T, IEEE 100BASE-T, IEEE 1000BASE-T, IEEE 100BASE-FX, IEEE 1000BASE-X |
| RFCs and standard MIBs used |
1213, 1231, 1239, 1285, 1493, 1512, 1513, 1643, 1757, 1759, 2021, 2108, 2115, 2127, 2233, 2495, 2515, 2558, 2618, 2737, 2790, 2819, 3592, 3895, 3896, 4188, 4502. |
| Not for connection to telephone networks |
The OneTouch AT analyzer is NOT designed for connection to a telephone network.
The OneTouch AT analyzer is NOT designed for connection to an ISDN line.
Do not connect to a telephone network or ISDN line except through a regulatory agency compliant computer network modem device. |
| Wi-Fi connectivity |
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Data rate |
802.11a: 6/9/12/24/36/48/54 Mbps
802.11b: 1/2/5.5/11 Mbps
802.11g: 6/9/12/24/36/48/54 Mbps
802.11n (20 MHz): MCS0-23, up to 216 Mbps
802.11n (40 MHz): MCS0-23, up to 450 Mbps
802.11ac(80 MHz):MCS0NSS1-MCS9NSS3, up to 1.3 Gbps |
| Operating frequency |
2.412 ~ 2.484 GHz (Industrial Scientific Medical Band)
5.170 ~ 5.825 GHz |
| Security |
64/128-Bit WEP Key, WPA, WPA2, 802.1X
|
| Transmit output power1 (tolerance: ±2.0 dBm) |
802.11a: 16 dBm ± 2 dBm @ 54 Mbps
802.11b: 20 dBm ± 2 dBm @ 11 Mbps
802.11g: 17 dBm ± 2 dBm @ 54 Mbps
802.11gn HT20: 17 dBm ± 2 dBm @ MCS23
802.11gn HT40: 16 dBm ± 2 dBm @ MCS23
802.11an HT20: 15 dBm ± 2 dBm @ MCS23
802.11an HT40: 15 dBm ± 2 dBm @ MCS23
802.11ac VHT20: 13 dBm +/- 2 dBm @ MCS8NSS3
802.11ac VHT40: 13 dBm +/- 2 dBm @ MCS9NSS3
802.11ac VHT80: 11 dBm +/- 2 dBm @ MCS9NSS3 |
| Receive sensitivity (tolerance: ±2 dBm) |
802.11b : -88dBm@11Mbps
802.11g : -74dBm@54Mbps
802.11gn : -69dBm@HT20,MCS23
802.11gn : -67dBm@HT40,MCS23
802.11a : -73dBm@54Mbps
802.11an : -68dBm@HT20,MCS23
802.11an : -66dBm@HT40,MCS23
802.11ac : -64dBm@VHT20, MCS8NSS3
802.11ac : -63dBm@VHT40, MCS9NSS3
802.11ac : -60dBm@VHT80, MCS9NSS3 |
| 1. The maximum power setting will vary by channel and according to individual country regulations. |
| Internal Wi-Fi antennas |
Three internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3x3 MIMO technology |
| >External directional antenna |
Antenna, frequency range 2.4 - 2.5 and 4.9 - 5.9 GHz.
Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band. |
| External antenna connector (external antenna port is receive-only, no transmit) |
Reverse SMA |
| Operating temperature |
32°F to 122°F (0°C to 50°C) |
| Battery charging temperature |
32°F to 104°F (0°C to 40°C) |
| Operating relative humidity (% RH without condensation) |
5% to 45% at 32°F to 122°F (0°C to 50°C)
5% to 75% at 32°F to 104°F (0°C to 40°C)
5% to 95% at 32°F to 86°F (0°C to 30°C) |
| Shock and vibration |
Meets the requirements of MIL-PRF-28800F for Class 3 Equipment |
| Safety |
CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001 |
| Operating altitude |
13,123 ft (4,000 m), 10,500 ft (3,200 m) with ac adapter |
| Storage altitude |
39,370 ft (12,000 m) |
| Pollution degree |
2 |
| EMC |
EN 61326-1:2006 |
| Cable types |
100 Ω Unshielded Twisted Pair (UTP) LAN cables.
100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables.
TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E and F. |
| Cable length measurement |
Measurable cable lengths are from 3 feet (1 meter) to 656 feet (200 meters).
Accuracy: ± 6 feet (± 2 meters) or 5%, whichever is greater.
Length measurement is based on Nominal Velocity of Propagation (NVP) for CAT 5e cable. |
| Wired |
Speed, duplex, PoE, 802.1X, IPv4 address, IPv6 address, MAC address (port A can be changed by the user), VLAN, Wait for Rx Frame, Enabled Wired |
| Wi-Fi |
Band (2.4 and/or 5 GHz), authorization default, scan or connect, SSID, security, IPv4 address, IPv6 address, MAC address (Wi-Fi adapter can be changed by the user), Transmit Probes, Enable Wi-Fi, signal adjustment, noise floor adjustment |
| Analysis |
SNMP v1/v2, SNMP v3, Slow Discovery |
| Trending |
Use (wired port, Wi-Fi port, management port), duration (2 minutes to 1 week),interval (1, 2, 5, 10, 30, 60 minutes), proxy (off/on) |
| Claim Unit |
Claim, proxy (off/on) |
| Unit Name |
Text string |
| Cloud Remote |
On/Off |
| Management port |
User and password security, Active Port (Wired/Wi-Fi), wired port configuration, Wi-Fi port configuration |
| Language (user interface) |
Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish |
| Date/time, number, length |
Select format |
| Timeout period |
Backlight time, power down time |
| Audible tone |
On, off |
| Display |
Brightness |
| Factory defaults restore |
Quick, full (complete internal storage overwrite) |
| Version Information |
Module, platform |
| Product Registration |
Registered, Gold Support |
| Update Software |
Select Source |
| Options |
Enter product key |
| Export logs |
Export to SD card |
| Receive Rx optical power measurement |
accuracy varies by transceiver, typically ± 3.0 dB |
| Power over Ethernet (PoE) |
Single ended testing:
- User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation
- The following PSE PoE parameters are measured:
- Received class
- PSE type
- Unloaded voltage(V)
- Pairs used
- Loaded voltage(V)
- Loaded power(W)
Inline testing between PSE and PD devices:
- PoE Negotiation between PSE and PD
- The following PoE parameters are measured:
- Pairs used
- Voltage(V)
- Current(mA)
- Power(W)
|
| Infrastructure |
Cable, link, PoE, nearest switch, nearest AP, DHCP server, DNS server, gateway |
| Wired Analysis |
hosts, access devices, servers, tools (port scan, add test, path analysis, multiport statistics,devices on port, browse, TELNET/SSH), sorts |
| Discovery protocols supported |
SNMP v1/v2/v3, CDP, EDP, LLDP, ICMP, ARP, FDP |
| Wi-Fi Analysis |
networks, access points, clients, channels, tools (name, authorization, connect, locate, capture), sorts, show active |

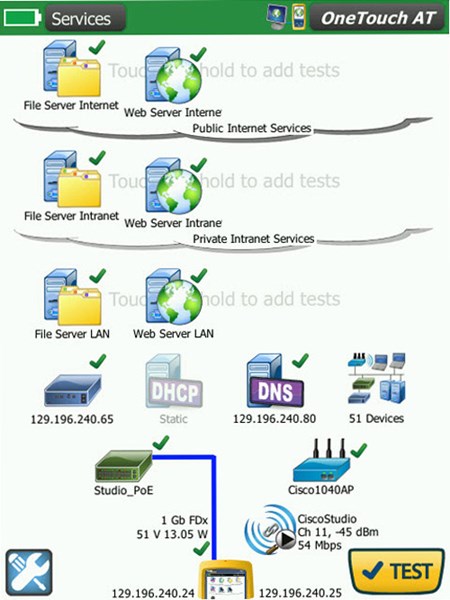

| Services |
Ping (ICMP), connect (TCP), web (HTTP), file (FTP), multicast (IGMP), video (RTSP), email (SMTP) |
| Wired Performance (local to remote) |
- Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results)
- Compatible peer: OneTouch AT
- Compatible reflector: LinkRunner Duo/Pro/AT
- Rate: up to 1 Gbps
- Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50
- Duration: 1 s, 2 s, 5 s, 10s , 30 s, 1 m, 2 m, 5 m, 1 h, 6 h, 12 h, 24 h
- Frame size (byte): 64, 128, 256, 512, 1024, 1280, 1518, RFC 2544 sweep
- DSCP: user defined
- Port: user defined
- Results: actual rate (bps), frames sent, received, lost, latency, jitter
- Result presentation: table, graph
|
| Wi-Fi Performance (local to remote) |
- Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results), wired port of the same OneTouch (upstream and downstream results)
- Compatible peer: OneTouch AT
- Compatible reflector: LinkRunner Duo/Pro/AT
- Rate peer/reflector: up to 500 Mbps
- Rate This OneTouch: up to 100 Mbps
- Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50
- Duration: 1 s, 2 s, 5 s, 10s , 30 s, 60 s
- Frame size (byte): 128 to 1518
- DSCP: user defined
- Port: user defined
- Results: target rate (bps), frames sent, received, lost, loss, actual rate (bps), latency, jitter, out of sequence, ping response, return code, Wi-Fi layer 2 statistics, Wi-Fi layer 1 statistics
|
| Capture, Wired |
- Connection: Port A, Ports A and B, Inline
- Filters: MAC, VLAN, IP, Port, IPv6
- File size (MB): 1, 10, 100, 250, 500, 1000, 2000
- Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600
- AutoTest: off, on
|
| Capture, Wi-Fi |
- Connection: Wi-Fi
- Filters: channel, channel mode, device, frame type
- File size (MB): 1, 10, 100, 250, 500, 1000, 2000
- Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600
- File format: ClearSight Analyzer, AirMagnet, WireShark, Qualcomm,pcap
- AutoTest: off, on
|
| VoIP Analysis |
- Inline call analysis
- Protocols: unencrypted SIP and SCCP
- Traffic statistics monitoring
- Call log of protocol and conversation events
- Call quality measurements (packets, dropped, burst, jitter, MOS, R-factor)
- PoE measurements
|
| Performance Peer |
Port number, enable Autostart |
| Browser |
port (management/wired/Wi-Fi) |
| Telnet/SSH |
Username/password (for SSH) |
| Toner |
IntelliTone™, analog 400 Hz, analog 1 kHz |
| Flash switch port |
1s, 2s, 3s |
| FiberInspector™/Webcam |
real time, pause, scale (for fiber), save |
| Profiles |
Save, delete, rename, export, import, load |
| AP authorization |
Save, delete, rename, export, import, load |
| Reports |
Save, delete, rename, export, import, view |
| Screens |
Save, delete, rename, export, import, view |
| Conformite Europeene. Conforms to the requirements of the European Union and the European Free Trade Association (EFTA). |
| Listed by the Canadian Standards Association. |
| Conforms to relevant Australian standards. |
