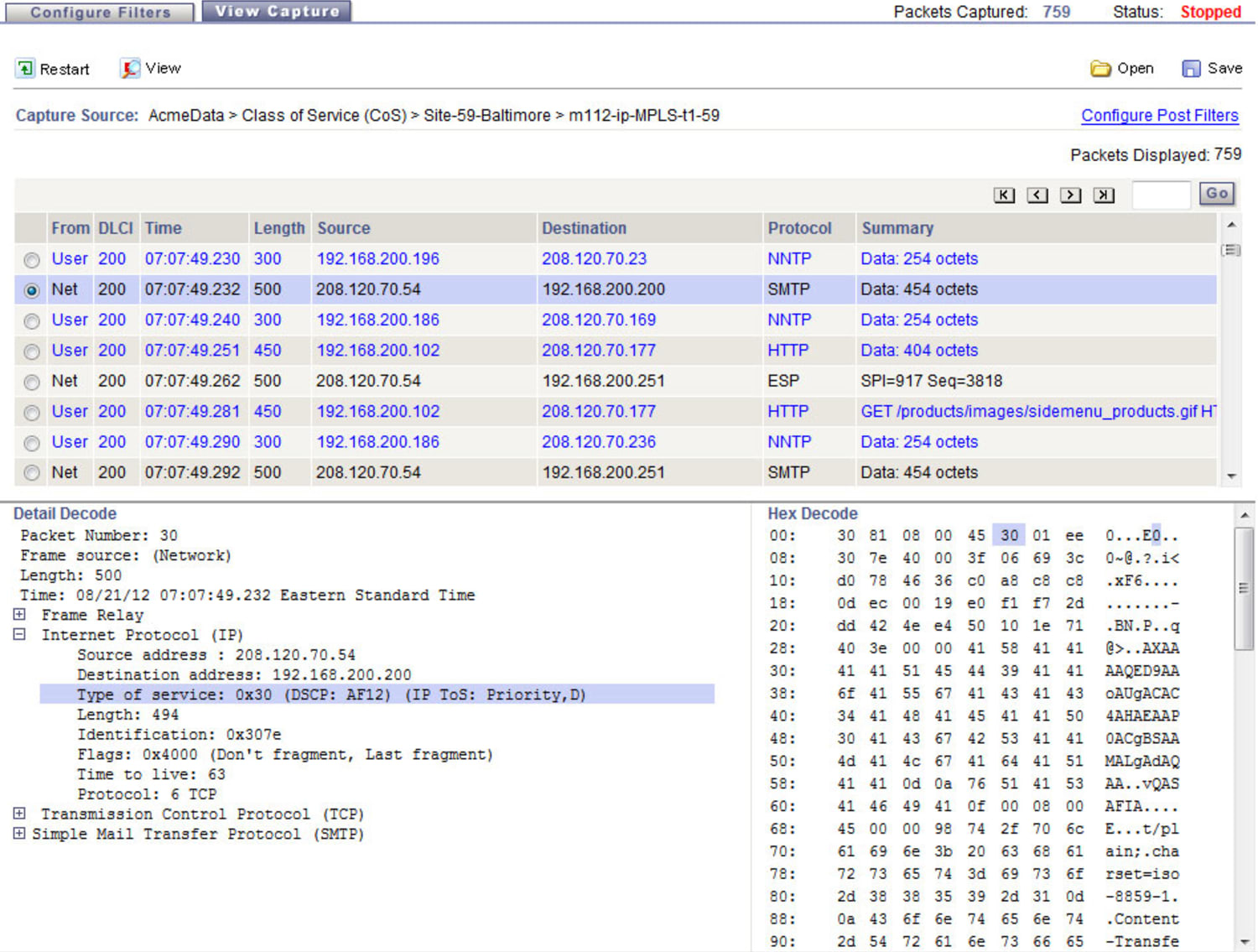

NetScout 01613 Select Traffic Capture License
Protocol analysis tracking at every location

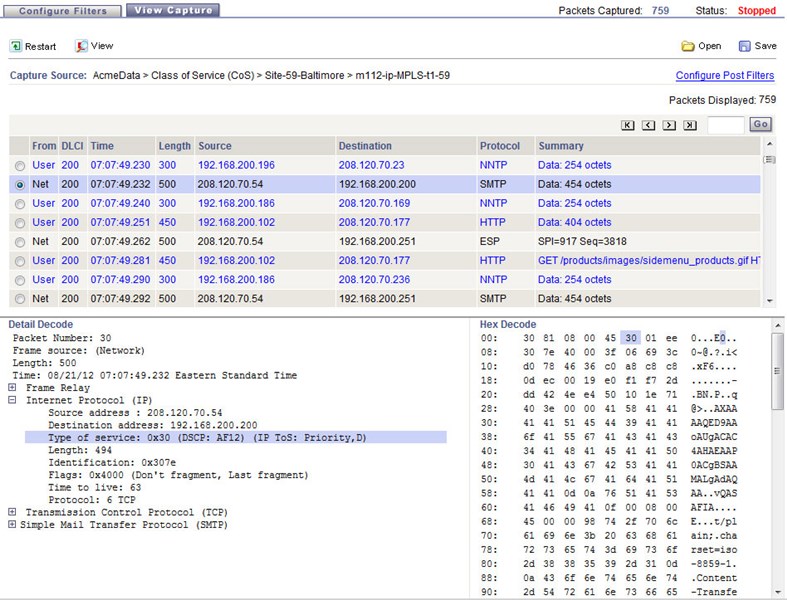

Get to the source of difficult problems. The TruView Branch Probe Traffic Capture™ software module gives you a full-function protocol analyzer at every location in your network. Trace, filter and decode the most common network protocols and gain in-depth visibility into subtle problems such as protocol violations, incorrect configurations and timeouts.
In addition to protocol decoding, Select Traffic Capture is available for every TruView Branch Probe in your network with the point and click of a mouse.
Get the detail you need - securely
Select Traffic Capture details decodes on all layers of the protocol stack - exploding the protocol headers – but skips the packet payload to enhance security. Each protocol header is broken out in its own layer with plain English decodes of protocol flows.
Manage most every protocol
The system supports more than 90 of the most common protocols, including voice over IP (VoIP) protocols such as SIP and H.323, and multiple LMI signaling protocol variants. You can also decode both frame relay and ATM-based packet streams.
Save time with precapture filtering
Determine exactly which packets to capture and which to ignore based on criteria you set to get directly to problem symptoms without flooding the screen with irrelevant packets. Filter packets to and from specific DLCIs, IP addresses or subnets. Track specific TCP or UDP ports and other aspects across the protocol header at multiple layers. Apply multiple simultaneous filters with flexible bit-level logic to look for multiple trigger events.
Address trouble with post - capture filtering
When a problem’s cause isn’t clear, run the trace without filters. Then zoom in on the problem by filtering captured packets and displaying them according to criteria you set based on your hypothesis of the problem’s cause.
Once you’ve captured the traffic trace, you can store it in a common format, like .cap, .HTML, and .pkt, for further analysis or for consolidation with traces from other analyzers.
Portable analyzer functionality at remote sites
More enterprises have protocol analyzers at a headquarters locations, but do not have the same tools available for remote sites because of the cost of deployment and the lack of IT staff at these locations.
Select Traffic Capture does packet capture and protocol decode at every site in your network – all with a point and click of a mouse. Now you can rapidly identify the source of sudden traffic bursts that are negatively impacting a small circuit at a remote location, or you can identify which users might be infected with a virus.
For global enterprises, a language barrier and non-integrated tool sets can compound problems. Select Traffic Capture also delivers identical views of performance for both domestic and international locations.
The Details
Branch Traffic Capture Part Number 2666419 Traffic capture is available on all TruView Branch probes. The quantity purchased must be equal to the number of probes installed. It is not available on a per probe basis.
| |
Advanced MPLS Package (SKU 01654) |
Advance MPLS with Application Integrity (SKU 01849) |
Advanced MPLS with VoIP Integrity (SKU 01923) |
OmniPoint Element (SKU 02224) |
OmniPoint Element & VoIP (SKU 02226) |
| Service Summary included |
✓ |
✓ |
✓ |
✓ |
✓ |
| Network Troubleshooting (SKU 01611) |
✓ |
✓ |
✓ |
✓ |
✓ |
| Back in Time (SKU 01612) |
✓ |
✓ |
✓ |
✓ |
✓ |
| Class of Service (SKU 01614) |
✓ |
✓ |
✓ |
✓ |
✓ |
| AppFlows (SKU 01837) |
✓ |
✓ |
✓ |
✓ |
✓ |
| AppSummary* (SKU 01838) |
|
✓ |
✓ |
✓ |
✓ |
| Traffic Capture (optional) (SKU 01613) |
|
✓ |
✓ |
✓ |
✓ |
| VoIP** (SKU 01920) |
|
|
✓ |
|
✓ |
*AppsIntegrity is the combination of AppFlows and AppSummary. AppSummary requires AppFlows.
**VoIP software module with OmniPoint only available on Analysis Service Elements
What is TruView and Visual Performance Manager?
TruView and Visual Performance Manager are flexible solutions that can scale to help the largest enterprises, carriers and managed service providers decrease the cost of performance management, increase revenue, and optimize utilization of existing assets. This is accomplished by enabling IT organizations to become a source of competitive advantage, not a cost center, by providing actionable visibility into a centralized integration point for managing applications, VoIP network and server performance across a complete network.
Software Maintenance
Each hardware ASE is managed remotely by the TruView or Visual Performance Manager. Maintenance is dependent on the software module purchased. For more detailed maintenance information, visit Inside Sales at the number below.
Professional Services
Professional services are available for installing, maintaining and customizing your solution your ASE hardware and TruView and Visual Performance Manager solution. For more detailed professional services information, visit www.netscout.com/professionalservices.
