• 0-100 Amp Range
• Industry Standard Outputs
  • 0–5 or 0–10 VDC proportional to the DC current
  • Compatible with most automation systems.

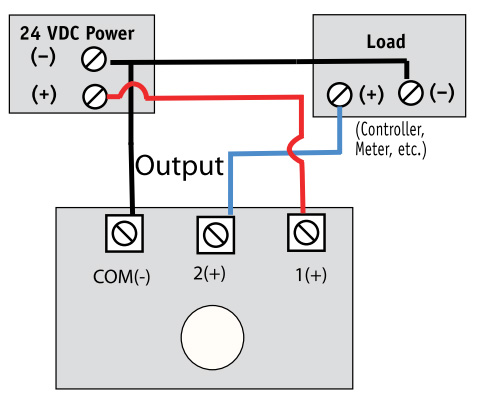

• 24 VDC Powered - Supply and Output share common.
• No span or zero adjustments needed
  • Reduces field calibration errors.
  • Factory calibrated without potentiometers.

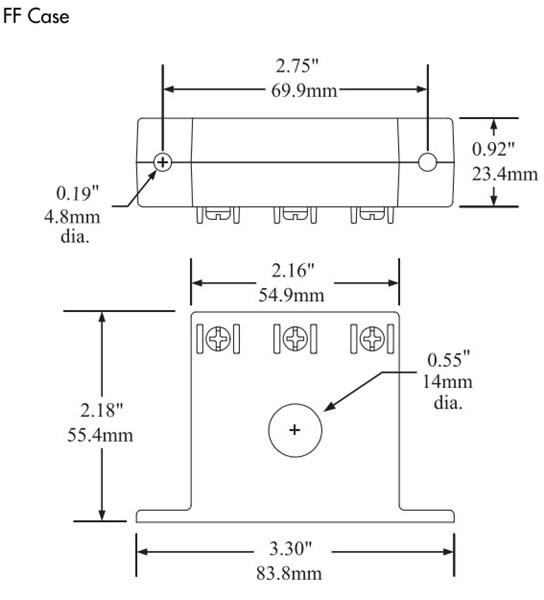

• Solid Case - Compact size requiring very little panel space.
• Built-in Mounting Feet - Simple, two-screw panel mount or attach with optional DIN rail brackets.
• Designed to Meet UL, CUL and CE Approval - Accepted worldwide.

Applications:

• Photovoltaic Panel Monitoring - Accurate and reliable indication of how much power is produced by a single panel or a string of panels.
• Hoists
  • Detect overloads, jams.
  • Detect under current conditions from coupling slip or breakage.
• DC Motor Protection - Detect imminent bearing failures.
• Wind Driven Generators - Measure and monitor power production from alternative sources.
