NK DT7-out-ppp-U-DL Current Transducer

0 reviews | Model: NK DT7-out-ppp-U-DL

Compare

0-750 Amp Range, 24 VAC/VDC or 120 VAC Powered

0-750 Amp Range
Factory Set and Calibrated Ranges:
- No need for field calibration.
- Eliminates zero and span pots.
Isolation:
- Output is magnetically isolated from the input for safety.
- Eliminates insertion losses, no added burden.
Internal Power Regulation:
- Works well, even with unregulated power.
- Cuts installation cost.
DIN Rail Mounted Case:
- Makes installation a snap.
- No drilling or screws to lose.
- Optional DIN Rail kit available for chassis mounting.

DC Current Transducer Applications

Battery Banks:
- Monitor load and charging currents.
- Verify operation.
Transportation:
- Measure traction power or auxiliary loads.
Wind and Solar Generated Power:
- Measure the current produced or consumed.
- Detect mechanical problems before failure occurs.
Monitor DC Powered Motors:
- Monitor current of cranes, saws, sorters and positioning equipment.

View Product Details

List Price: $320.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

DT Series Large Aperture DC Current Transducers

DT Series, Large Aperture DC Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 1200 A. The DT Series, Large Aperture Transducers have factory set and calibrated ranges, industry standard 4–20 mA, 0–5 VDC or 0–10 VDC outputs., and are available in solid-core DIN rail mounted case.

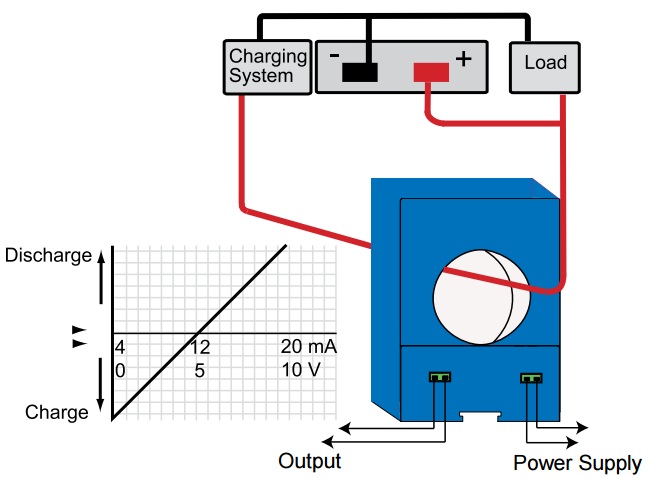

Battery Charging System

battery_charging_system

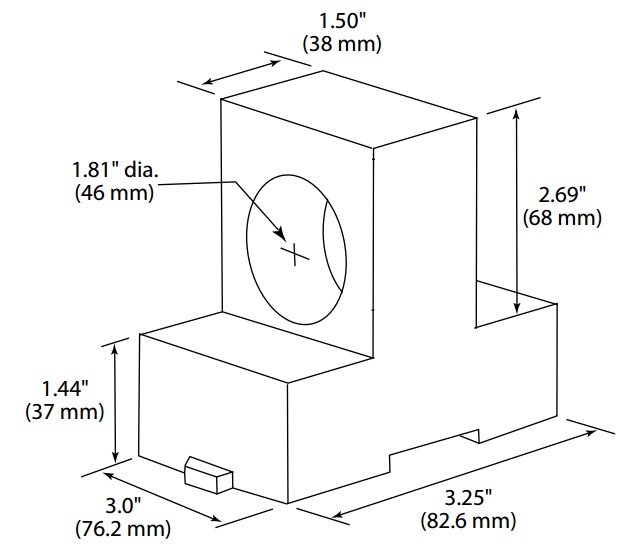

DC Current Transducer Dimensions

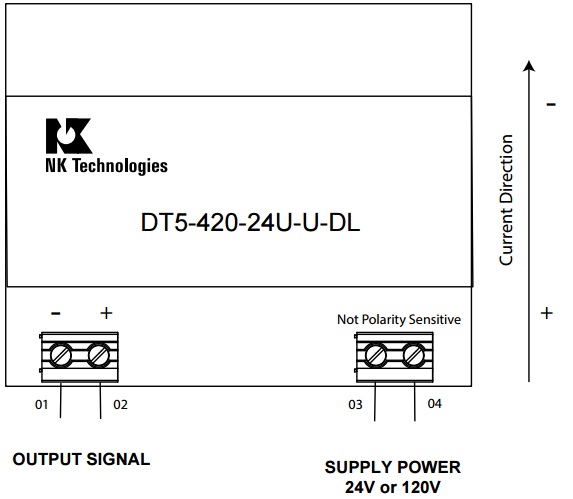

DC Current Transducer Connections

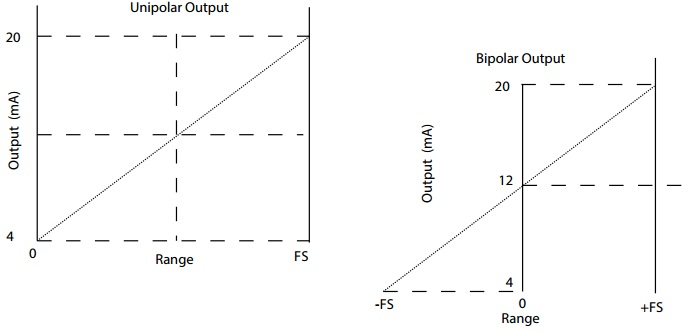

DC Current Transducer Output Type

Notes:
Deadfront captive screw terminals.
12–22 AWG solid or stranded.
Observe polarity.
Unipolar Output: Signal With Current flowing in one direction only.

Output Signal	4–20 mA, 0–5 VDC, 0–10 VDC
Output Limit	4–20 mA: 23 mA 0–5 VDC: 5.75 VDC 0–10 VDC: 11.5 VDC
Accuracy	2% FS
Repeatability	1.0% FS
Response Time	100 ms (to 90% of step change)
Frequency Range	DC
Power Supply	24 VAC/DC, isolated from output 120 VAC
Power Consumption	2 VA
Loading	4–20 mA: 650 Ω max. 0–5 VDC: 25 KΩ min. 0–10 VDC: 50 KΩ min.
Isolation Voltage	3 KV (monitored line to output)
Linearity	0.75% FS
Current Ranges	Ranges from 0–1200 A DC
Sensing Aperture	1.875” (46 mm) dia.
Case	UL94 V0 Flammability Rated
Environmental	-4 to 122°F (-20 to 50°C) 0–95% RH, non-condensing
Listings	UL 508 Industrial Control Equipment, CE (pending)

Tech Specs

Current Sensors/Current Transducers Template
Maximum Current	750 A
Adjustable Output	Yes
Accuracy	2% FS
Response Time	100 MILISECONDS (0.1 s)
Power Supply (Current Sensor)	VAC/DC
Test Equipment General Attributes
Unique Features	0-750 Amp Range 24 VAC/VDC or 120 VAC Powered
Warranty	5 YEARS
Safety Approval	RoHS, UL
Country of Origin	United States
