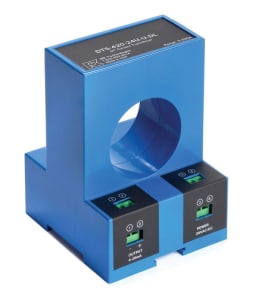

NK DT5-420-24U-BP-DL Large Aperture DC Current Transducers

• No need for field calibration
• Eliminates zero and span pots
• Output is magnetically isolated from the input for safety
• Eliminates insertion losses, no added burden
• Works well, even with unregulated power
• Cuts installation cost
• Makes installation a snap

DT Series, Large Aperture DC Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 1200 A. The DT Series Large Aperture Transducers have factory set and calibrated ranges, industry standard 4–20 mA, 0–5 VDC or 0–10 VDC outputs, and are available in solid-core DIN rail mounting case.

DC Current Transducer Applications

Battery Banks

• Monitor load and charging currents.
• Verify operation.

Transportation

• Measure traction power or auxiliary loads

  .

Wind and Solar Generated Power

• Measure the current produced or consumed.
• Detect mechanical problems before failure occurs.

Monitor DC Powered Motors

• Monitor current of cranes, saws, sorters and positioning equipment.

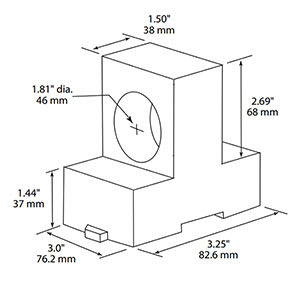

DC Current Transducer Dimensions
