NK DT1-010-120-U-FL DT Series DC Current Transducers, Unipolar Output

5 (1 Review) | UPC: 817524011647 | Model: NK DT1-010-120-U-FL

Compare

0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered

Single Range or Three Jumper
Selectable Ranges
- Reduces set-up time
- Reduces inventory
- Eliminates zero and span pots
Isolation
- Output is magnetically isolated from the input for safety
- Eliminates insertion loss (voltage drop)
Internal Power Regulation
- Works well, even with unregulated power
- Cuts installation cost
Split-core Design/Built-in Mounting Brackets
- Makes installation a snap

Applications:

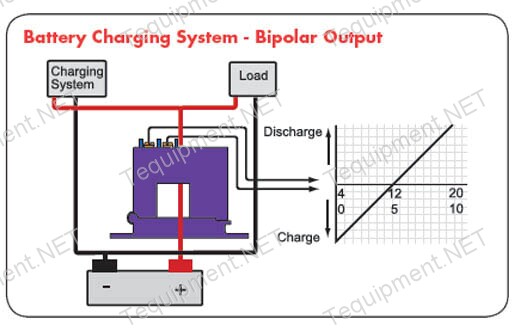

Battery Banks
- Monitors load current
- Monitors charging current
- Verifies operation
Transportation
- Measures traction power or auxiliary loads
Electric Heating Elements
- Monitors heater loads
- Faster response than temperature sensors

View Product Details

List Price: $220.00

Your Price: $195.80

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	NK DT1-010-120-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-420-24U-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered ...	NK DT1-005-24U-U-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT2-420-24U-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-420-24U-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered & ...	NK DT2-005-24U-U-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT3-005-24U-U-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT4-005-24U-U-SP 0-200, 0-300 and 0-400 Amp Ranges, 24 VAC/VDC Powered	NK DT0-420-24U-U-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered &nb ...	NK DT2-420-24U-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-420-24U-U-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT3-010-24U-U-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT1-010-24U-U-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT3-420-24U-U-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT4-420-24U-U-SP 0-200, 0-300 and 0-400 Amp Ranges, 24 VAC/VDC Powered	NK DT2-010-24U-U-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT4-010-24U-BP-SP 0-200, 0-300 and 0-400 Amp Ranges, 24 VAC/VDC Powered	NK DT1-420-24U-BP-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT0-010-24U-BP-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT0-005-24U-U-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-020-120-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-010-24U-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-020-120-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-020-24U-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-010-120-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-420-120-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-010-24U-BP-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT0-005-24U-BP-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT0-010-24U-U-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-020-24U-U-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT1-020-120-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-005-24U-BP-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT1-005-120-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-010-24U-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-420-24U-BP-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT2-005-24U-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-010-24U-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-020-24U-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT3-420-24U-BP-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT2-020-24U-U-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT1-010-24U-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT3-020-24U-U-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT2-020-120-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-005-24U-BP-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered	NK DT3-005-24U-BP-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT2-005-120-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-420-120-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-005-24U-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT0-020-24U-U-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-020-24U-U-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-020-24U-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-005-120-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT4-005-24U-BP-SP 0-200, 0-300 and 0-400 Amp Ranges, 24 VAC/VDC Powered	NK DT2-010-120-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered ...	NK DT0-020-24U-BP-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-005-24U-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT0-420-24U-BP-FL 0-5, 0-10 and 0-20 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-420-24U-U-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT4-010-24U-U-SP 0-200, 0-300 and 0-400 Amp Ranges, 24 VAC/VDC Powered	NK DT2-420-120-BP-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT1-005-120-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT3-010-24U-BP-SP 0-150, 0-225 and 0-300 Amp Ranges, 24 VAC/VDC Powered	NK DT2-005-24U-U-FL 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT2-010-24U-BP-SP 0-100, 0-150 and 0-200 Amp Ranges, 24 VAC/VDC Powered	NK DT1-420-120-BP-FL 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered	NK DT8-420-24U-U-DL 0-1000 Amp Range, 24 VAC/VDC or 120 VAC Powered
Price
In Stock
Maximum Current	100 A	100 A	100 A	200 A	100 A	200 A	300 A	400 A	20 A	200 A	100 A	300 A	100 A	300 A	400 A	200 A	400 A	100 A	20 A	20 A	100 A	200 A	200 A	200 A	100 A	100 A	100 A	20 A	20 A	100 A	100 A	200 A	100 A	200 A	200 A	200 A	100 A	200 A	300 A	200 A	100 A	300 A	200 A	100 A	300 A	200 A	200 A	100 A		100 A	100 A	200 A	400 A	200 A	20 A	100 A	20 A	200 A	400 A	200 A	100 A	300 A	200 A	200 A	100 A
Adjustable Output	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No		No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No		No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Accuracy	2% FS	2% FS	1% FS	2% FS	2% FS	1% FS	1% FS	1% FS	2% FS	2% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	1% FS	2% FS	2% FS	2% FS	2% FS	2% FS	2% FS	2% FS	2% FS	1% FS	2% FS	2% FS	1% FS	2% FS	1% FS	2% FS	2% FS	1% FS	2% FS	2% FS	2% FS	1% FS	1% FS	2% FS	1% FS	2% FS	1% FS	1% FS	2% FS	2% FS	1% FS		2% FS	2% FS	2% FS	1% FS	2% FS	2% FS	2% FS	2% FS	1% FS	1% FS	2% FS	2% FS	1% FS	2% FS	1% FS	2% FS
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

ADT Series Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 400A. The DT unipolar and bipolar models have jumper selectable current input ranges and industry standard 0–20mA, 4–20mA, 0–5VDC or 0–10VDC outputs. Available in split-core or solid-core enclosures.

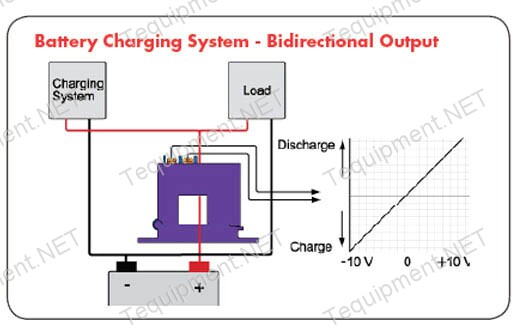

DT Bidirectional Output models produce a +10 VDC signal with current through the aperture in one direction, and -10 VDC with current passing in the reverse direction. Split-core enclosures only

Designed to provide an analog current reading for monitoring, data logging and panel meter applications, these transducers offer a choice of 0–5VDC, 0–10VDC or 4–20mA average responding or True RMS outputs. Self-powered and split-core options make these a cost-effective choice as a PLC input in motor status applications or where VFDs are involved.

Dimensions

Click images to enlarge

Connections

Click images to enlarge

Unipolar and Bipolar Output	Bidirectional Output
Notes: Deadfront captive screw terminals. 12-22 AWG solid or stranded. Observe polarity.

General Specifications
Output Signal	0–20mA, 4–20mA, 0–5VDC, 0–10VDC +/-10VDC (Bidirectional models only)
Output Limit	0–20mA,4–20mA: 23mA 0–5VDC: 5.75VDC 0–10VDC: 11.5VDC
Accuracy	Solid-core: 1% FS Split-core: 2% FS
Repeatability	1.0% FS
Response Time	Solid-core: 20ms (to 90% of step change) Split-core: 100ms (to 90% of step change)
Frequency Range	DC
Power Supply	120VAC 24VAC/DC, 2VA max.
Power Consumption	2VA
Loading	0-20mA, 4-20mA: 500 max 0–5VDC: 25kO min. 0–10VDC: 50kO min.
Isolation Voltage	3KV (monitored line to output)
Linearity	0.75% FS
Current Ranges	Field Selectable Ranges from 0–400A Factory Set Ranges from 0-400A (Bidirectional Models only)
Sensing Aperture	FL Case: 0.75” (19.1mm) diameter SP Case: 0.85” (21.6mm) sq.
Case	UL94 V0 Flammability Rated
Environmental	-4 to 122oF (-20 to 50oC) 0–95% RH, non-condensing
Listings	UL 508 Industrial Control Equipment (USA & Canada), CE
