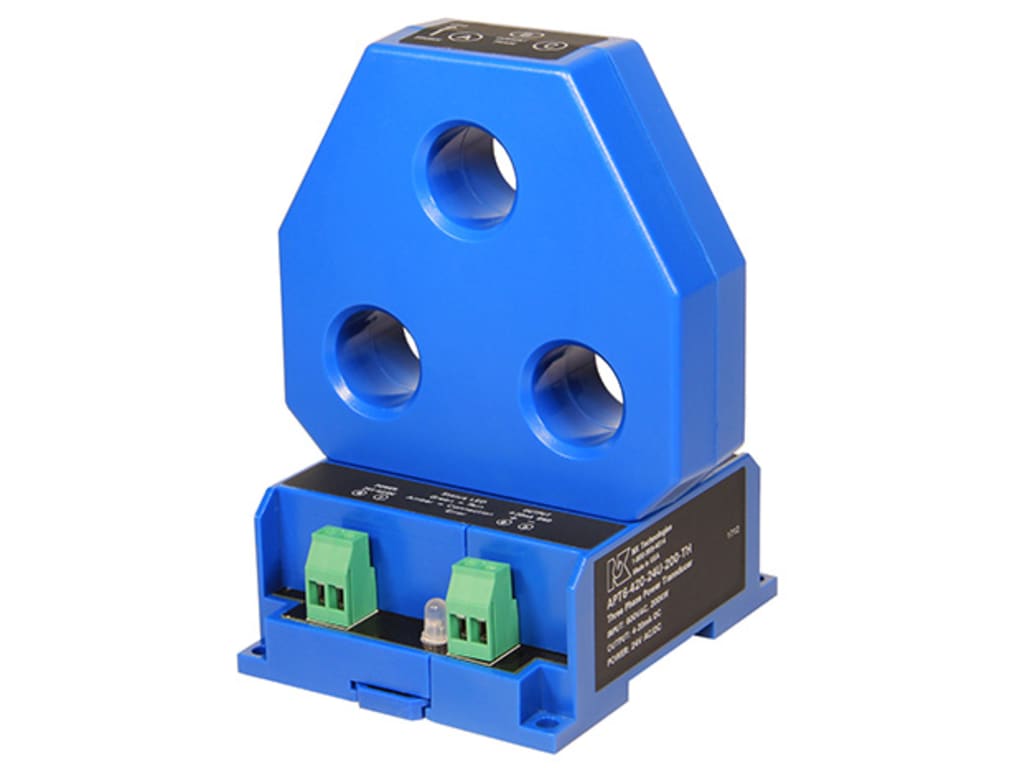

NK APT1-420-24U-50.0 - APT-TH Three-Hole Power Transducer

0 reviews | Model: NK APT1-420-24U-50.0-TH

Compare

APT-TH Three-Hole Power Transducer

Choose 4–20 mA, 0–5 VDC
Compatible with most automation systems
Improves reliability when used in conditions where power interruptions and voltage sags are common
Clearly labeled terminals provide quick installation
Low profile reduces cabinet depth requirements

View Product Details

List Price: $674.00

Your Price: $599.86

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	NK APT1-420-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT1-005-24U-0.50-TH TH Power Transducer	NK APT1-005-24U-0.75-TH TH Power Transducer	NK APT1-005-24U-1.00-TH TH Power Transducer	NK APT1-005-24U-10.0-TH TH Power Transducer	NK APT1-005-24U-15.0-TH TH Power Transducer	NK APT1-005-24U-2.00-TH TH Power Transducer	NK APT1-005-24U-20.0-TH TH Power Transducer	NK APT1-005-24U-40.0-TH TH Power Transducer	NK APT1-005-24U-5.00-TH TH Power Transducer	NK APT1-005-24U-50.0-TH TH Three-hole Power Transducer	NK APT1-005-24U-60.0-TH TH Three-hole Power Transducer	NK APT1-005-24U-7.50-TH TH Power Transducer	NK APT1-005-24U-75.0-TH TH Power Transducer	NK APT1-420-24U-0.50-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-0.75-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-1.00-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT1-420-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-0.50-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-0.75-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-1.00-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT2-005-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-0.50-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-0.75-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-1.00-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT2-420-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-1.00-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-2.00-TH 600 V 3-Phase, 0-5 VDC, 24 VAC/DC, 2.0 Three-hole, Solid-core	NK APT4-005-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-1.00-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-100-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-150-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT4-005-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-100-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-150-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT4-420-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-150-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-100-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-200-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT6-005-24U-75.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-10.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-15.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-100-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-150-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-2.00-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-20.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-5.00-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-40.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-50.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-7.50-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-60.0-TH APT-TH Three-Hole Power Transducer	NK APT6-420-24U-75.0-TH APT-TH Three-Hole Power Transducer
Price
In Stock
Type of Circuit Measured	Three Phase														Three Phase	Three Phase	Three Phase	Three Phase	Three Phase			Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase		Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase		Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase
Maximum Voltage	600 V														600 V		600 V	600 V	600 V			600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V		600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V		600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V		600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
Process Input	Yes														Yes	Yes	Yes	Yes	Yes			Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes		Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

NK APT1-420-24U-50.0-TH Accessories

Choose a Category

Electrical Parts
General Accessories

for the NK APT1-420-24U-50.0-TH

NK DINKIT Slotted DIN Rail, 2 end stops

Catalog: DINKIT

(0)

In Stock!

Add to Cart

NK DIN-2 DIN Rail Adapters, 2 clips and 2 screws

Catalog: DIN-2

(0)

In Stock!

Add to Cart

NK APT1-420-24U-50.0

Choose 4–20 mA, 0–5 VDC
Compatible with most automation systems
Improves reliability when used in conditions where power interruptions and voltage sags are common
Clearly labeled terminals provide quick installation
Low profile reduces cabinet depth requirements
Safe and secure connectors

APT-TH Three-Hole Power Transducer

APT-TH Power Transducers measure three phases of current and voltage, and produce an industry standard analog signal proportional to the watts used. The monitor uses internal current transformers to measure the amperes, and the line voltage connects directly to the transducer, up to 600 VAC. The APT-TH will produce an accurate output signal to help you identify areas of excessive energy consumption and allow intervention to reduce demand.

General Specifications
Power Supply	24 VAC or DC
Power Consumption	<4 VA
Primary Voltage Input	208, 240, 480, 600 VAC
Output	4–20 mA 0–5 VDC
Response Time	500 ms (10–90% step change)
Accuracy	+/-1% FS
Frequency Range	40–100 Hz
Mounting	DIN rail or panel mounting
Case	UL94 V-0 Flammability Rated
Environmental	-4 to 122°F (-20 to 50°C) 0–95% RH, non-condensing
Listings	Designed to meet UL, cUL and CE
Model Information
	APT1 (208V)	APT2 (240V)	APT4 (480V)	APT6 (600V)
0.5 kW	*	*	NA	NA
0.75 kW	*	*	NA	NA
1.00 kW	*	*	*	NA
2.00 kW	*	*	*	*
5.00 kW	*	*	*	*
7.50 kW	*	*	*	*
10.0 kW	*	*	*	*
15.0 kW	*	*	*	*
20.0 kW	*	*	*	*
40.0 kW	*	*	*	*
50.0 kW	*	*	*	*
60.0 kW	*	*	*	*
75.0 kW	*	*	*	*
100 kW	NA	NA	*	*
150 kW	NA	NA	*	*
200 kW	NA	NA	NA	*

Tech Specs

Current Sensors/Power Transducers Template
Type of Circuit Measured	Three Phase
Maximum Voltage	600 V
Process Input	Yes
Output Selection	Other
Test Equipment General Attributes
Warranty	5 YEARS
Shipping Weight	1.00 LBS
