NK AG1-NOAC-120-FS-100

N.O./N.C. solid-state switch or mechanical relay outputs
Normally energized or normally de-energized contacts
Noise immunity option for use in EMI/RFI sensitive environments
Field-selectable 5 mA, 10 mA or 30 mA setpoints on the AG3 “Tri-set” model makes user adjustments fast, sure and convenient
Single factory calibrated setpoints available form 5 mA to 950 mA

AG Series Ground Fault Detector

AG Series Ground Fault Detector helps protect people, products, and processes from damage by ground fault conditions by monitoring all current-carrying conductors in grounded single- and three-phase delta or wye systems.

NK Ground Fault Protection Specifications
Power Supply	• 120 VAC (66–132 V ) • 24 VAC/DC (19–29 V ) • Green LED = Power On indication
Power Consumption	2 VA max.
Setpoint Range	Factory-calibrated models (specify when ordering): • AG1: 5–100 mA (005–100) • AG2: 80–950 mA (080–950)
	TR3 "Tri-set" models (field jumper select):
	SOLID-STATE OUTPUT MODELS	MECHANICAL OUTPUT MODELS
Output	Isolated solid-state relay	Electromechanical SPDT relay
Output Rating	• Solid-state AC Switch 1 A @ 240 VAC • Solid-state DC Switch 0.15 A @ 30 VDC	• Auto Reset: SPDT Relay 1 A @ 125 VAC, 2 A @ 30 VDC • Latching: SPST Relay 1 A @ 125 VAC, 2 A @ 30 VDC
Off-state Leakage	• <10 micro A (N.O.) • <2.5 mA (N.C.)	none
Response Time	• 200 ms @ 5% above trip point • 60 ms @ 50% above trip point • 15 ms @ 500% above trip point
Time Delay	None
Isolation Voltage	UL listed to 1270 VAC, tested to 5 KV
Frequency Range	50–400 Hz (monitored circuit)
Noise Immunity	N/A	• EMI/RFI shielding • Power supply noise filtering
Case	UL94 V-0 Flammability Rated
Environmental	-4 to 122°F (-20 to 50°C) 0–95% RH, non-condensing
Listings	UL/cUL, CE

Setpoint Range	AG1 Series: 5-100mA Field Adjustable AG2 Series: 80-950mA Field Adjustable AG3 Series: Tri-Set, 5, 10 & 30 mA, Jumper Select
Voltage Range	Up to 1,500 VAC (Monitored Circuit)
Frequency Range	50-400Hz (Monitored Circuit)
Output Options
Solid State AC Switch	1A @ 240 VAC (2A for 10 Min)
Solid State DC Switch	0.15A 30 VDC (500mA momentary)
Relay Output	0.5A @ 120 VAC, 0.25A @ 240 VAC, 2A @ 30 VDC
Response Time	150 mS @ 5% above setpoint. 100 mS @ 50% above setpoint.
Power Supply	Operates from 55-110% of nominal voltage
Nominal Voltages	120, 240 VAC (50-400 Hz) Green LED=Power
Optional Power	24VAC or 24 VDC Operates +/- 20%
Power Consumption	2.5 Watts
Dimensions	2.5"H x 2.8"W x 1.5"D, (64x71x38mm), aperture 0.75" (19mm) diameter
Case	UL 94V-O Flammability Rated
Environmentat	l5 to158 DegF (-15 to 70 DegC), 0-95% RH, Non Condensing
Listings	UL 1053, Class 1 Recognized, CE Certified

Test Equipment General Attributes
Warranty	5 YEARS
Safety Approval	CE, RoHS, UL
Product Height	2.98 IN
Product Length	1.45 IN
Product Width	3.86 IN

0

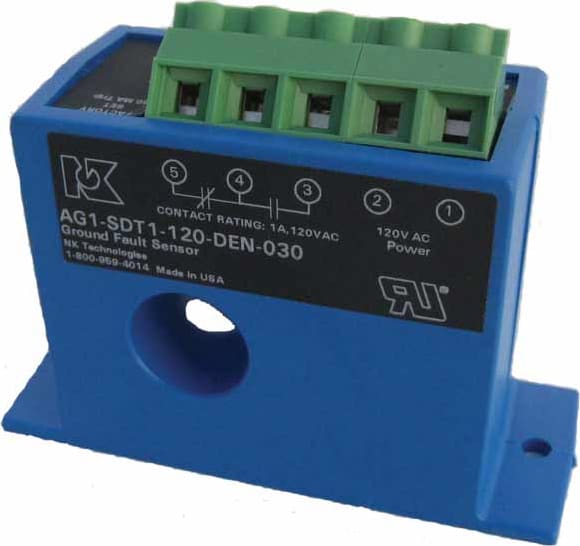

Name: NK AG1-NOAC-120-FS-100 - AG Series Ground Fault Detector
Brand: NK
SKU: NKAG1-NOAC-120-FS-100
Price: 293.70 USD
Availability: InStock

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review
