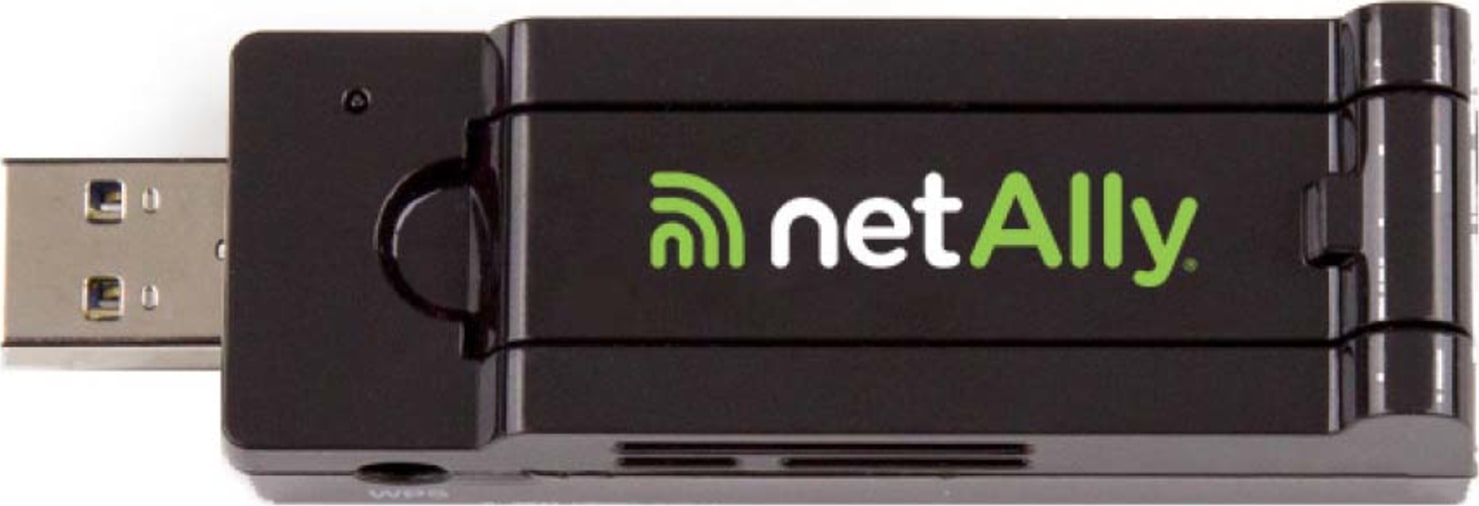

NetAlly AM/D1080-Z2 - 802.11ac USB Adapter (WORLD)

The NetAlly 802.11a/b/g/n/ac 3x3:2 USB Adapter has been optimized for use with the AirMagnet tools for efficient and accurate 802.11ac testing and troubleshooting. The adapter provides a 3 x 3 MIMO configuration optimized for 2 spatial streams and can support channel widths up to 80 MHz allowing users to deploy and troubleshoot Wi-Fi networks delivering performance at data rates up to 1300 Mbps.

Supporting Operating Systems

• Microsoft® Windows 8™ and 8.1™ Pro/Enterprise (64-bit)
• Microsoft® Windows 10™ Pro/Enterprise (64-bit)

Supporting Standards

• 802.11a - Max data rate 54 Mbps (5GHz)
• 802.11b - Max data rate 11 Mbps (2.4GHz)
• 802.11g - Max data rate 54 Mbps (2.4GHz)
• 802.11n - Max data rate 450 Mbps (2.4GHz and 5GHz, 20MHz and 40MHz bandwidth)
• 802.11ac - Max data rate 1300 Mbps (5GHz, 20MHz, 40MHz and 80MHz bandwidth)

Frequency Range

• 2.400 to 2.4835 GHz (subject to local regulations)
• 5.150 to 5.825 GHz (subject to local regulations)

Supported Host Interface

• USB 3.0 Type A

Temperature

• Operation temperature: 0 to 40° C [32° to 104° F]
• Storage temperature: -20 to 60° C [-4° to 140° F]
