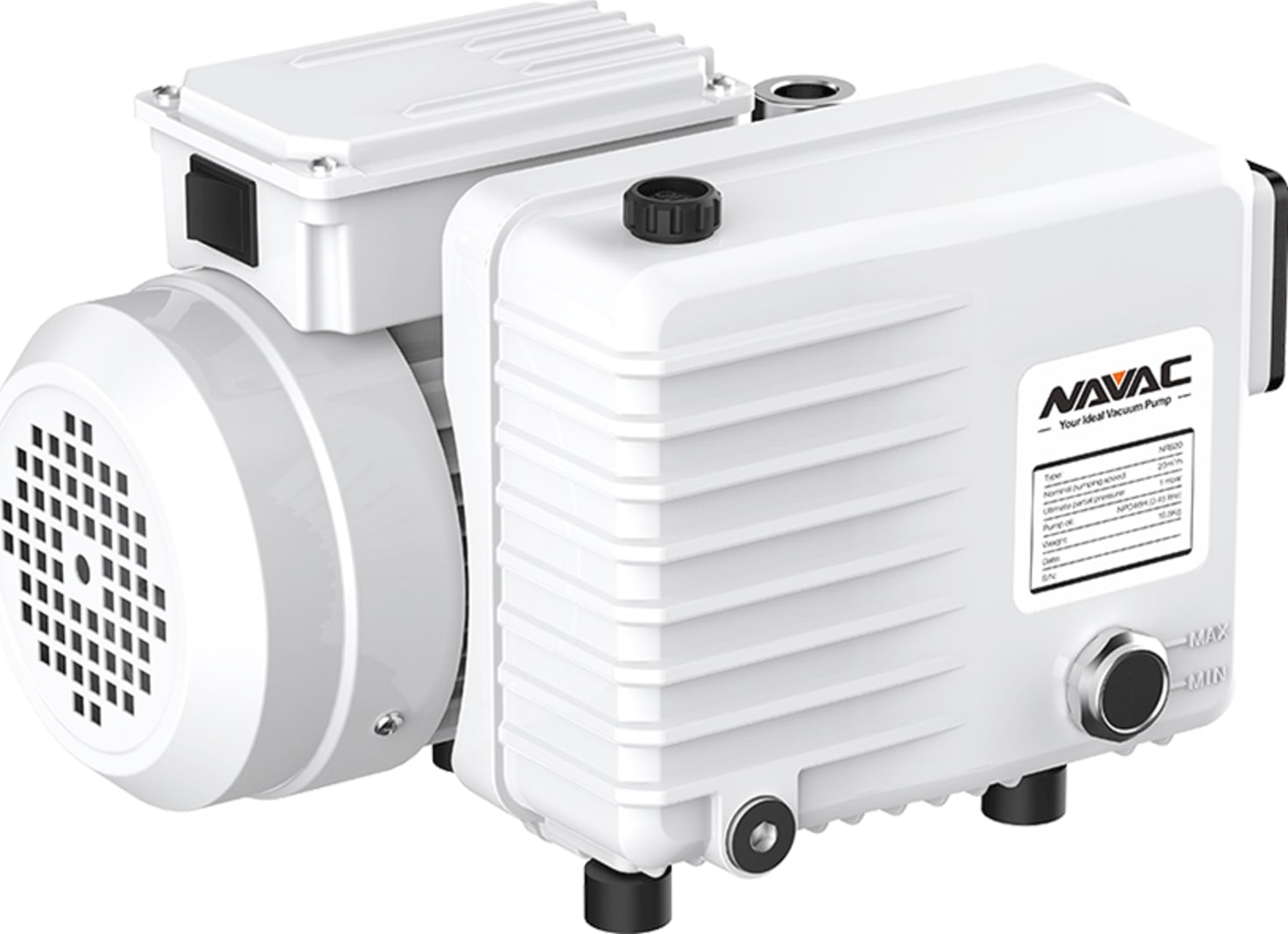

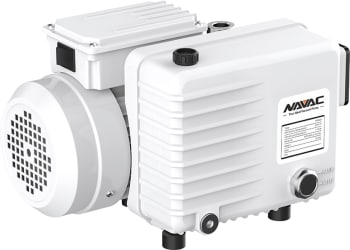

NAVAC NRS20 115V 1PH - NRS Series Vacuum Pump (115V, 60Hz, 1ph)

Name: NAVAC NRS20 115V 1PH - NRS Series Vacuum Pump (115V, 60Hz, 1ph)
Brand: NAVAC
SKU: NAVACNRS20 115V 1PH
Price: 680.00 USD
Availability: InStock

0 reviews | Model: NAVAC NRS20 115V 1PH

Compare

NAVAC 115V, 60Hz, 1ph NRS20 Single Stage Oil Sealed Rotary Vane Vacuum Pump

Motor: 115V, 60Hz, 1ph
Pumping speed (50Hz): 20 m³/h
Oil capacity: 0.5 liter
High efficient oil mist filters contribute to solve the issues of oil exhaust and smoking as well as prolong the service life.
Multiple shifts design for gas ballast to meet customers’ demand of ultimate vacuum and capacity of vapor evacuation.
Sealing parts are made from fluororubber, which improved the performance of anti-corrosion and solved oil leakage issues.
Japanese Mori Seiki Horizontal CNC machining guarantees high reliability and precision.
Unique industrial design generated elegant appearance
Integrated design of pump and motor made the product lighter and smaller

View Product Details

Your Price: $680.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	NAVAC NRS20 115V 1PH NAVAC 115V, 60Hz, 1ph NRS20 Single Stage Oil Sealed Rotary Vane Vacuu ...	NAVAC NRS300 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NRS300 Single Stage Oil ...	NAVAC NRS200 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NRS200 Single Stage Oil S ...	NAVAC NRS160 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NRS160 Single Stage Oil Sealed ...	NAVAC NRS100 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NRS100 Single Stage Oil Sealed ...	NAVAC NRS65 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NAVAC NRS65 Single Stage Oil Se ...	NAVAC NRS40 NAVAC 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph NRS40 Single Stage Oil Se ...	NAVAC NRS28 NAVAC 200-220/380-415V, 50Hz 200-230/460V, 60Hz, 3ph Single Stage Oil Sealed R ...
Price
In Stock
Type (Lab Pumps)	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary
Function (Pumps)	Vacuum	Vacuum	Vacuum	Vacuum	Vacuum	Vacuum	Vacuum	Vacuum
Vacuum (Vacuum Pumps)	14 CFM (396.44 l/min)	212 CFM (6003.17 l/min)	140 CFM (3964.36 l/min)	113 CFM (3199.80 l/min)	70 CFM (1982.18 l/min)	46 CFM (1302.58 l/min)	28 CFM (792.87 l/min)	20 CFM (566.34 l/min)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

NAVAC NRS20 115V 1PH Accessories

Choose a Category

HVAC Accessories

for the NAVAC NRS20 115V 1PH

NAVAC NPO46H Pump Oil for NRD4/6/8, NRS20, 1 liter

Catalog: NPO46H

(0)

In Stock!

Add to Cart

NAVAC NSK20 Service Kit for the NRS20 Single Stage Pump

Catalog: NSK20

(0)

In Stock!

Add to Cart

NAVAC VO1G Vacuum Pump Oil 1 Gallon-Note:Price is for 6 Units

Catalog: VO1G

(0)

In Stock!

Add to Cart

NAVAC NRS20 115V 1PH - Single Stage Oil Sealed Rotary Vane Vacuum Pump

Motor: 115V, 60Hz, 1ph
Pumping speed (50Hz): 20 m³/h
Oil capacity: 0.5 liter

The NAVAC NRS20 115V 1PH NRS Series Vacuum Pump is an oil-sealed single-stage rotary vane pump. It is the basic equipment to obtain vacuum and can be used to pump inactive gas within the scope of a low vacuum and a small amount of non-condensable gas.

The pump is especially suitable for packaging machines, free drying, vacuum transfer, medical technology, melting furnaces, analytical instruments, laboratory, etc. It can be used as a backing pump for roots pumps as well.

The pump has a reasonable structure design for long failure-free operation. Air-cooled and low noise level. High displacement speed and excellent ultimate vacuum. No oil spray and leak, easy to maintain.

Model: NRS20 115V 1PH Specifications
Product description	115V, 60Hz, 1ph
Displacement speed	m³/h (50Hz)	20
Displacement speed	cfm (60Hz)	14
Ultimate pressure (total)	PA	100
	torr	7.5 x 10^-1
	In. Hg	30
Ultimate pressure - GB I	mbar	0.5
Ultimate pressure - GB I	torr	3.75 x 10^-1
Ultimate pressure - GB II	mbar	1.5
Ultimate pressure - GB II	torr	1.125
Water vapor tolerance - GB - I	mbar	15
Water vapor tolerance - GB - I	torr	11
Water vapor capacity - GB I	kg/h	0.2
Water vapor tolerance - GB II	mbar	30
Water vapor tolerance - GB II	torr	22
Water vapor capacity - GB II	kg/h	0.4
Power supply		Single/Three-phase
Power rating	kw	0.75
Power rating	hp	1
Motor speed	rpm (50Hz)	1440
Motor speed	rpm (60Hz)	1720
Oil capacity	liters	0.5
Oil type (NPO)		46H
Inlet and exhaust flange		G3/4"
Noise level	dB	65
Ambient temperature	ºC	10-40
Protection class		IP54
Protection class		IP54
Net weight	kg	20
Net weight	lbs	44
Dimensions	mm	317 x 249 x 219
Dimensions	in	12.5 x 9.8 x 8.6

Tech Specs

Pumps for Life Science
Type (Lab Pumps)	Rotary
Function (Pumps)	Vacuum
Vacuum (Vacuum Pumps)	14 CFM (396.44 l/min)
Line Power (Pumps)	110-120 VAC
Number of Stages (Pumps)	1
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	NRS series vacuum pumps have a one year guarantee from the date of purchase.
IP Rating	IP54
Product Weight	44 LBS
Product Height	9.8 IN
Product Length	8.6 IN
Product Width	12.5 IN
Shipping Height	9.80 IN
Shipping Length	8.60 IN
Shipping Width	12.50 IN
