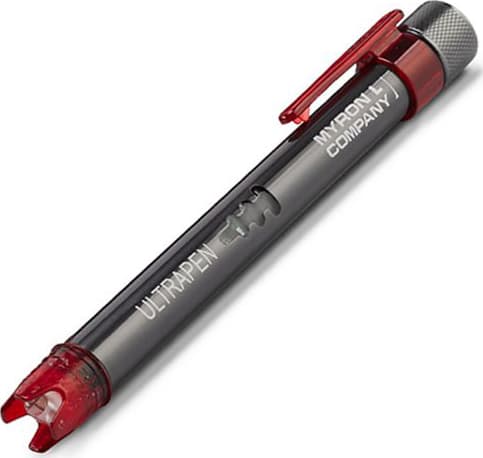

Myron L PTBT2 pH and Temperature Pen, Bluetooth Enabled

Smartphone/Tablet Compatible Tester
Bluetooth Enabled
Automatic Temperature Compensation
1, 2 an 3 point calibration
Waterproof
Powered by 1 N Type battery (included)

The PTBT2 pH Pen is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include 1, 2 and 3 point calibration; automatic temperature compensation; highly stable microprocessor-based circuitry; waterproof housing; and Mobile Device Application that is user intuitive. The PTBT2 is easy to calibrate and easy to use.

PTBT2 Measurement Modes

Mode	Method of Measurement
Hold	Once stabilized, the readings are captured then displayed
LIVE	Real-time readings are displayed continuously during measurement

PTBT2 Features

PTBT2 Features
(1) PUSH BUTTON	Turns PTBT2 on; enters calibration mode, activates PTBT2 preference menus.
(2) BATTERY CAP	Provides access to battery for replacement.
(3) POCKET CLIP	Bluetooth antenna is located here.
(4) WIRELESS TRANSCEIVER WINDOW	Bluetooth antenna is located here
(5) LED INDICATOR LIGHT	Tells the user when to dip & swirl PTBT2 during measurements and calibration. Indicates PTBT2 is in Conﬁguration mode.
(6) pH SENSOR	measures hydrogen ion concentration of solution.
(7) SOAKER CAP	Contains pH Sensor Storage Solution to maintain sensor hydration. To remove, twist the cap while pulling off. Use caution not to spill solution. To replace, ﬁll the cap half full ONLY with solution. Twist the cap while pushing on. Be careful, excess solution may squirt out.
(8) CAP STOP	Shows how far to push the soaker cap when putting it on the PTBT2
(9) SCOOP	Used to hold sample solution when dipping is not possible. To use, push the scoop onto the sensor while shifting side-to-side. and hold the scoop directly under a vertical stream, avoiding bubbles. To remove, pull the scoop off while shifting side-to-side.

Specifications
System Requirements	Requires mobile device operating with Apple iOS 6 or iOS 7. App is optimized for iOS 7
Measurement Range	0.00 – 14.00 pH; Temperature: 0°-71° C/32-160° F
Accuracy (After Wet Calibration)	± 0.01 pH; Temperature ± 0.1ºC / ± 0.1ºF
Repeatability	± 0.01 pH; Temperature ± 0.1ºC / ± 0.1ºF
Resolution	0.01 pH; Temperature ± 0.1ºC / ± 0.1ºF
Time to Reading Stabilization	10 - 30 seconds
Active Mode Power Consumption	Active Mode 137 mA, Sleep Mode 2 µA
Temperature Compensation	Automatic to 25ºC
Physical Dimensions	17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D
Weight	54 g or 1.94 oz
Case Material	Anodized Aircraft Aluminum with Protective Coating
Battery Type	N type, Alkaline 1.5 V
Calibration Standard Solution	4.0 pH, 7.0 pH, 10.0 pH
Operating/Storage Temperature	0 - 55ºC / 32 - 131ºF
Water Resistance	IP67 and NEMA 6
EN61236-1: 2006 - Annex A: 2008; 1999/5/EC Annex III	Electrostatic discharge to case of instrument may cause PTBT2 to spontaneously power on. In this case, the PTBT2 will power off after several seconds
FCC ID: T7VPAN17	The Bluetooth transceiver device meets the requirements for modular transmitter ap- proval as detailed in FCC public Notice DA00-1407.
Canada (IC), license: IC: 216Q-PAN17	The Bluetooth transceiver device meets the requirements for modular transmitter ap- proval as detailed in RSS-GEN.

0

Name: Myron L PTBT2 pH and Temperature Pen, Bluetooth Enabled
Brand: Myron L
SKU: MyronPTBT2
Price: 386.24 USD
Availability: InStock

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review



Product	Myron L PTBT2 Ultrapen, Blutooth, pH Pen	Myron L PT2 Ultrapen, pH Pocket Tester Pen	Myron L PT1 Ultra Pen, Conductivity Pen	Myron L PT3 Ultrapen, ORP Pocket Testr Pen	Myron L PT4 UltraPen, PT4, FCE Ext. Desc: Free Chlorine Equivalent Pocket Tester	Myron L PT6 Ultrapen, PT6, Nitrate	Myron L PT5 Ultrapen, Dissolved Oxygen Pocket Test Pen	Myron L PTBT1 Ultrapen, Blutooth, Cond Pen	Myron L PTBT4 UltraPen, Blutooth, Free Chlor	Myron L PTBT5 UltraPen, Blutooth, DO UltraPen, Blutooth, DO	Myron L PTBT6 Ultrapen, Blutooth, Nitrate
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Test Equipment General Attributes
Unique Features	Conductivity, TDS, Salinity, Temperature, Bluetooth Enabled
Warranty	1 YEARS
Safety Approval	CE Safety Approval FCC
IP Rating	IP67
Product Weight	55 GRAMS (0.121 LBS)
Product Length	6.75 IN
Power Supply Voltage	Battery Powered
Country of Origin	United States
