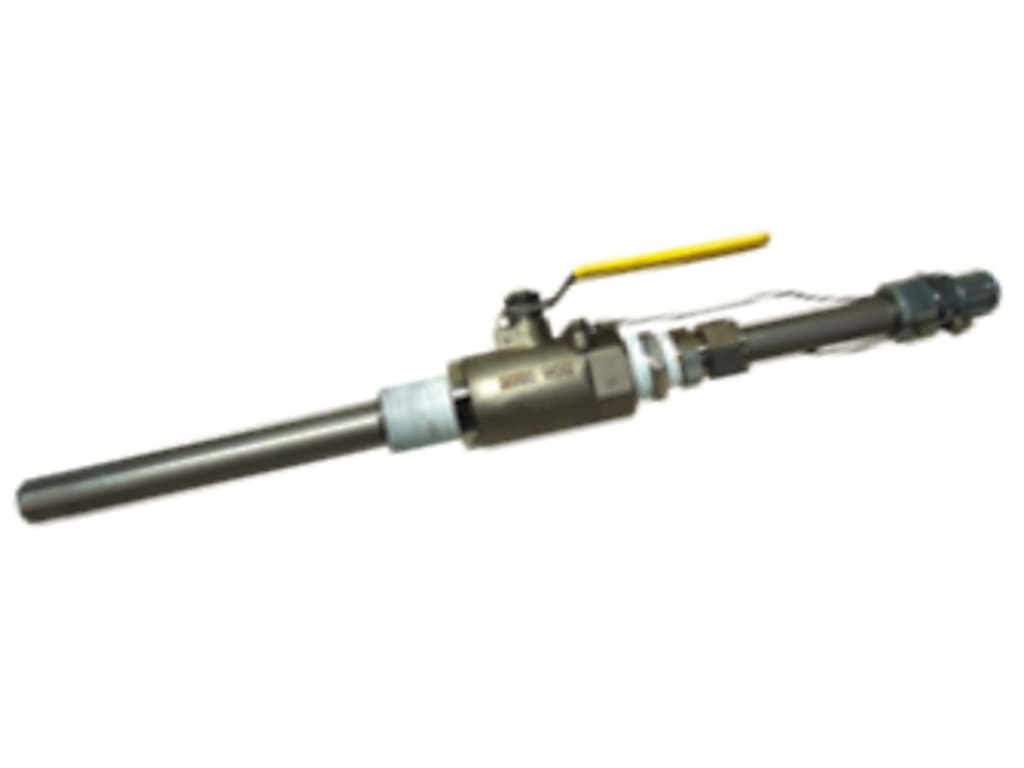

Valve Insertable Conductivity Sensor, 1.0 Cell Constant, Junction Box, 25' Cable
The Myron L Model CS40 sensor has been designed for a broad measurement range in difficult process conditions. It can be installed in submersion, insertion, or wet-tap configurations, and is good for most applications from high purity water to high chemical concentrations.
- 1.0 Cell Constant
- Junction Box
- 25' Cable
- Measures conductivity or resistivity directly in process temperatures up to 120C
- Dual O-ring seals used on all versions for high on-stream reliability
- Economic Value
- Standard 100 psi at 150°C/Hi-Temp 250 psi at 205°C
- Broad Measurement Range
- Many Applications
Wetted materials of construction are 316 stainless steel and Kel-F or Teflon, depending on the range of temperature required. All possible leak paths through the sensor are double sealed with EPR O-rings for maximum onstream reliability. The first O-ring protects the second O-ring from chemical attack, giving more than double the service life that can be expected from single sealed units.
Process connections are made via a bored through swage fitting with 3/4” NPT threads. This fitting can be screwed into a line, a tank, or the optional wet-tap valve (WTV) assembly. It can also be turned round and connected to a standpipe for use in a submersion configuration. Available sensor constants of 0.05, 0.1, 1.0 & 10.0 provide the broadest range of applications of any of our sensor models.
