Myron L CS40-01-JB Conductivity/Resistivity Sensor with 0.1 Sensor Constant and Junction Box

• 0.1 Sensor constant
• Junction box included
• Standard sensor: 100 psi/6,9 bar at 120°C/248°F
• Measures conductivity or resistivity directly in process temperatures up to 120ºC

The Myron L CS40-01-JB is a conductivity/resistivity sensor with 0.1 sensor constant and junction box for 750II conductivity/resistivity monitor/controllers. This sensor has been designed for a broad measurement range in difficult process conditions. It can be installed in submersion, insertion, or wet-tap configurations, and is good for most applications from high purity water to high chemical concentrations.

Wetted materials of construction are 316 stainless steel and Kel-F or Teflon, depending on the range of temperature required. All possible leak paths through the sensor are double sealed with EPR O-rings for maximum on-stream reliability. The first O-ring protects the second O-ring from chemical attack, giving more than double the service life that can be expected from single sealed units.

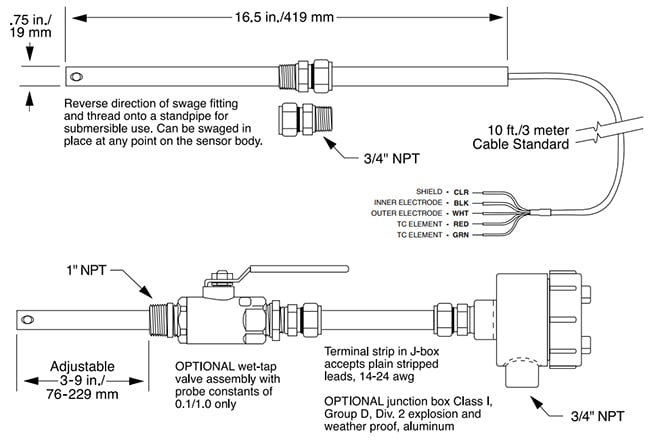

Dimensions



Benefits
