ULTRAMETER III 9P AHL Titration Kit
Since 1957, the Myron L Company has designed and manufactured highly accurate and reliable analytical instruments for a wide variety of demanding applications. Thousands of professionals around the world rely on the performance of our instruments every day. Uses range from boiler water testing to ultrapure water control to medical instruments for artificial kidney machines. We are proud of the trust our handheld instruments and monitor/controllers have earned. Some of our instruments have been in continuous use for over 40 years. Our latest digital handheld, the Ultrameter III 9P, is based on the tried and tested design of the Ultrameter II. The 9P adds the ability to perform in-cell alkalinity and hardness titrations either as stand-alone measurements or as part of an LSI calculation. Alkalinity, hardness, pH and temperature values can be manipulated in the LSI calculator to predict the effect of changes on water balance. Measurements are extremely accurate. And the 9P is simple to operate and maintain.
NEW! FCE FAC Readings
The Myron L Company FC
E function reports FAC quickly and accurately by measuring ORP, the chemical characteristic of chlorine that directly reflects its effectivity, cross referenced with pH. Both DPD kits and colorimeters may tell the user the FAC value of the sample in the test tube, but since the chemistry of that sample is quite different from the source water being analyzed, the results are imprecisely related to actual disinfection power. The Myron L Company FC
E function measures the real, unaltered chemistry of source water, including moment-to-moment changes in that chemistry.
Alkalinity, Hardness & LSI Titration Kit.
A hard foam-lined case organizes and protects all contents: The 9P; 9P cell extender; required reagents for in-cell alkalinity, hardness and LSI titrations; standard calibration solutions for all parameters; storage solution to protect the pH/ ORP sensor; and pipette for precision dispensing with additional tips. Sensors are internal and included. The 9P is also capable of wireless communication with the bluDock™ option installed. The bluDock uses Bluetooth® technology to transfer data wirelessly to your personal computer and comes with user-intuitive software that makes it easy to analyze saved water sample data.
9P Titration Kit
includes 9P; cell extender; 100µL pipette; 12 tips; 3 buffers (pH 4, 7, and 10); pH/ORP Sensor Storage Solution; ORP Conditioner Solution; titration reagents and standards H2SO4-1, HCl-3, NAOH, EDTA-LC, EDTA-HC, Alkalinity Standard 100 and Hardness Standard 200; standard solutions KCI-7000 and 442-3000. All bottles are 2 oz/59 ml. model: 9PTK
9PTK AHL Titration Kit can be ordered with the bluDock Accessory Package, as well. kit with bludock: 9PTK-BD
In-cell titration functions
The Ultrameter III adds the ability to perform in-cell conductometric titrations that provides a convenient way to determine alkalinity, hardness and LSI in the field. This eliminates the need to collect and transport samples to another location for analysis. User intuitive display prompts guide you through titration procedures from start to finish. All required reagents and equipment are included in the 9P titration kit.
Hardness unit conversion
The Hardness titration, LSI Titration and LSI Calculator functions allow you to set the hardness unit preference to either grains of hardness or ppm CaCO3.
Accuracy you can trust
Like the Ultrameter II, the Ultrameter III delivers exceptional accuracy of ±1% of reading (±.1% at calibration point). This high level of accuracy is achieved through advanced four-electrode conductivity cell technology, a powerful microprocessor, proprietary circuit design and conversion algorithms for three of the most common solution types, as well as a unique pH/ORP sensor. With displayed values of up to 9999, the full four-digit LCD ensures resolution levels never before possible in such affordable instruments. For accuracy in diverse applications, Ultrameter III allows you to select from 3 solution modes that model the behavior of the most common solution types: KCl, NaCl and 442™ Natural Water. Additionally, the Ultrameter III features a user adjustable conductivity/ TDS conversion ratio for greater accuracy when measuring solutions not contained in the microprocessor. The Ultrameter III is factory calibrated with NIST traceable solutions. Certification of traceability and NIST traceable standard solutions can be purchased as accessories for definitive calibration.
Innovative Engineering
The Ultrameter III is a prime example of how high-tech engineering can greatly simplify and streamline a task. Whether in the lab, industrial plant, or in a remote field location, electrometric measurements are accomplished in 3 easy steps:
1. Fill the cell cup
2. Push a parameter key
3. Take the reading
Temperature compensation and range selection are both rapid and automatic. User adjustable temperature compensation (up to 9.99%/°C) which can also be disabled for applications requiring non-compensated readings. Digital results display instantly. Measurement is continuous, displaying real-time readings rather than a static snapshot of the solution.
Easy to calibrate
All calibrations are quickly accomplished by pressing the ▲ or ▼ keys to agree with our NIST traceable Standard Solution. When calibration is necessary, display prompts simplify pH calibration and make sure the correct buffer is being used. Plus, all parameters (excluding factory set temperature) have an internal electronic setting that can be used for field calibration and as a check on pH/ ORP sensor life.
Wireless Benefits
The optional bluDock™ accessory package is an integrated data solution for your record keeping requirements, eliminating the need for additional hardware, wires and hassle. Because the user never touches the data, there is little opportunity for data tampering and human error. bluDock software has an easy to use interface with user intuitive functions for storing, sorting and exporting data.
Hardness/Langelier Saturation Index Calculator allows you to determine water balance adjustments on the spot.
Faster, simpler more accurate free chlorine readings measuring a dynamic range of concentrations wider than the range of colorimetric test kits.
Easily transfer stored readings to Macintosh and PC platforms with the optional bluDock™ accessory package.
Ample memory provides increased flexibility to record and store 100 separate readings.
Real Time Clock with Date & Time Stamp allows you to maintain the integrity of each individual reading.
In-Cell titrations are simple to do. Reagent solutions are color-coded for easy recognition during procedure. Cell extender, pipette and replacement tips are included with kit.
The pH/ORP sensor chamber provides protection to a unique porous liquid-junction.
The large capacity KCI reservoir guarantees extended life.
A custom LCD helps simplify calibration and operation by using annunciators and prompts to indicate various conditions
IP67/NEMA 6 rated PoolPros are waterproof and buoyant and can be fully immersed to 3 feet/1 meter.
Myron L BLUDOCK Wireless Data Transfer Module and U2CI Software CD

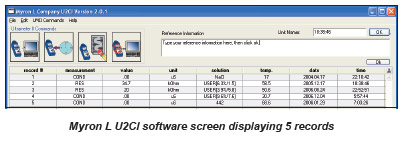

bluDock™ Accessory Package includes bluDock™, Mac/PC application software and wireless Bluetooth*** adaptor for downloading data and printed instructions.
Wireless Benefits
The bluDock™ accessory package is an integrated data solution for your record keeping requirements, eliminating the need for additional hardware, wires and hassle. Because the user never touches the data, there is little opportunity for data tampering and human error. Package includes everything you need to transfer data wirelessly from any Ultrameter II™, PoolPro™ or Digital Dialysate Meter™ to your personal computer via Bluetooth ®* technology. bluDock software has an easy to use interface with user intuitive functions for storing, sorting and exporting data.
A wireless USB adapter (dongle) is included for Mac or PC platforms that do not have built-in Bluetooth*** wireless communication capabilities. If a replacement dongle is required, one can be ordered separately. Order Model: BDDO
System Requirements
The bluDock U2CI application will operate on Windows XP*, Vista* and 7*, and Macintosh OSX** based computer systems. If you are running an older operationg system, please contact the Myron L® Company.
Bluetooth
The bluDock module is a fully qualified Bluetooth®*** 2.1/2.0/1.2/1.1 module +EDR for 2.0 and 2.1.
Limited Warranty
All Myron L® bluDocks have a Two Year Limited Warranty. Warranty is limited to the repair or replacement of the bluDock only, at our discretion. The Myron L® Company assumes no other responsibility or liability.
