Dual Range Heavy Duty Rinse Tank Control System dramatically reduces the amount of water used in continuous flow rinse tanks. At the same time, it automatically maintains optimum water purity, ensuring effective rinsing.

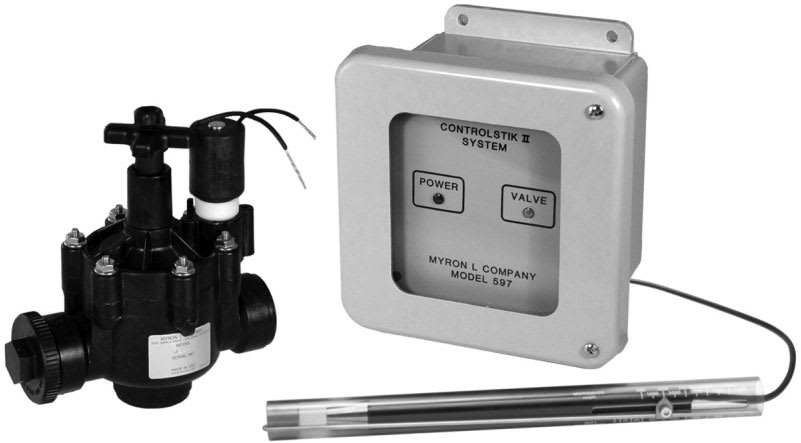

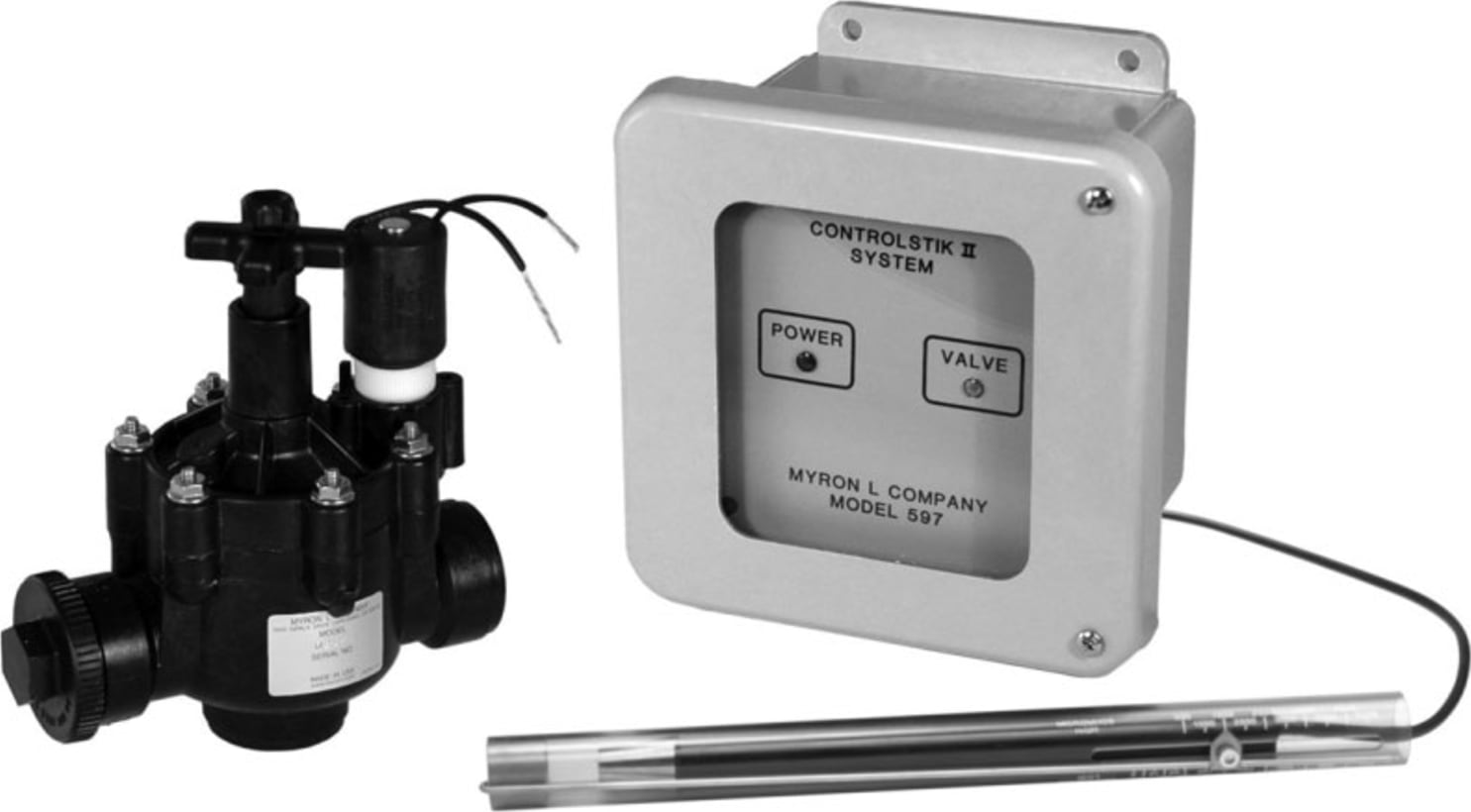

ControlStik II Rinse Tank System
The Myron L Controlstik Rinse Tank System is a fully automatic control which will greatly reduce the amount of water used in continuous flow rinse tanks. At the same time, it automatically maintains water quality, insuring effective rinsing in water up to 82°C (180°F). It operates on the electrical conductivity principle and is fully stable and protected against all environmental conditions including temperature, line voltage, water contamination and corrosion.
After installation, the Controlstik (sensor) is submerged in the rinse water. When contamination (dragin) accumulates beyond the point “safe” for good rinsing, the sensor automatically opens the Solenoid Valve. Fresh water flows into the tank, and as excessive contamination is diluted back to the “safe” level, the sensor closes the valve, limiting water use.
Limited Warranty
Myron L® CONTROLSTIK II™ Systems have a Two (2) Year Limited Warranty. If this system fails to function normally, return the faulty unit or the system to the factory prepaid. If, in the opinion of the factory, failure was due to materials or workmanship, repair or replacement will be made without charge. A reasonable service charge will be made for diagnosis or repairs due to normal wear, abuse or tampering. Warranty is limited to the repair or replacement of the units of the CONTROLSTIK II System only. The Myron L® Company assumes no other responsibility or liability.
