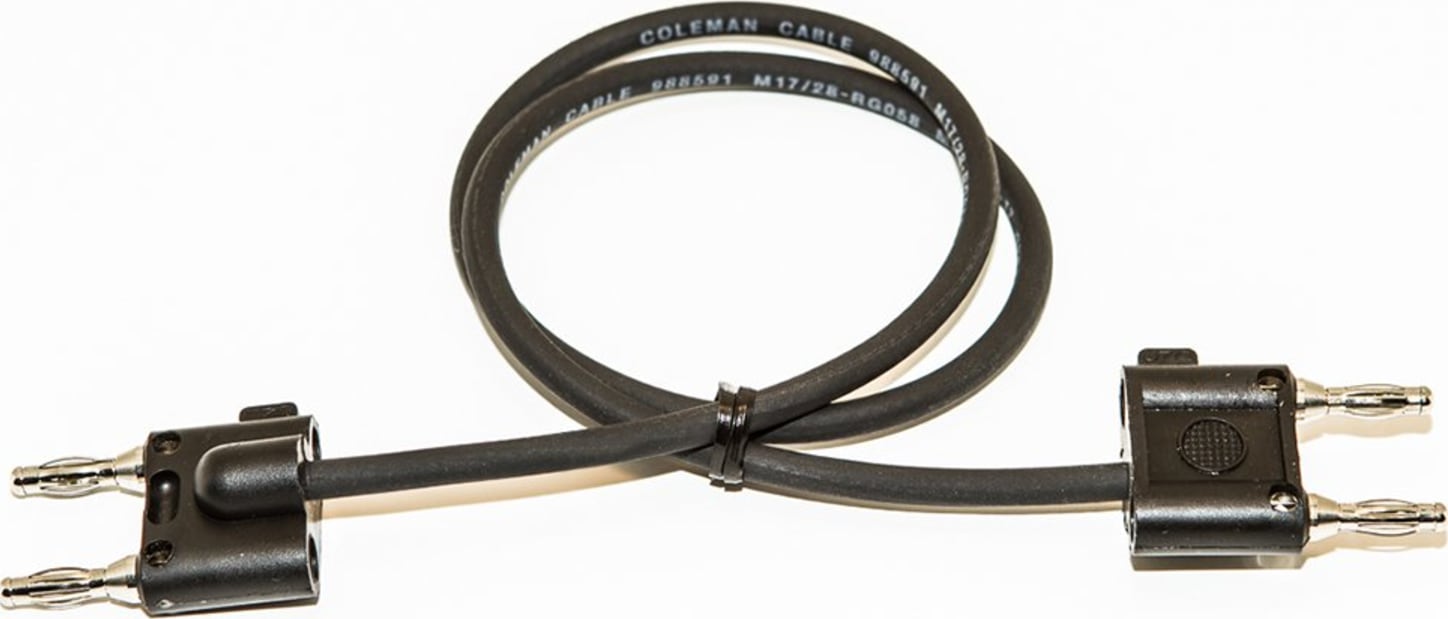

Mueller Electric BU-7070-B-36-0 36" RG58 Coax Black Stackable Double Banana Plug on Both Ends-RG58

Name: Mueller Electric BU-7070-B-36-0 36" RG58 Coax Black Stackable Double Banana Plug on Both Ends-RG58
Brand: Mueller Electric
SKU: Mueller ElectricBU-7070-B-36-0
Price: 31.27 USD
Availability: InStock

0 reviews | Model: Mueller Electric BU-7070-B-36-0

Mueller Electric BU-7070-B-36-0 Black Stackable Double Banana Plug on Both Ends-RG58, 36 RG58 Coax

Compare

Black Stackable Double Banana Plug on Both Ends-RG58, 36 inch RG58 Coax

Black Stackable Double Banana Plug on Both Ends-RG58
Banana plugs are nickel plated phosphor bronze
36" RG58 Coax
Overmold material is polypropylene

View Product Details

Your Price: $31.27

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Mueller Electric BU-7070-B-36-0 Black Stackable Double Banana Plug on Both Ends-RG58, 36 i ...	Mueller Electric BU-7070-B-24-0 Black Stackable Double Banana Plug on Both Ends-RG58, 24 i ...	Mueller Electric BU-7070-B-48-0 Black Stackable Double Banana Plug on Both Ends-RG58, 48 i ...	Mueller Electric BU-7070-B-60-0 Black Stackable Double Banana Plug on Both Ends-RG58, 60 i ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mueller Electric BU-7070-B-36-0 Black Stackable Double Banana Plug on Both Ends-RG58, 36" RG58 Coax

The BU-7070-B-* is a test lead with dual stackable, 4mm banana plugs on each end. The banana plugs mate with any standard 4mm banana jacks and are spaced at the industry standard .75” (19mm) Constructed with RG58/U Coax cable. Center conductor is 20 AWG (19x33) tinned copper and the shield is tinned copper braid (95% coverage). The overmold material is polypropylene. Banana plugs are nickel plated phosphor bronze.

General Specifications
Length:	The "XX" in the model number represents the overall length in inches.
Standard lengths are:	12" (30cm), 24" (61cm) , 36"(.9m), 48" (1.2m) and 60" (1.5m)
Color:	The "*" in the model number represents the over-mold color. Available colors are: -0 Black, -2 Red,
Ratings:	50 Ohms, Hands free testing to 500 VRMS
---	RoHS Compliant
