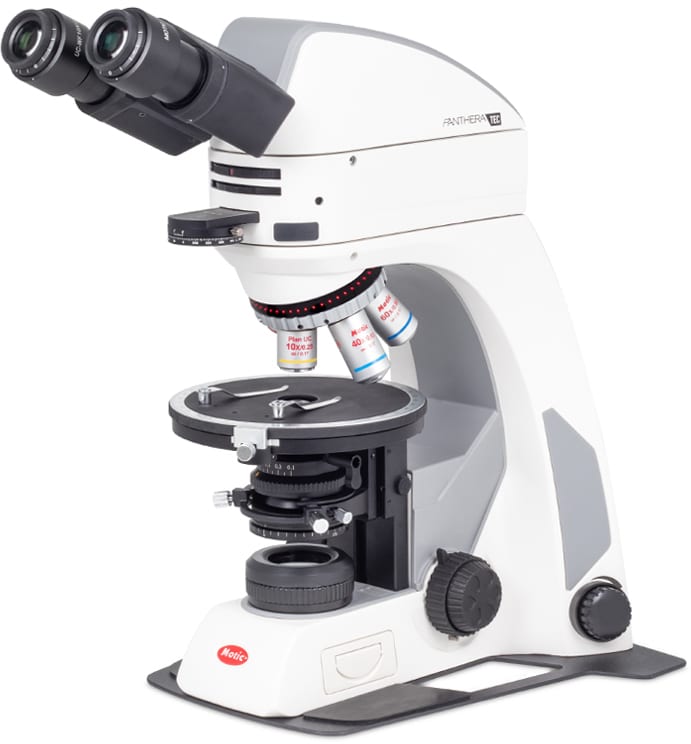

Motic Panthera TEC-POL BINO - Binocular Microscope

Name: Motic Panthera TEC-POL BINO - Binocular Microscope
Brand: Motic
SKU: MoticPanthera TEC-POL BINO
Price: 3987.00 USD
Availability: InStock

0 reviews | Catalog: 1100104600251 | Model: Motic Panthera TEC-POL BINO

Images (4) | Videos (3)

Compare

Panthera TEC POL Binocular Microscope

Observation tube: Binocular head, Siedentopf type
Optical system: Colour Corrected Infinity Optical System (CCIS^®)
Inclination: 25º inclined
Interpupillary distance: 48-75mm
Intermediate body: Rotatable analyzer 360º, Bertrand lens and slot for compensators
UC Plan Achromat objectives (strain-free) for FOV 22mm
Transmitted and transmitted/ incident stand options
Transmitted light: LED/HAL light source interchangeable
Integrated focusable/ centerable Bertrand lens
Motic LightTracer: Coded nosepiece & Digital light intensity knob

View Product Details

List Price: $4,430.00

Your Price: $3,987.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Motic Panthera TEC-POL BINO Panthera TEC POL Binocular Microscope	Motic Panthera TEC-POL TRINO Panthera TEC POL Trinocular Microscope	Motic Panthera TEC-POL Epi BINO Panthera TEC POL Epi Binocular Microscope	Motic Panthera TEC-POL Epi TRI Panthera TEC POL Epi Trinocular	Motic Panthera TEC-POL Digital Panthera TEC POL Digital Binocular Microscope	Motic Panthera TEC-POL Epi Digi Panthera TEC POL Epi Digital Binocular Microscope
Price
In Stock
Body Style	Binocular	Trinocular	Binocular	Trinocular	Binocular	Binocular
Illumination Type	LED	LED	LED	LED	LED	LED
Eyepiece Magnification	10	10	10	10	10	10
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Motic Panthera TEC-POL BINO Accessories

Choose a Category

for the Motic Panthera TEC-POL BINO

Motic 1101001901981 Achromat Swing-Out Condenser

Catalog: 1101001901981

(0)

In Stock!

Add to Cart

Motic 1101001403531 UC-WF10X/22mm, focusable with diopter adjustment (for Panthera C2)

Catalog: 1101001403531

(0)

In Stock!

Add to Cart

Motic 1101000300331 Didymium filter ( Diameter 45mm)

Catalog: 1101000300331

(0)

In Stock!

Add to Cart

Motic 1101001902431 Analyzer for EPI illuminator

Catalog: 1101001902431

(0)

In Stock!

Add to Cart

Motic 1101006700155 Tint Plate

Catalog: 1101006700155

(0)

In Stock!

Add to Cart

Motic 1101006700165 1/4 Retardation Plate

Catalog: 1101006700165

(0)

In Stock!

Add to Cart

Motic 1101001100643 360 Degrees Rotatable Analyzer

Catalog: 1101001100643

(0)

In Stock!

Add to Cart

Motic 1101011400041 LED module (Low color temperature, 3500 K)

Catalog: 1101011400041

(0)

In Stock!

Add to Cart

Motic 1101011400051 LED module (High color temperature, 5500 K)

Catalog: 1101011400051

(0)

In Stock!

Add to Cart

Motic 1101001200972 Dust cover

Catalog: 1101001200972

(0)

In Stock!

Add to Cart

Motic 1101001400141 Reticle with crosshair,25mm diameter

Catalog: 1101001400141

(0)

In Stock!

Add to Cart

Motic 1101001403581 Eyecup (unit)

Catalog: 1101001403581

(0)

In Stock!

Add to Cart

Motic 1101006700192 Empty Insertion Plate

Catalog: 1101006700192 ??

(0)

In Stock!

Add to Cart

Motic 1101006701052 Quartz Wedge

Catalog: 1101006701052

(0)

In Stock!

Add to Cart

Motic Panthera TEC-POL BINO - Binocular Microscope

Observation tube: Binocular head, Siedentopf type
Optical system: Colour Corrected Infinity Optical System (CCIS^®)
Inclination: 25º inclined
Interpupillary distance: 48-75mm
Intermediate body: Rotatable analyzer 360º, Bertrand lens and slot for compensators

The Panthera TEC POL series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Flexible Microscope System for Polarizing Materials

The Panthera TEC POL models present a high flexibility for the inspection of all kind of polarizing materials, for transparent samples as well as for opaque specimen from technical education environments and industrial quality control. Even transparent birefringent structures from biology and medicine (heart muscle cells, secondary cell walls, etc.) can be detected by the Full Koehler illumination with exchangeable LED/Halogen light source. In incident light, a 3W LED is integrated in a Brightfield illumination setup with Aperture and Field diaphragm.

The Panthera TEC POL models feature UC Plan Achromat objectives with focus on a strain-free mounting for maximum darkness of the image background. A 5-fold encoded nosepiece memorizes the light intensity for each objective position to replicate the illumination once the objective is swung in again.

The compact Epi illuminator carries a slot for polarizer and analyzer, ready to set up Polarization contrast and to reduce internal reflections. An Intermediate tube with focusable/centerable Bertrand lens is prepared for a conoscopic analysis of crystals and minerals in transmitted light. The extended 22mm Field of View (FOV) offers 21% more visual area in comparison to a basic 20mm FOV system. All trinocular versions (25° viewing angle) have a fixed beam split of 50/50 (visual/camera port).

The Panthera TEC POL models are clearly focused on material sciences. The 3W LED incident light source can easily be changed to different color temperatures (3500K/5500K). The incident/transmitted stands additionally carry a Full Koehler illumination with LED/Halogen interchangeability. The 360° rotatable stage runs smooth for an easy positioning of the sample, bringing interesting regions precisely into the crossing point of the eyepiece reticle.

Brilliant optics for significant image results, flexible setups with a smart illumination concept, models with integrated camera to document and to share images: The Panthera TEC POL series is ready to facilitate your daily work significantly.

A microscope is a powerful scientific instrument. Science education in teaching institutes and universities is deeply depending on this instrument. Organizationally and financially justified, the students/users share the common instruments of a classroom.

Besides the well-known procedures to maintain the performance, in Corona times additional care is needed to avoid spreading the virus. Time to update our care recommendations.

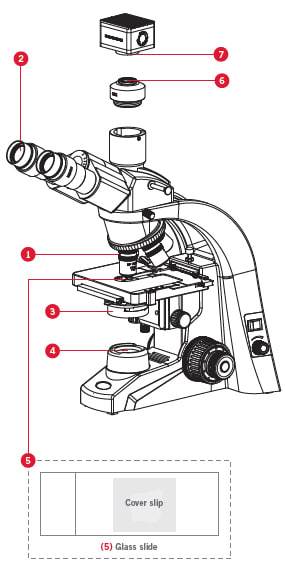

Important Microscope Contact Areas

The optical performance of a microscope mainly depends on clean lens and glass surfaces without dust, fingerprints or other skin lipids. Clear images are only possible if the following surfaces do not show any dirt.

Objectives
Eyepieces
Condenser
Collector cover glass
Glass slide including the cover slip
On the lenses of the camera adapter (C-mount)
On the protection glass (IR filter) of the camera sensor

Model	Panthera TEC POL Binocular
Observation tube	Binocular head, Siedentopf type
Optical system	Colour Corrected Infinity Optical System (CCIS^®)
Inclination	25º inclined
Interpupillary distance	48-75mm
Diopter adjustment	On both eyepieces, +/- 4 diopter
Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
Intermediate body	Rotatable analyzer 360º, Bertrand lens and slot for compensators
Nosepiece	Reversed quintuple, coded with single centering holes
Objective classification	CCIS^® UC Plan Achromatic (strain-free), DIN
Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
Objective mounting thread	W 4/5"x1/36" (RMS standard)
Stand type	Upright
Stage	Circular rotating 360º, lockable
Stage size	Ø160mm
Travel range X&Y	1º increments, 0,1º vernier scale
Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) with rotatable polarizer
Diaphragm	Iris diaphragm
Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision	2µm
Focusing stroke	25mm
Upper limit stop	Upper limit stop preset but adjustable
Filter holder	On top of the illuminator with fixing cap
Transmitted illumination	Koehler Quartz halogen 6V/30W with intensity control
Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
Transformer	Internal
Power supply	110-240V (CE)
Other features	USB 2.0 for external camera power
Accessories included	Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference color chart, screws for metal extension support
Dimensions LxWxH	410x300x395mm
Weight Net	10.4kg
Contrast techniques
Standard contrast technique	Brightfield, polarizing

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Body Style	Binocular
Illumination Type	LED
Eyepiece Magnification	10
Objective Lens Zoom Min	4 x
Objective Lens Zoom Max	60 x
Test Equipment General Attributes
Safety Approval	CE
Interfaces I/O	USB
Product Weight	23 LBS
Product Height	15.5 IN
Product Length	16 IN
Product Width	12 IN
Shipping Weight	26 LBS
Power Supply Voltage	110V, 240V Only
