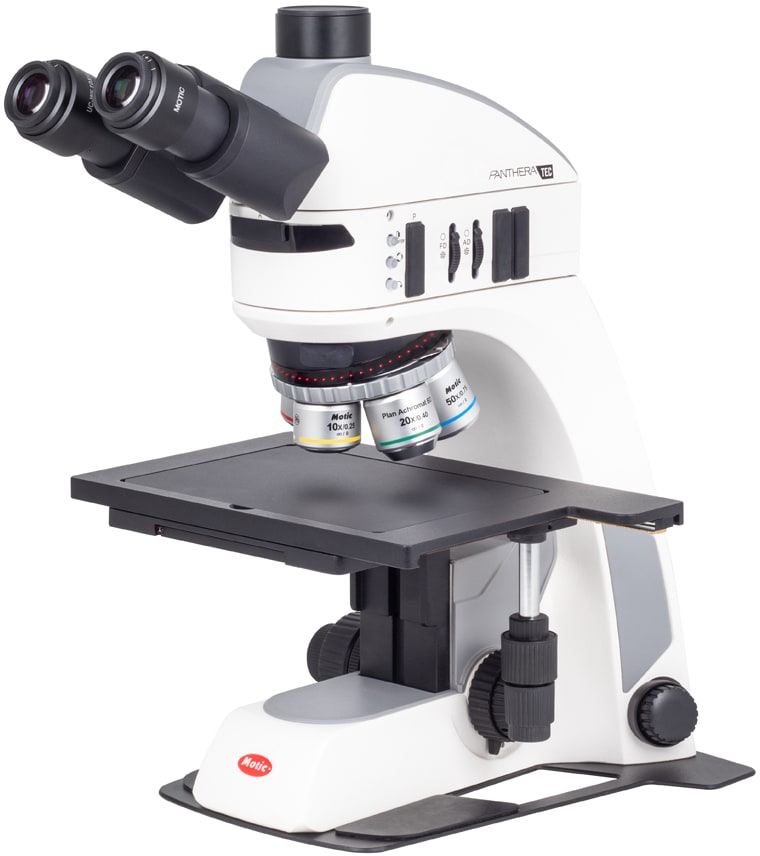

| Specifications |
| Optical system |
Colour Corrected Infinity Optical System (CCIS) |
| Observation tube |
Trinocular head, Siedentopf type, 360° swiveling |
| Inclination |
25° inclined, 360° swivelling |
| Trinocular light split |
Fixed 50:50 |
| Interpupillary distance |
48-75mm |
| Diopter adjustment |
On both eyepieces, +/- 4 diopter |
| Eyepieces |
Widefield UC-WF10X/22mm with diopter adjustment |
| Intermediate Body |
Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer |
| Nosepiece |
Reversed quintuple, coded |
| Objective classification |
CCIS BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield) |
| Objectives |
5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm) |
| Objective mounting thread |
M32 |
| Stand type |
Upright |
| Stage |
Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate |
| Stage size |
300x180mm |
| Travel range X&Y |
150x100mm (6"x4") |
| Focus mechanism |
Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision |
2µm |
| Focusing stroke |
25mm |
| Upper limit |
stop Upper limit stop preset but adjustable |
| Incident illumination |
LED 3W smart segmental ringlight with integrated field and aperture diaphragms |
| Illumination interchangeability |
LED color temperature interchangeability |
| Illumination features |
Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Transformer |
Internal |
| Power supply |
110-240V (CE) |
| Other features |
USB 2.0 for external camera power |
| Accessories included |
Dust cover, power cord, Allen key, screws for metal extension support |
| Dimensions LxWxH |
410x300x450mm |
| Net weight |
10.5kg |
