Trinocular Metallurgical Microscope with Reflected and Transmitted Illumination (BF and DF)

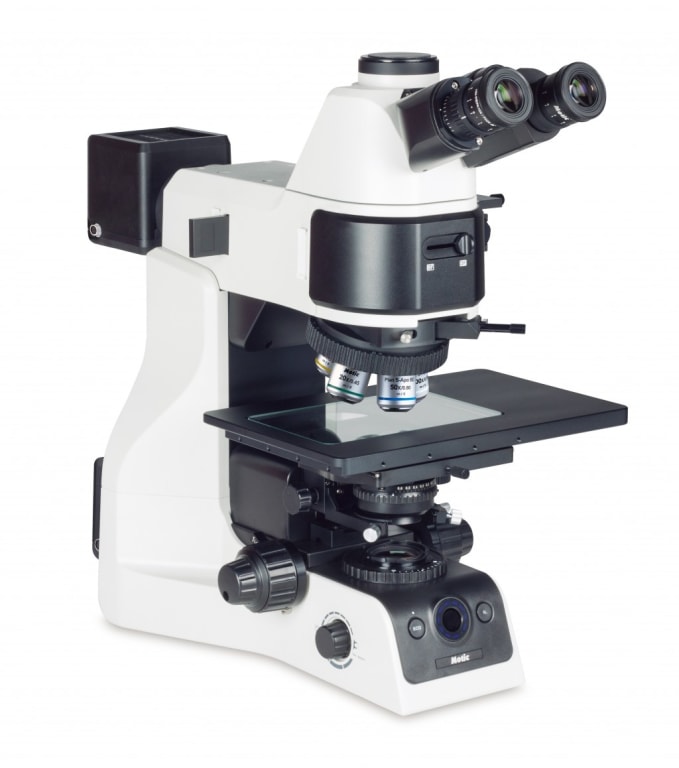

The Motic PA53MET-BD-T is a trinocular metallurgical microscope with a reflected intermediate illumination system for bright field and dark field observation, 100W halogen lamp house, transmitted illumination system with LWD condenser and widefield eyepieces with 10X magnification and 25mm field of view. The coded quintuple revolving nosepiece for BD features a slot for DIC. Plan S-APO BD objectives 5X, 10X, 20X, 50X are included. The PA53 MET-BD-T is highly modular and can be upgraded for motorized components including a motorized stage for low magnification tiling of large samples in the future.
Motic’s PA53 MET series microscopes offer solutions for industrial quality control and analysis of opaque materials. The Semi-Apochromatic objectives provide crisp, clear images. The incident illumination provides a variety of contrast methods - Brightfield, Darkfield, Polarization and DIC Contrast Methods uncover defects not otherwise seen in one lighting method alone.
