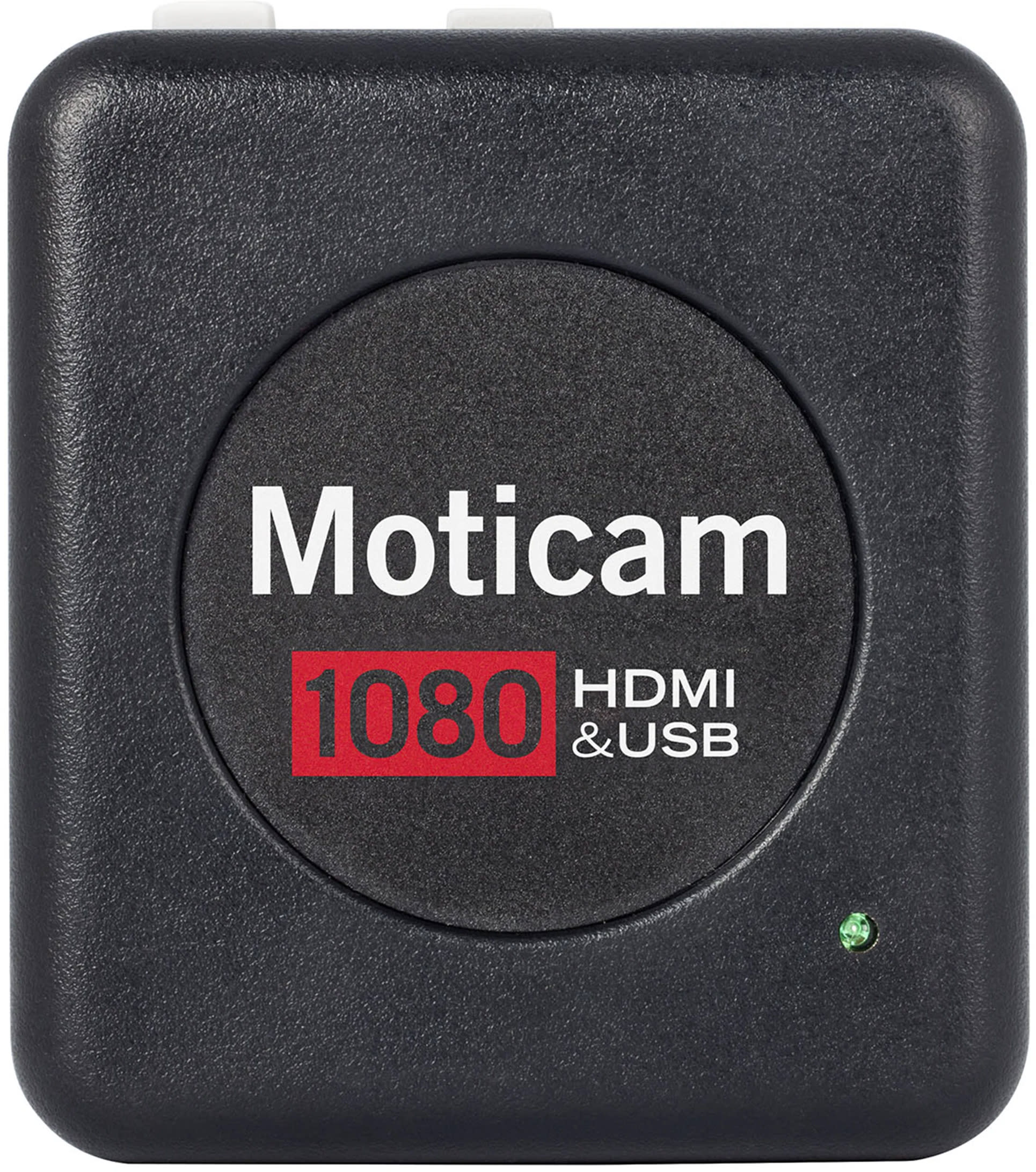

| Model Moticam 1080 Specifications |
| Sensor type |
CMOS |
| Sensor size |
1/2.8" |
| Imaging area |
5,346mm x 3,003mm |
| Capture resolution |
Still Image: 8.0MP (3840 x 2160) | Video: Full HD (1920 x 1080p) |
| Live display mode (through USB) |
1920 x 1080 (Full HD) |
| Live display mode (through HDMI) |
1920 x 1080 (Full HD) |
| Pixel size |
2.8μm x 2.8μm |
| Scan mode |
Progressive |
| Data transfer |
HDMI (1080p) and USB 2.0 |
| Max. Frames per second (fps*) |
USB: 1920 x 1080 (Full HD) @ 30 fps | HDMI: 1920 x 1080 (Full HD) @ 60 fps |
| Exposure time |
0.06ms ~ 40ms with Auto Exposure mode
(0.06ms ~ 999ms with Manual Exposure mode) |
| Operating temperature |
From -10 to +60 Degrees Celsius non condensing |
| Max. signal to noise ratio |
40dB |
| Dynamic range |
71dB |
| Sensitivity |
0.51V (Typical at 1/30 sec) |
| Slot |
SD Card (max 32Gb) |
| Buttons |
On / Off |
| Support device |
Twain and Direct Show Driver |
| Supported OS |
Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux |
| Minimum computer requirements |
2GHz dual-core | RAM memory 2GB | Video memory min. 512 MB |
| Lens mount |
C-Mount |
| Focusable lens |
12mm |
| Software |
On-board software Standard tools: still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery. Image adjustments (AE/AWB): Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode. Advanced settings: saturation, contrast, gamma, sharpness, denoise, user settings, system’s time setting, language (English, Chinese and Japanese), format SD card. |
| Power supply |
12V (External Power supply) |
