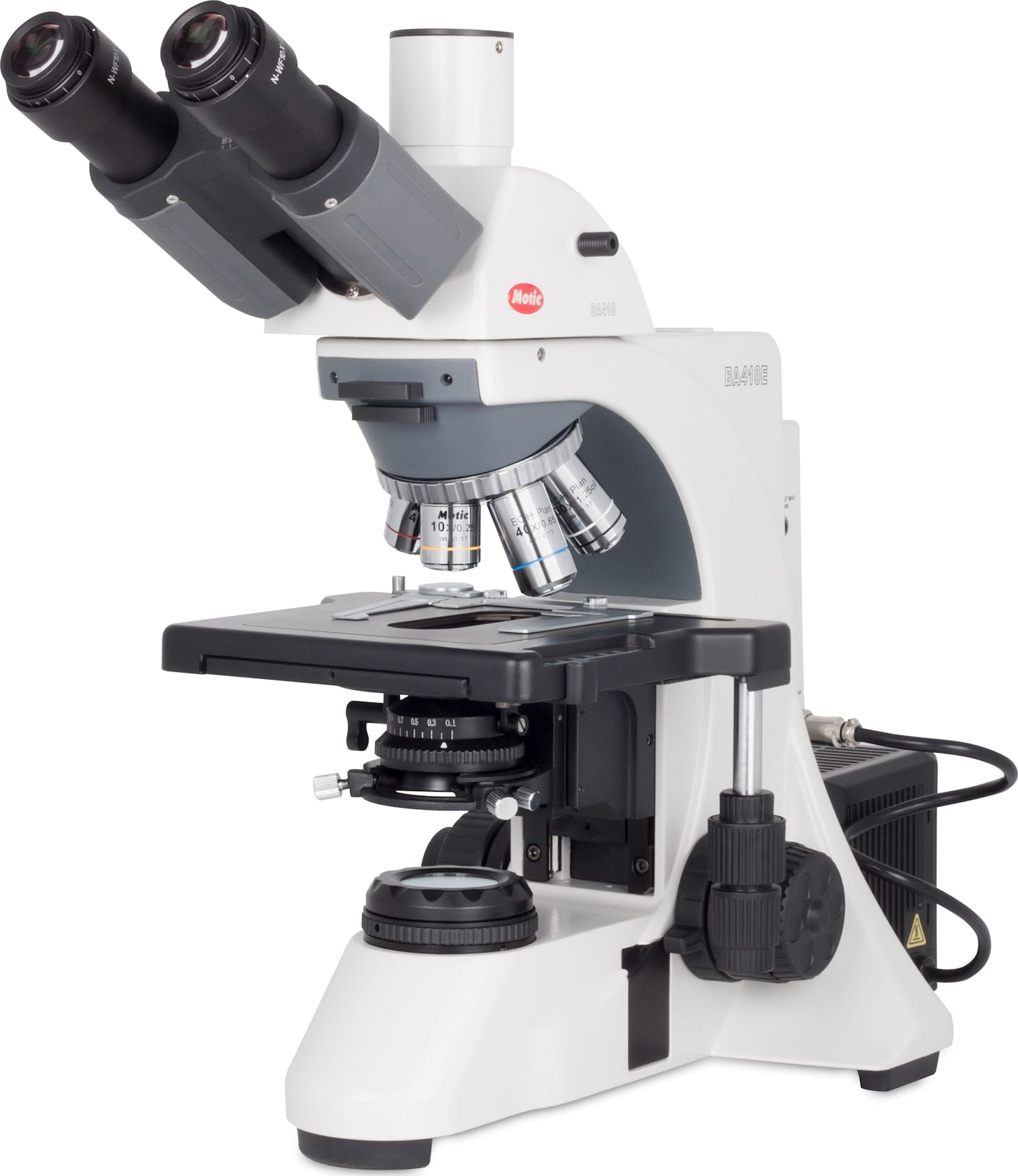

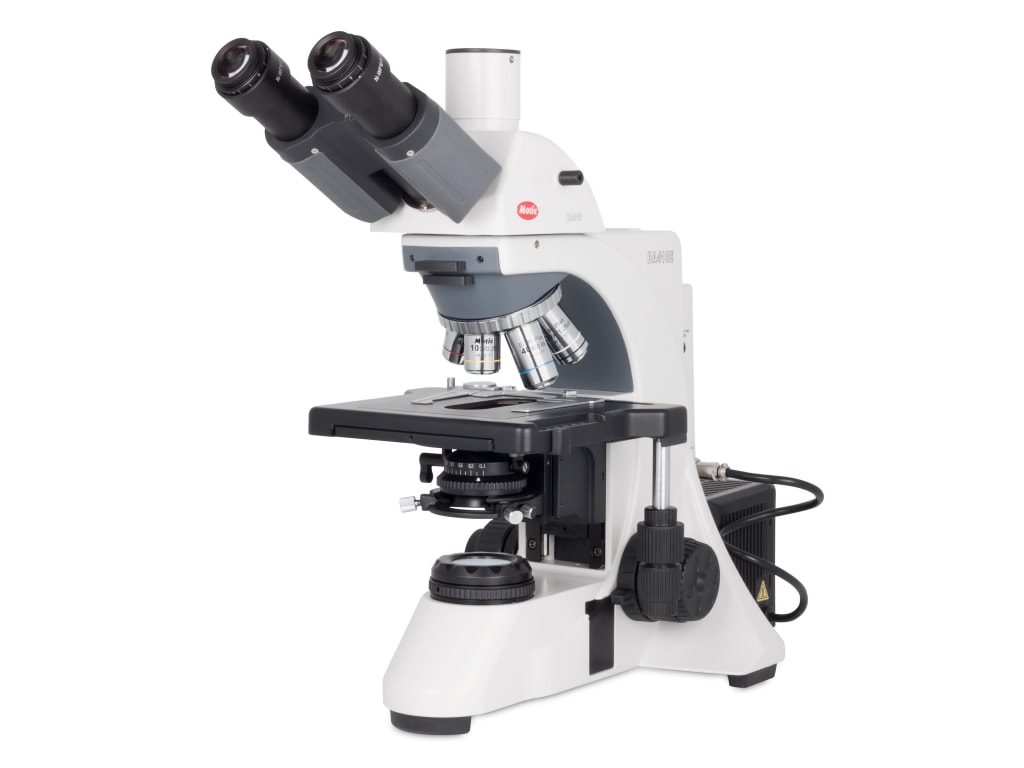

Trinocular Sextuple Microscope with LED Illumination
This version of the Motic BA410E is a sextuple microscope with a trinocular head and EC-H PL4X, EC-H PL10X, EC-H PL40X S, EC-H PL100X S-oil objectives for professional research. Universities and laboratories with applications in hematology, cytology, and histology will benefit from this flexible microscope platform with a superb performance in optics and mechanics.
Following Motic’s CCIS Infinity concept, the new Plan Apochromatic objectives may be chosen to get maximum image fidelity. Expanded resolution power in terms of numerical aperture and stunning color reproduction allows a reliable sample evaluation in all biomedical environments. The established EC-H Plan Achromatic bright field objectives are an integral part of the standard configurations, while Phase contrast is feasible with positive and negative Phase lenses.
The BA410E stand carries an encoded 6-fold nosepiece that memorizes the light intensity setting for each objective position. This light memory function replicates the last setting once the respective objective position is swung in again. The rackless stage without a prominent gear rack allows a safe and fast throughput of slides. A ceramic stage insertion withstands abrasion for a long lifetime.
