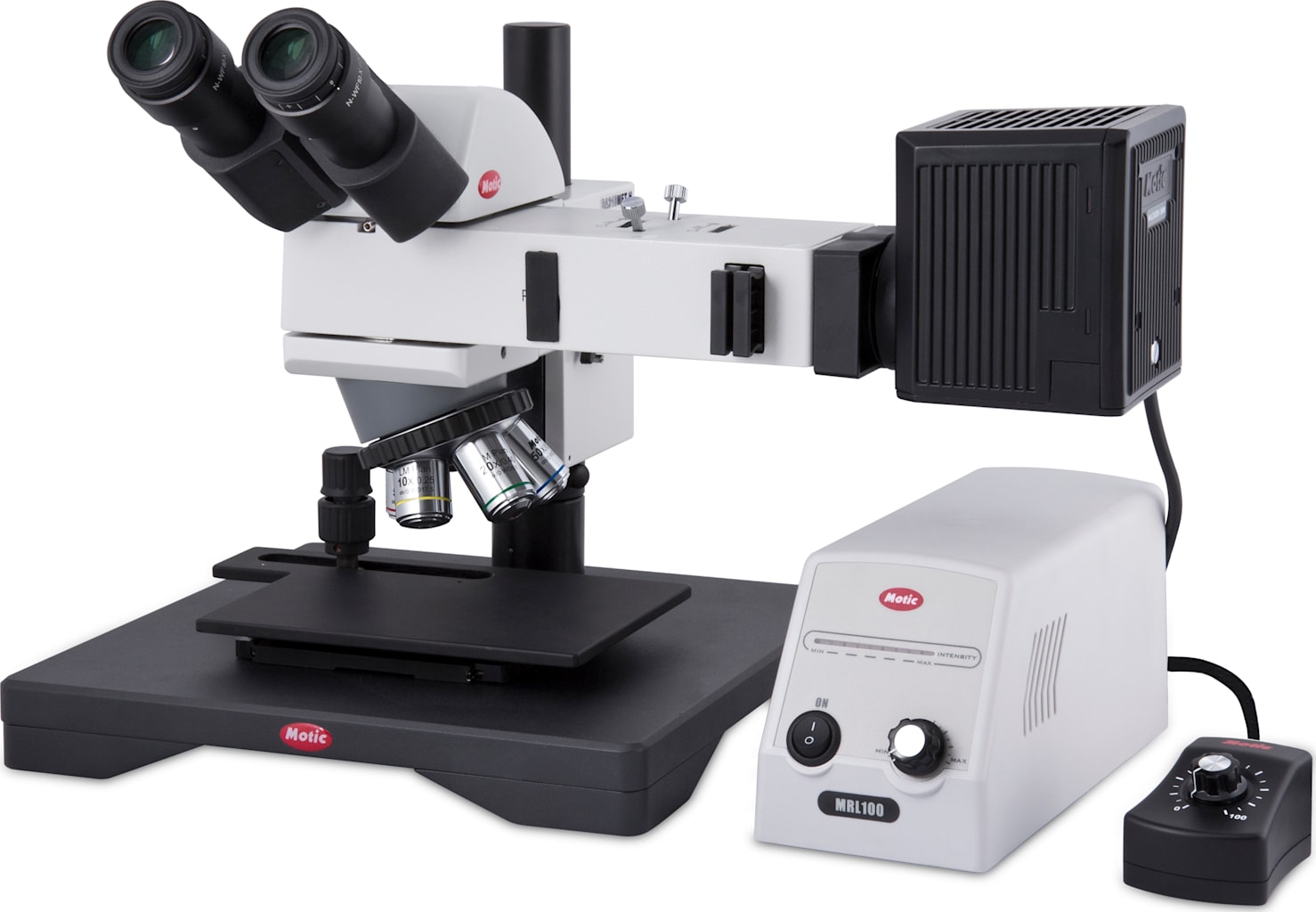

Motic BA310MET-H Binocular Compound Microscopes - Type (Microscopes): Compound, Body Style: Binocular, Illumination Type: Halogen

Name: Motic BA310MET-H Binocular Compound Microscopes - Type (Microscopes): Compound, Body Style: Binocular, Illumination Type: Halogen
Brand: Motic
SKU: MoticBA310MET-H Binocular
Price: 4120.20 USD
Availability: InStock

0 reviews | Catalog: 1100100403354 | UPC: 638267601595 | Model: Motic BA310MET-H Binocular

Compare

BA310MET-H

Metallurgical microscope
Binocular head
30 degree inclined eyepieces
Stage area 180mm x 140mm
Stage stroke 100mm x 80mm
12v/50w Halogen illumination
LM Plan objectives
- 5x, 10x, 20x, 50x

View Product Details

List Price: $4,578.00

Your Price: $4,120.20

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Motic BA310MET-H Binocular BA310MET-H	Motic BA310MET-H Trino Erect BA310MET-H	Motic BA310MET-H Trinocular BA310Met-H Trinocular
Price
In Stock
Type (Microscopes)	Compound	Compound	Compound
Body Style	Binocular	Trinocular	Trinocular
Illumination Type	Halogen	Halogen	Halogen
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Motic BA310MET-H Binocular Accessories

Choose a Category

for the Motic BA310MET-H Binocular

Motic 1101000300442 2.5X photo eyepiece (to be used with Photo Adapter)

Catalog: 1101000300442

(0)

In Stock!

Add to Cart

Motic 1101000300452 4X photo eyepiece (to be used with Photo Adapter)

Catalog: 1101000300452

(0)

In Stock!

Add to Cart

Motic 1101001901771 1X C-Mount camera adapter (No lens)

Catalog: 1101001901771

(0)

In Stock!

Add to Cart

Motic 1101001901781 0.65X C-Mount camera adapter for 2/3 chip sensors

Catalog: 1101001901781

(0)

In Stock!

Add to Cart

Motic 1101001901791 0.5X C-Mount camera adapter for 1/3 and 1/2 chip sensors

Catalog: 1101001901791

(0)

In Stock!

Add to Cart

Motic 1101001901931 Photo Adapter - requires photo eyepiece

Catalog: 1101001901931

(0)

In Stock!

Add to Cart

Motic 1101001402061 N-WF15X/16mm, focusable with diopter adjustment

Catalog: 1101001402061

(0)

In Stock!

Add to Cart

Motic 1101001402231 N-WF PL 10X/ 22mm, with diopter adjustment

Catalog: 1101001402231

(0)

In Stock!

Add to Cart

Motic 1101001403361 N-WF10X/20mm, focusable with diopter adjustment

Catalog: 1101001403361

(0)

In Stock!

Add to Cart

Motic 1101000300341 Green filter ( Diameter 32mm) for EPI illuminator

Catalog: 1101000300341

(0)

In Stock!

Add to Cart

Motic 1101000301141 Yellow filter ( Diameter 32mm) for EPI illuminator

Catalog: 1101000301141

(0)

In Stock!

Add to Cart

Motic 1101000500172 Blue filter ( Diameter 32mm) for EPI illuminator

Catalog: 1101000500172

(0)

In Stock!

Add to Cart

Motic 1101001902431 Analyzer for EPI illuminator

Catalog: 1101001902431

(0)

In Stock!

Add to Cart

Motic 1101001904201 Slideglass holder for BA310Met-T

Catalog: 1101001904201

(0)

In Stock!

Add to Cart

Motic 1101001904211 4-inch rotatable wafer holder

Catalog: 1101001904211

(0)

In Stock!

Add to Cart

Motic 1101001200972 Dust cover

Catalog: 1101001200972

(0)

In Stock!

Add to Cart

Motic 1101000201981 12V/3W LED module for EPI illuminator (4500K)

Catalog: 1101000201981

(0)

In Stock!

Add to Cart

Motic 1101000201982 12V/3W LED module for EPI illuminator (6000K)

Catalog: 1101000201982

(0)

In Stock!

Add to Cart

Motic 1101001904031 EPI illuminator with quartz halogen 12V/50W

Catalog: 1101001904031

(0)

In Stock!

Add to Cart

Motic 1101001904051 3W LED module, (4500K color temperature)

Catalog: 1101001904051

(0)

In Stock!

Add to Cart

Motic 1101001904061 3W LED Module (6000K color temperature)

Catalog: 1101001904061

(0)

In Stock!

Add to Cart

Motic 1101001704392 LM Plan objective 5X / 0.13 (WD=20.3mm) (upright)

Catalog: 1101001704392

(0)

In Stock!

Add to Cart

Motic 1101001704402 LM Plan objective 10X / 0.25(WD=17.5mm) (upright)

Catalog: 1101001704402

(0)

In Stock!

Add to Cart

Motic 1101001704512 LM Plan objective 100X / 0.8 (WD=2mm) (upright)

Catalog: 1101001704512

(0)

In Stock!

Add to Cart

Motic 1101001704601 LM Plan objective 20X / 0.4 (WD=8.1mm) (upright)

Catalog: 1101001704601

(0)

In Stock!

Add to Cart

Motic 1101001704611 LM Plan objective 50X / 0.55 (WD=8.4mm) (upright)

Catalog: 1101001704611

(0)

In Stock!

Add to Cart

Motic 1101001704621 EC-M Plan objective 20X /0.45 (WD= 1 mm)

Catalog: 1101001704621

(0)

In Stock!

Add to Cart

Motic 1101001704631 EC-M Plan objective 50X /0.75 (WD= 0.48mm)

Catalog: 1101001704631

(0)

In Stock!

Add to Cart

Motic 1101001903432 Siedentopf trinocular eyepiece tube 30 Degrees inclined, 360...

Catalog: 1101001903432

(0)

In Stock!

Add to Cart

Motic 1101001903541 Siedentopf binocular eyepiece tube 30 Degrees inclined, 360...

Catalog: 1101001903541

(0)

In Stock!

Add to Cart

Motic 1101001904551 Siedentopf Trinocular eyepiece tube 30 Degrees inclined (Light...

Catalog: 1101001904551

(0)

In Stock!

Add to Cart

The Motic BA310MET-H is a metallurgical microscope for industrial quality control, as well as the education of engineering students and material related studies. The BA310MET-H brings ease and efficiency to the study of opaque material, including metals, minerals, and much more. This model also contains a more flexible focusing system, designed for use with larger samples.

Illumination is provided by Motic’s Epi-Illuminator, containing a 12v/50w Halogen lamp. And to maximize versatility, Motic has designed the light source to also accept an LED module. Two LED sources are available, each with differing color temperatures, 4500K and 6000K. Furthermore, the unit’s power supply is separate from the stand to avoid unnecessary heat around the microscope and sample.

The BA310MET-H also includes the new LM Plan objectives, specially designed for long working distances. The LM Plan objectives are built with high quality optical glass and contain a multi layer lens coating, providing improved contrast and image reproduction. For users with advanced resolution needs, Motic offers its EC-M Plan objectives in 20x and 50x magnifications.

Standard eyepieces are the N-WF 10x/20, with a high eyepoint for eyeglass wearers. Diopter adjustment is possible on both sides, and reticles are also available for applications with measurement and counting.

Model: 1100100402554 Specifications
Description	BA310 MET-H Binocular
Optical System	Colour Corrected Infinity Optical System (CCIS®)
Observation tube	Binocular head, 360º swiveling
Interpupillary distance	48-75mm
Inclination	30° inclined
Eyepieces	N-WF10X/20mm with diopter adjustment, +/- 5 diopter, cross reticle on one eyepiece
Nosepiece	Reversed quintuple revolving nosepiece
Objective classification	Infinity Corrected CCIS LM Plan Achromatic, DIN 45mm
Objectives	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.4 (WD 8.1mm), 50X/0.55 (WD 8.4mm)
Objective mounting thread	W 4/5" x 1/36" (RMS standard)
Body type	Pole stand with stage and focusing block
Stand size	300x300mm
Stage	Mechanical stage, hard coated with built-in low position coaxial stage control
Stage size	180x140mm
Mechanical stage X&Y range	100x80mm
Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
Fine Focus precision	2 µm minimum increment
Z-axis movement	30mm
Illumination	Epi-illuminator 12V/50W Quartz Halogen or 3W LED with integrated field and aperture diaphragms and external lamp house
Transformer	External
Power supply	100-240V (CE)
Dimensions	369x485x355mm
Weight	15.5kg

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Compound
Body Style	Binocular
Illumination Type	Halogen
Magnification max	500 x
Magnification min	50 x
Test Equipment General Attributes
Product Weight	34.17 LBS
Product Height	355 MM (13.98 IN)
Product Width	369 MM (14.53 IN)
Country of Origin	China
