0 reviews | Catalog: 1100100403781 | Model: Motic BA210E LED Trinocular

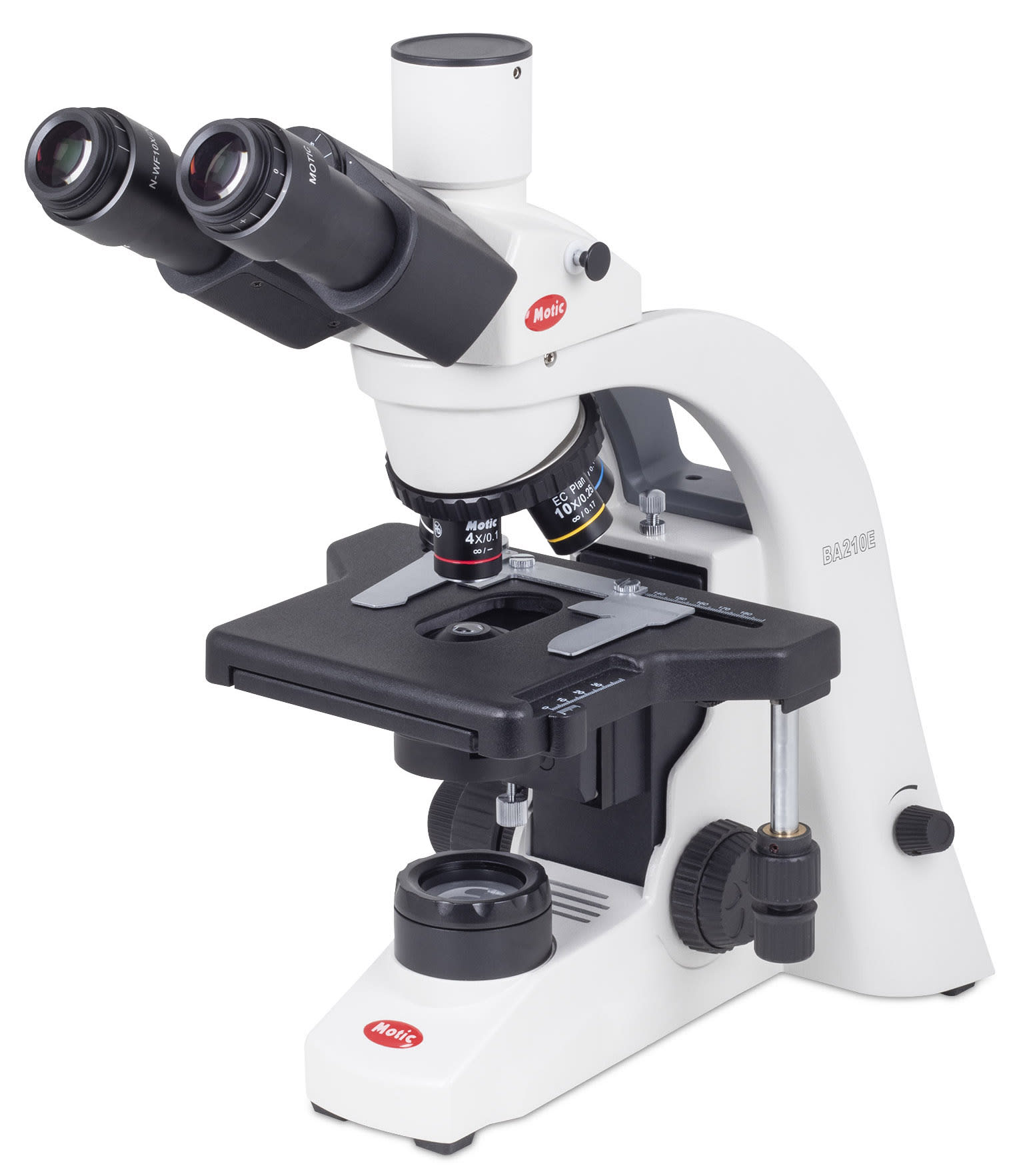

BA210E LED Trinocular
List Price: $1,578.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
Motic’s BA210E is dedicated to give an answer on basic demands from educational and biomedical laboratory work. The upgraded EC Plan Achromatic objectives in our CCIS© Infinity Concept deliver a fully corrected intermediate image for crisp and clear results within a 20mm Field of View. The rackless stage enables a safe x/y scanning even for the unexperienced user. The 30W Halogen light source in a Fixed-Koehler setup can simply be replaced by LEDs of different color temperatures. The BA210E is ready to be upgraded with Phase contrast, Polarization, Darkfield and even LED Fluorescence. This robust upright microscope brings professional image results to all intended applications. The LED module is specially designed to be inserted into halogen bulb socket directly converting halogen illumination to LED illumination. LED is more economical and environmental friendly and combines the advantages of low heat and long life span.
The complete series of EC Plan Achromatic objectives, from 4X to 100X magnification, is achieving an improved image contrast both for human eye and digital cameras through the photo port. Especially in Phase contrast, the optional objectives (positive & negative Phase) show a remarkable performance for a wide range of applications. The N-WF eyepieces start with the standard 10X/20 mm Field of View and provide a diopter adjustment (+/-5dpt) for both eyes, ready for the use of optional reticles.
Motic's BA210E is designed for a demanding daily usage. The rackless stage allows a safe evaluation of samples without prominent gear rack. The standard eyepiece tubes feature a 30° viewing angle for maximum comfort, whereas the interpupillary distance of 55-75mm can easily be adjusted, following individual conditions. The trinocular tube option with a 100:0 / 20:80 light split allows the adaption of digital camera systems and the presentation of microscopic images to a larger public.
The BA210E microscope features an interchangeable illumination. It comes standard with a 30W Halogen illumination system in a Fixed Koehler setup, but the Halogen light source can easily be replaced by LED modules of different color temperatures. The importance of LED illumination as a safe and long-term light source has increased especially in teaching environments at the expense of Halogen bulbs, due to its long lifetime and reduced heat production. The high-quality condenser with NA 1.25 and aperture diaphragm guarantees the visualization of weakly or non-stained samples.
The BA210E is an integral part of Motic’s BA microscope concept. An upgrade with Phase contrast (positive & negative), Darkfield, Polarization and even LED Fluorescence can easily be performed. The BA210E exceeds the limits of a basic upright microscope, allowing to use contrast methods for specific application fields even in teaching environments with limited resources.
