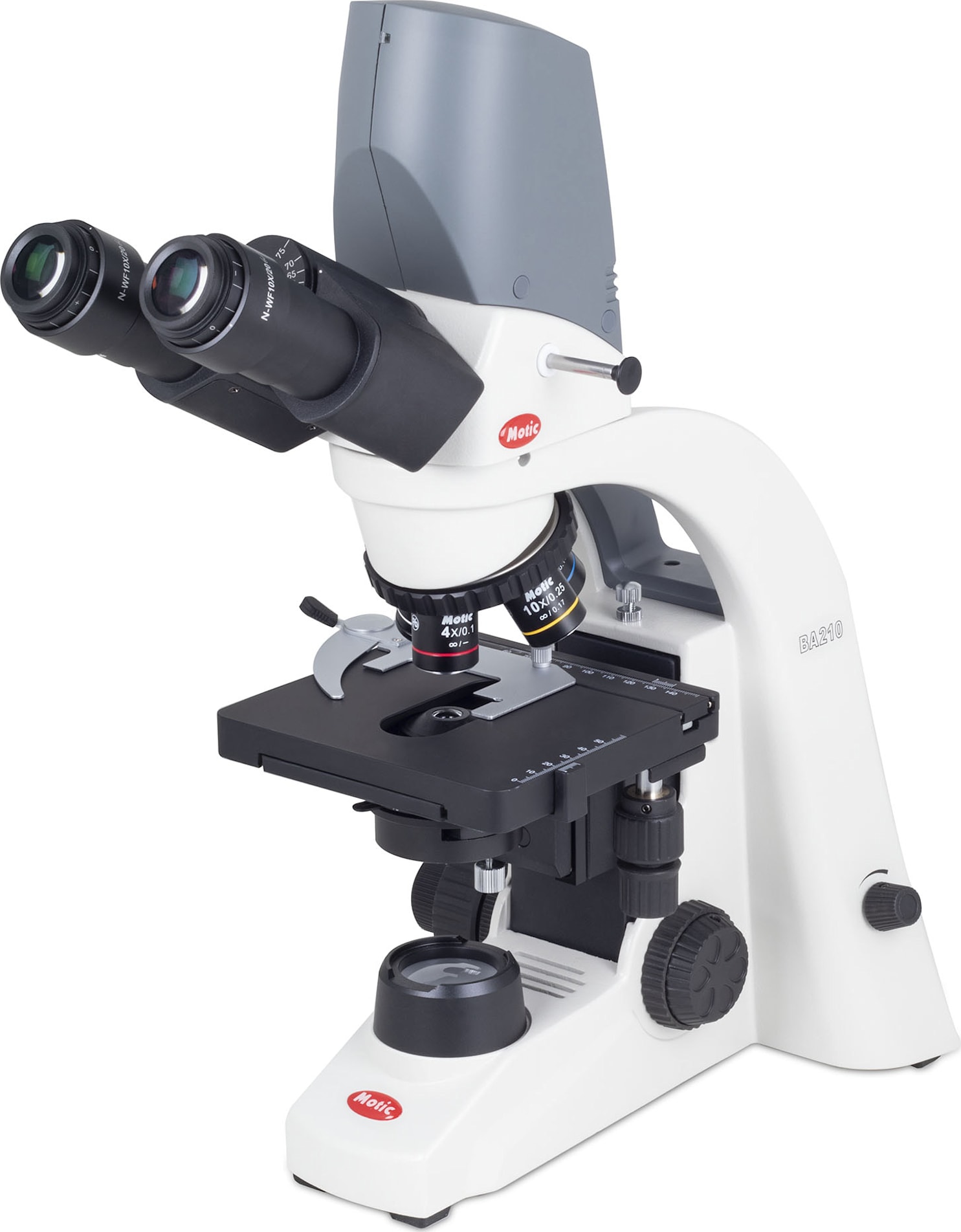

0 reviews | Catalog: 1100401200771 | Model: Motic BA210 DIGITAL LED
BA210 Digital LEDWidefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)Built-in Digital Live Hi-Res Imaging Chip2592 x 1944 Resolution USB 2.0Reversed quadruple revolving nosepieceCCIS EC Plan Achromat objectives 4x, 10x, 40x S, 100x S-oilCoaxial coarse and fine focusing adjustmentBuilt in low position coaxial mechanical stage (Right-hand control)Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot45mm blue filter, immersion oil (5mL), power cord, allen hexagonal key, Vinyl dust coverBuilt in illumination 3W LED with intensity controlUniversal Power Supply 100-240V Images Plus 3.0 for PC and MACCalibration Slide
List Price: $2,680.00
Your Price: $2,412.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The BA210 Digital is the perfect digital microscope as a teaching, training and analysis station. The complete closed system ensures no hassle with adapters or risk of getting dust on any of the optical parts. A 3.0 Mpixel CMOS chip is integrated into the head of the BA210 Digital providing crisp and clear images. The USB 2.0 output ensures fast data streaming to the computer. Motic also includes the basic but sophisticated Motic Images Plus 2.0 Multi-Language software, allowing you to share, capture, archive, make video recordings and accurate measurements of your samples. This is the first 3W microscopic illumination system with a global patent for long life, adjustable high intensity, low heat generation, low energy consumption and safe operation.
Motic's BA210 is designed for demanding educational environments. The hard-coated stage allows a safe and durable evaluation of diverse samples. The BA210 standard eyepiece tubes feature a 30° viewing angle for maximum comfort. The interpupillary distance of 55-75mm can easily be adjusted, following individual conditions. The trinocular tube option with a 20/80 light split if activated allows the adaption of digital camera systems and the presentation of microscopic images to a larger public.
The complete series of EC Plan Achromatic objectives, from 4X to 100X magnification, is targeting an improved image contrast both for the human eye and digital camera sensor through the photo port. Especially in Phase contrast, the optional objectives (positive & negative Phase) show a remarkable diversity for a wide range of applications. The N-WF eyepieces start with the standard 10X/20 mm Field of View and provide a diopter adjustment (+/-5dpt) for both eyes, ready for the use of optional reticles.
The BA210 microscope features a well-evaluated 3W LED illumination system in a Fixed Koehler setup. The importance of LEDs as safe and long-term illumination sources has increased especially in teaching environments as lifetime and reduced heat production is superior to Halogen bulbs. For fieldwork without mains supply, an optional mirror can be attached. A high-quality condenser with NA 1.25 and aperture diaphragm is implemented for visualization of weakly or non-stained samples.
For further use of optional accessories, the BA210 is integrated into Motic’s Upright microscope system. An upgrade with Phase contrast (positive and negative) in a slider solution, simple Darkfield as well as Polarization contrast for the detection of birefringence can easily be performed. The BA210 easily exceeds the limits of a basic upright microscope, allowing advanced contrast methods for teaching environments within a small budget.
