Motic AE31 Elite Binocular Compound Microscopes - Type (Microscopes): Compound, Body Style: Binocular, Illumination Type: Halogen

Name: Motic AE31 Elite Binocular Compound Microscopes - Type (Microscopes): Compound, Body Style: Binocular, Illumination Type: Halogen
Brand: Motic
SKU: MoticAE31 Elite Binocular
Price: 3316.50 USD
Availability: InStock

0 reviews | Catalog: 1100100200562 | UPC: 638267649658 | Model: Motic AE31 Elite Binocular

Compare

AE31E 30W Binocular Inverted Microscope

Inverted microscope
Binocular head
Commonly used in microbiology
Illumination - 6v/30w Halogen
Halogen and LED are interchangeable
Optional Fluorescence module available

View Product Details

List Price: $3,685.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Motic AE31 Elite Binocular

Motic 1101000300442 2.5X photo eyepiece (to be used with Photo Adapter)

Catalog: 1101000300442

(0)

In Stock!

Add to Cart

Motic 1101000300452 4X photo eyepiece (to be used with Photo Adapter)

Catalog: 1101000300452

(0)

In Stock!

Add to Cart

Motic 1101001901771 1X C-Mount camera adapter (No lens)

Catalog: 1101001901771

(0)

In Stock!

Add to Cart

Motic 1101001901781 0.65X C-Mount camera adapter for 2/3 chip sensors

Catalog: 1101001901781

(0)

In Stock!

Add to Cart

Motic 1101001901791 0.5X C-Mount camera adapter for 1/3 and 1/2 chip sensors

Catalog: 1101001901791

(0)

In Stock!

Add to Cart

Motic 1101001901931 Photo Adapter - requires photo eyepiece

Catalog: 1101001901931

(0)

In Stock!

Add to Cart

Motic 1101001904111 0.35X C-mount camera adpater for 1/3 inch chip sensors

Catalog: 1101001904111

(0)

In Stock!

Add to Cart

Motic 1101000200252 Well plate holder (132 x 88 mm)

Catalog: 1101000200252

(0)

In Stock!

Add to Cart

Motic 1101000200262 65mm Petri dish holder

Catalog: 1101000200262

(0)

In Stock!

Add to Cart

Motic 1101000201561 6000K LED Bulb Module

Catalog: 1101000201561

(0)

In Stock!

Add to Cart

Motic 1101000201562 4500K LED Bulb Module

Catalog: 1101000201562

(0)

In Stock!

Add to Cart

Motic 1101001703091 CCIS Plan Achromat Phase PL Ph1 10X, N.A. 0.25 / W.D. 4.1

Catalog: 1101001703091

(0)

In Stock!

Add to Cart

Motic 1101001703102 CCIS Plan Achromat Phase LWD PL Ph1 20X, N.A. 0.3 / W.D. 4.7

Catalog: 1101001703102

(0)

In Stock!

Add to Cart

Motic 1101001703112 CCIS Plan Achromat Phase LWD PL Ph1 40X, N.A. 0.5 / W.D. 3.0

Catalog: 1101001703112

(0)

In Stock!

Add to Cart

Motic 1101001703251 CCIS Plan Achromat LWD PL 20X N.A.0.3 / W.D. 4.7

Catalog: 1101001703251

(0)

In Stock!

Add to Cart

Motic 1101001703261 CCIS Plan Achromat LWD PL 40X N.A. 0.5 / W.D. 3

Catalog: 1101001703261

(0)

In Stock!

Add to Cart

Motic 1101001703271 CCIS Plan Achromat PL 10X N.A. 0.25 / W.D. 16.8

Catalog: 1101001703271

(0)

In Stock!

Add to Cart

Motic 1101001703281 CCIS Plan Achromat Phase PL Ph0 4X, N.A. 0.10 / W.D. 12.6

Catalog: 1101001703281

(0)

In Stock!

Add to Cart

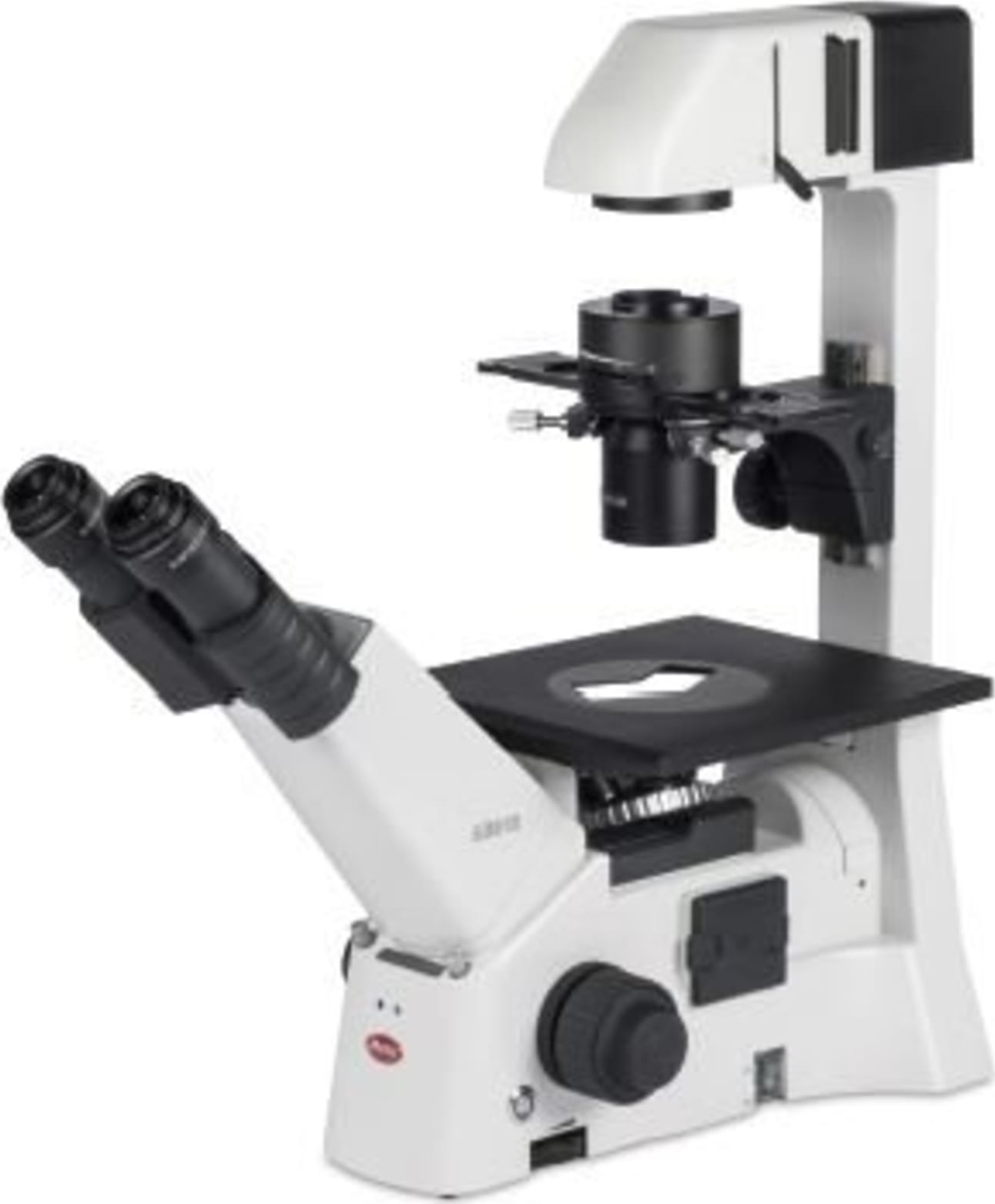

The Motic AE31 Elite is an inverted microscope for professional and university applications. Commonly used in microbiology, it can be found in pharmaceutical and clinical laboratories, as well as research facilities and higher education. Built to withstand constant daily use, the AE31E will provide years of high quality and dependability.

The AE31E features newly redesigned Plan Achromatic objectives, designed for long working distances and phase contrast. Motic has created a phase contrast system to be user friendly – one illumination ring will cover 10x to 40x magnifications, with no need to adjust the phase slider ring. The optional 4x phase objective uses ring Ph0 and is dedicated for fast and efficient sample screening.

Illumination is provided by a 6v/30w Halogen lamp, with full Koehler configuration. The AE31E also features light memory function, where illumination intensity for each objective position is stored, and then reactivated when that objective is brought back in. And to maximize versatility, the Halogen lamps are interchangeable with two optional LED modules having color temperatures of 4500K and 6000K. Therefore, users can have multiple illumination sources with just one microscope.

The AE31E can also be equipped with an optional fluorescence system. This carries up to three filter cubes, with many different filters available, from NIR to UV. Containing band pass filters, multi color stainings can also be treated. The fluorescence attachment contains a 100w HBO lamp house with integrated mirror for increased light intensity, creating brighter signals for powerful excitation.

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Compound
Body Style	Binocular
Illumination Type	Halogen
Magnification max	200 x
Magnification min	40 x
