Motic 1100100500691

Name: Motic 1100100500691
Brand: Motic
SKU: Motic1100100500691
Price: 1629.90 USD
Availability: InStock

0 reviews | Catalog: 1100100500691 | UPC: 638267601847 | Model: Motic 1100100500691

Compare

B3 Clinlab

30° inclined Trinocular Siedentopf head for comfortable viewing while seated, rotates 360°
Light split 100:0/20:80
Widefield eyepieces WF10X/20mm
Interpupillary distance adjustment between 55 and 75mm
Revolving quintuple reverse-mounted nosepiece with positive click stops for precise magnification changes
Plan Achromatic objectives, par focal and par centric 4X/0.10, 10X/0.25, 40X/0.65 – Spring, 100X/1.25 – Spring/Oil
Coaxial coarse and fine focusing system with 2 micron minimum increment with upper limit stop to prevent damage to slides and objectives
Vertical travel range 27mm
Focus tension adjustment prevents stage drift
Large 140mm X 135mm mechanical stage with low-position coaxial controls. Travel range 78 X 50mm. Sample clip can hold 2 slides.
Rack & Pinion mounted, centrable 1.25 N.A. Abbe condenser with iris diaphragm and filter holder
12V/20W Halogen Köhler illumination with intensity adjustment

View Product Details

List Price: $1,811.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories
Objectives

for the Motic 1100100500691

Motic 1101000300891 Special 5-hole turret type Abbe condenser 1.25 N.A. with choices for

Catalog: 1101000300891

(0)

In Stock!

Add to Cart

Motic 1101001400353 Micrometer eyepiece WF10X / 18mm, 100 divisions in 10mm

Catalog: 1101001400353

(0)

In Stock!

Add to Cart

Motic 1101001400572 Widefield eyepiece WF20X / 11mm

Catalog: 1101001400572

(0)

In Stock!

Add to Cart

Motic 1101001701031 Plan phase objective PL PH 10X / 0.25

Catalog: 1101001701031

(0)

In Stock!

Add to Cart

Motic 1101001701421 Plan phase objective PL PH 40X / 0.65 / S

Catalog: 1101001701421

(0)

In Stock!

Add to Cart

Motic 1101001701562 Achromatic super contrast objective ASC 40X / 0.65 / S

Catalog: 1101001701562

(0)

In Stock!

Add to Cart

Motic 1101001401791 CCIS EC-H PL 20X/ 0.40

Catalog: 1101001401791

(0)

In Stock!

Add to Cart

Motic 1101001401801 CCIS EC-H PL 40X/ 0.65/ S

Catalog: 1101001401801

(0)

In Stock!

Add to Cart

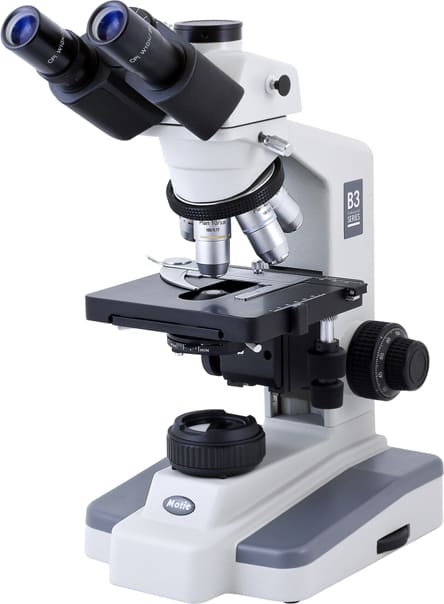

The Motic B3 Clinlab Professional Biological Microscope is a more advanced B3 series that offers features for the more demanding user. A standard Siedentopf head configuration allows for interpupillary distance adjustment without the need for refocusing. The superior Koehler Illumination System offers sample illumination, making this series ideal for Lab work. Combined with either ASC Achromatic Super Contrast or Plan Achromatic Objectives, this series have an unbeatable price-quality ratio.

Model: 1100100500691 Specifications
Type	Binocular
Eyepieces	Huygens eyepiece : H5X / 14.5 mm Widefield eyepiece WF10X / 20 mm Widefield eyepiece WF15X / 12 mm Widefield eyepiece WF20X / 11 mm
Micrometer eyepieces	Micrometer eyepiece WF10X / 20 mm, 100 divisions in 10 mm Reticle (for 20 mm eyepiece), 100 divisions in 10 mm Reticle holder
Plan Objectives -PL	Plan objective PL 4X / 0.10 Plan objective PL 10X / 0.25 Plan objective PL 20X / 0.40 Plan objective PL 40X / 0.65 / S Plan objective PL 60X / 0.85 / S Plan objective PL 100X / 1.25 / S-Oil
Achromatic Super Contrast Objectives(ASC)	Achromatic Super Contrast Objective ASC 4X / 0.10 Achromatic Super Contrast Objective ASC 10X / 0.25 Achromatic Super Contrast Objective ASC 40X / 0.65 / S Achromatic Super Contrast Objective ASC 100X / 125 / S-Oil
Plan phase Objective - PL PH	Plan Phase Objective PL PH 10X / 0.25 Plan Phase Objective PL PH 20X / 0.40 Plan Phase Objective PL PH 40X / 0.65 Plan Phase Objective PL PH 100X / 0.65
Phase contrast and darkfield accessories	10X phase contrast attachment (simple plug in type) 40X phase contrast attachment (simple plug in type) Centering telescope Special 5-hole turret type Abbe condenser 1.25 N.A. with choices for phase contrast 10X, 20X, 40X, 100X and brightfield Complete phase contrast set including: plan objectives PL PH 10X, 20X, 40X S and 100X-S / Oil, turret type Abbe condenser 1.25 N.A. and centering telescope Darkfield attachment (simple plug in type)
Polarizing accessories	Polarizing Set B.209
Photo and C-mount camera adapters	2.5X SLR Projection Lens 4X SLR Projection Lens 0.5X C-mount camera adapter for 1/3" chip sensors 0.6X C-mount camera adapter for 1/2" chip sensors
Spare Parts	Blue filter Green filter Yellow filter Eyecups (pair) Dust Cover (size C) Mirror and fork attachment Aluminum box
Spare Bulbs	Halogen bulbs 12V / 20 W
