Motic 1100100500641

Name: Motic 1100100500641
Brand: Motic
SKU: Motic1100100500641
Price: 1146.60 USD
Availability: InStock

0 reviews | Catalog: 1100100500641 | UPC: 638267601823 | Model: Motic 1100100500641

Compare

Trinocular head siedentopf type inclined 30 and 360 rotating

30° inclined Trinocular Sidedntopf head for comfortable viewing while seated, rotates 360°
Light split 100:0/20:80
Widefield eyepieces WF10X/20mm
Interpupillary distance adjustment between 55 and 75mm
Revolving quintuple reverse-mounted nosepiece with positive click stops for precise magnification changes
Achromatic Super Contrast objectives, parfocal and parcentric 4X/0.10, 10X/0.25, 40X/0.65 – Spring, 100X/1.25 – Spring/Oil
Coaxial coarse and fine focusing system with 2 micron minimum increment with upper limit stop to prevent damage to slides and objectives
Vertical travel range 27mm
Focus tension adjustment prevents stage drift
Large 140mm X 135mm mechanical stage with low-position coaxial controls. Travel range 78 X 50mm. Sample clip can hold 2 slides.
Rack & Pinion mounted, centrable 1.25 N.A. Abbe condenser with iris diaphragm and filter holder
12V/20W Halogen Köhler illumination with intensity adjustment

View Product Details

List Price: $1,274.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories
Objectives

for the Motic 1100100500641

Motic 1101000300891 Special 5-hole turret type Abbe condenser 1.25 N.A. with choices for

Catalog: 1101000300891

(0)

In Stock!

Add to Cart

Motic 1101001400353 Micrometer eyepiece WF10X / 18mm, 100 divisions in 10mm

Catalog: 1101001400353

(0)

In Stock!

Add to Cart

Motic 1101001400572 Widefield eyepiece WF20X / 11mm

Catalog: 1101001400572

(0)

In Stock!

Add to Cart

Motic 1101001701031 Plan phase objective PL PH 10X / 0.25

Catalog: 1101001701031

(0)

In Stock!

Add to Cart

Motic 1101001701421 Plan phase objective PL PH 40X / 0.65 / S

Catalog: 1101001701421

(0)

In Stock!

Add to Cart

Motic 1101001701562 Achromatic super contrast objective ASC 40X / 0.65 / S

Catalog: 1101001701562

(0)

In Stock!

Add to Cart

Motic 1101001401791 CCIS EC-H PL 20X/ 0.40

Catalog: 1101001401791

(0)

In Stock!

Add to Cart

Motic 1101001401801 CCIS EC-H PL 40X/ 0.65/ S

Catalog: 1101001401801

(0)

In Stock!

Add to Cart

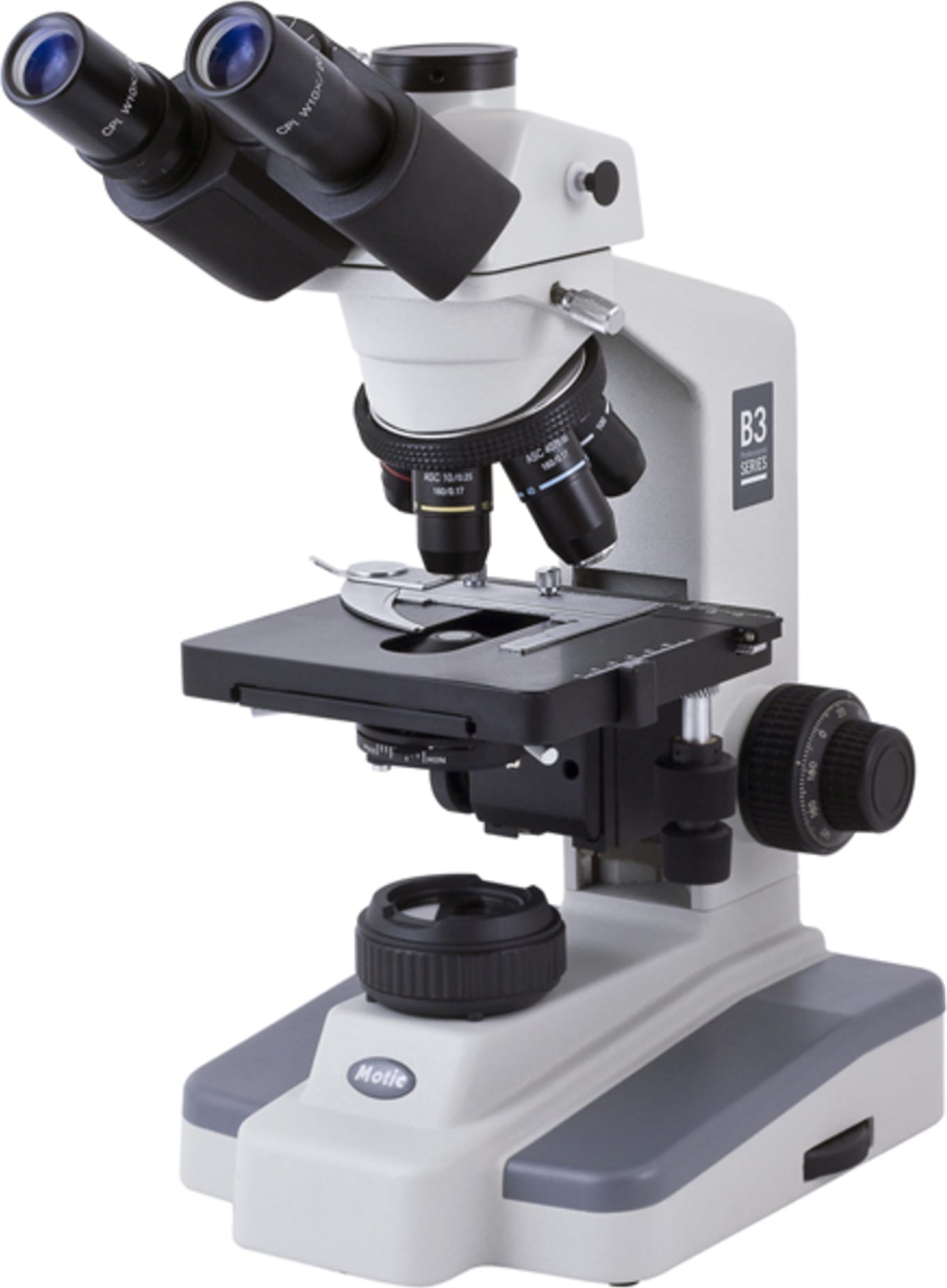

With built-in Koehler Illumination and a Quintuple Nosepiece as standard, the Motic B3-223ASC Professional Biological Microscope offers users a stable platform for professional microscopy.The B3-223ASC features a 30° inclined Trinocular Sidedntopf head for comfortable viewing while seated, rotates 360° and a WF10X/20mm Widefield eyepieces. The Interpupillary distance adjustment is between 55 and 75mm. Available in Achromatic Super Contrast or full Plan optics, this popular Motic series offers something for everyone.

Model: 1100100500641 Specifications
Type	Binocular
Eyepieces	Huygens eyepiece : H5X / 14.5 mm Widefield eyepiece WF10X / 20 mm Widefield eyepiece WF15X / 12 mm Widefield eyepiece WF20X / 11 mm
Micrometer eyepieces	Micrometer eyepiece WF10X / 20 mm, 100 divisions in 10 mm Reticle (for 20 mm eyepiece), 100 divisions in 10 mm Reticle holder
Plan Objectives -PL	Plan objective PL 4X / 0.10 Plan objective PL 10X / 0.25 Plan objective PL 20X / 0.40 Plan objective PL 40X / 0.65 / S Plan objective PL 60X / 0.85 / S Plan objective PL 100X / 1.25 / S-Oil
Achromatic Super Contrast Objectives(ASC)	Achromatic Super Contrast Objective ASC 4X / 0.10 Achromatic Super Contrast Objective ASC 10X / 0.25 Achromatic Super Contrast Objective ASC 40X / 0.65 / S Achromatic Super Contrast Objective ASC 100X / 125 / S-Oil
Plan phase Objective - PL PH	Plan Phase Objective PL PH 10X / 0.25 Plan Phase Objective PL PH 20X / 0.40 Plan Phase Objective PL PH 40X / 0.65 Plan Phase Objective PL PH 100X / 0.65
Phase contrast and darkfield accessories	10X phase contrast attachment (simple plug in type) 40X phase contrast attachment (simple plug in type) Centering telescope Special 5-hole turret type Abbe condenser 1.25 N.A. with choices for phase contrast 10X, 20X, 40X, 100X and brightfield Complete phase contrast set including: plan objectives PL PH 10X, 20X, 40X S and 100X-S / Oil, turret type Abbe condenser 1.25 N.A. and centering telescope Darkfield attachment (simple plug in type)
Polarizing accessories	Polarizing Set B.209
Photo and C-mount camera adapters	2.5X SLR Projection Lens 4X SLR Projection Lens 0.5X C-mount camera adapter for 1/3" chip sensors 0.6X C-mount camera adapter for 1/2" chip sensors
Spare Parts	Blue filter Green filter Yellow filter Eyecups (pair) Dust Cover (size C) Mirror and fork attachment Aluminum box
Spare Bulbs	Halogen bulbs 12V / 20 W
