Motic 1100100500333

Name: Motic 1100100500333
Brand: Motic
SKU: Motic1100100500333
Price: 1048.50 USD
Availability: InStock

0 reviews | Catalog: 1100100500333 | UPC: 638267601779 | Model: Motic 1100100500333

Compare

B1-223ASC

30° inclined Trinocular head for comfortable viewing while seated, rotates 360°
Light split 50/50
Widefield eyepieces WF10X/18mm
Interpupillary distance adjustment between 55 and 75mm
Revolving quadruple nosepiece with positive click stops for precise magnification changes
Parfocal and Parcentric DIN Plan Achromatic Objective 4X/0.10, DIN Achromatic objectives 10X/0.25, 40X/0.65 – Spring, 100X/1.25 – Spring/Oil
Coaxial coarse and fine focusing system with 2 micron minimum increment with upper limit stop to prevent damage to slides and objectives
Vertical travel range 27mm
Focus tension adjustment prevents stage drift
Large 140mm X 135mm mechanical stage with low-position coaxial controls. Travel range 78 X 50mm
Rack & Pinion mounted 1.25 N.A. Abbe condenser with iris diaphragm and filter holder
12V/20W Halogen illumination with intensity adjustment

View Product Details

List Price: $1,165.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories
Objectives

for the Motic 1100100500333

Motic 1101000300641 1X C-Mount camera adapter [no lens]

Catalog: 1101000300641

(0)

In Stock!

Add to Cart

Motic 1101000300652 0.5X C-Mount camera adapter for 1/2 chip sensors

Catalog: 1101000300652

(0)

In Stock!

Add to Cart

Motic 1101000300891 Special 5-hole turret type Abbe condenser 1.25 N.A. with choices for

Catalog: 1101000300891

(0)

In Stock!

Add to Cart

Motic 1101001400353 Micrometer eyepiece WF10X / 18mm, 100 divisions in 10mm

Catalog: 1101001400353

(0)

In Stock!

Add to Cart

Motic 1101001400572 Widefield eyepiece WF20X / 11mm

Catalog: 1101001400572

(0)

In Stock!

Add to Cart

Motic 1101001401791 CCIS EC-H PL 20X/ 0.40

Catalog: 1101001401791

(0)

In Stock!

Add to Cart

Motic 1101001401801 CCIS EC-H PL 40X/ 0.65/ S

Catalog: 1101001401801

(0)

In Stock!

Add to Cart

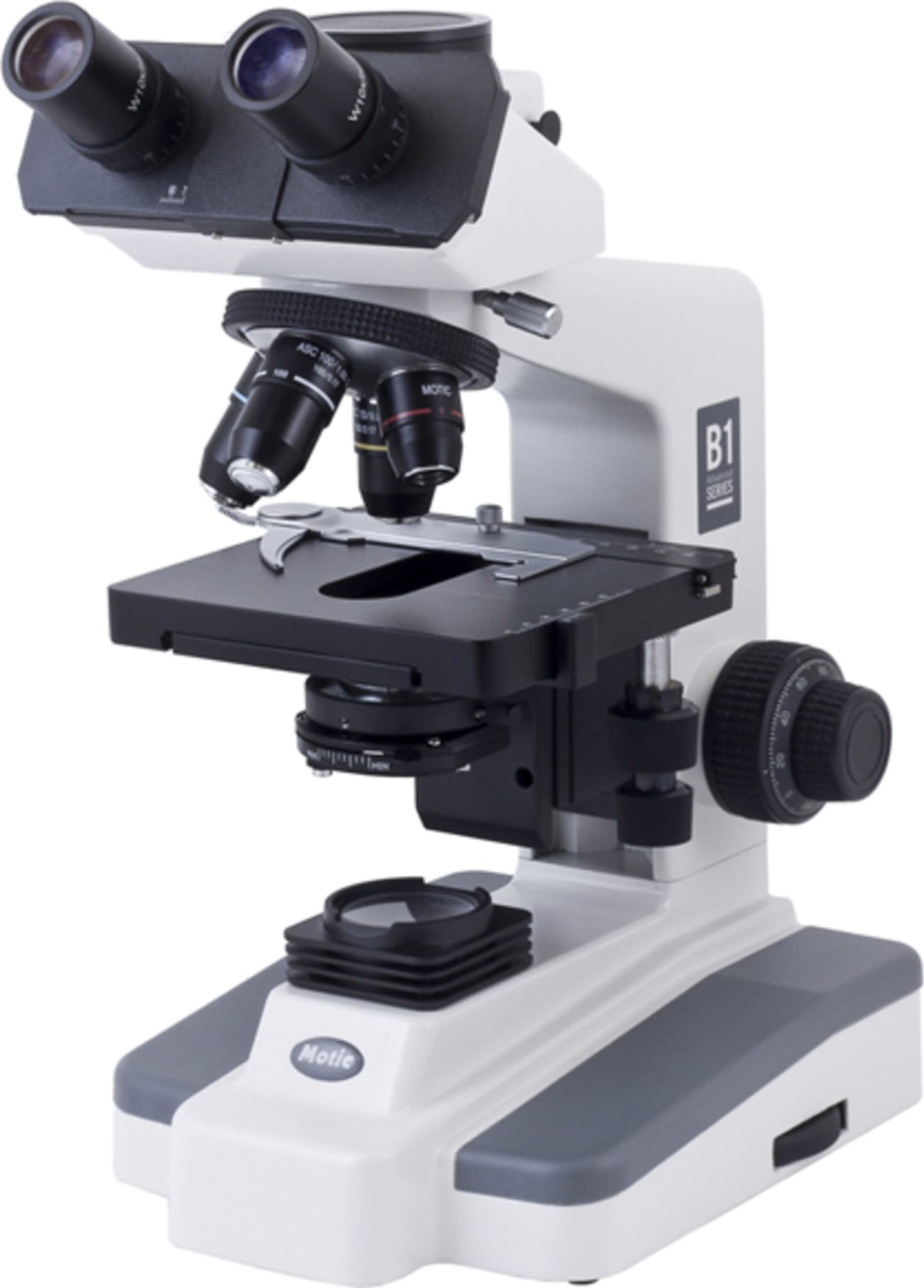

Superior in design and in performance, the Motic B1-223ASC Advance Biological Microscope incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical Engineering assures years of top performance. The B1-223ASC features a 30° inclined Trinocular head for comfortable viewing while seated, rotates 360° and a WF10X/18mm Widefield eyepieces. Choose from two grades of objectives. Standard Achromatic lenses deliver excellent clarity and normal flatness of field, while the ASC Achromatic Super Contrast objectives deliver extra contrast to the image. The B1-223ASC is exceptionally high quality microscope combines with precision coaxial coarse and fine focusing adjustment.

Model: 1100100500333 Specifications
Type	Binocular
Eyepieces	Huygens eyepiece : H5X / 14.5 mm Widefield eyepiece WF10X / 18 mm Widefield eyepiece WF15X / 12 mm Widefield eyepiece WF20X / 11 mm
Micrometer eyepieces	Micrometer eyepiece WF10X / 18mm, 100 divisions in 10 mm Reticle 19 mm (for 18 mm eyepiece), 100 divisions in 10 mm Reticle holder
Achromatic Objectives A	Achromatic objective 4X / 0.10 Achromatic Objective 10X / 0.25 Achromatic Objective 20X / 0.40 Achromatic Objective 40X / 0.65 / S Achromatic Objective 60X / 0.85 / S Achromatic Objective 100X / 125 / S-Oil
Achromatic Super Contrast Objectives(ASC)	Achromatic Super Contrast Objective ASC 4X / 0.10 Achromatic Super Contrast Objective ASC 10X / 0.25 Achromatic Super Contrast Objective ASC 40X / 0.65 / S Achromatic Super Contrast Objective ASC 100X / 125 / S-Oil
Plan phase Objective - PL PH	Plan Phase Objective PL PH 10X / 0.25 Plan Phase Objective PL PH 40X / 0.65 / S
Phase contrast and darkfield accessories	10X phase contrast attachment (simple plug in type) 40X phase contrast attachment (simple plug in type) Centering telescope Darkfield attachment (simple plug in type)
Polarizing accessories	Polarizing Set B.208 Polarizing Set B. 208NT (without rotating table)
Photo and C-mount camera adapters	2.5X SLR Projection Lens 4X SLR Projection Lens 0.5X C-mount camera adapter for 1/3" chip sensors 0.6X C-mount camera adapter for 1/2" chip sensors 1X C-mount camera adapter (no/lens)
Spare Parts	Blue filter Green filter Yellow filter Eyecups (pair) Dust Cover (size C) Mirror and fork attachment Aluminum box
Spare Bulbs	Halogen bulbs
