Our brilliant 5.6" (142mm) active matrix TFT color display is the largest in it’s class and with a special anti-glare coated Touchscreen the viewability is second to none.

If you need a more economical solution, the DC2000 can also be ordered with a super bright blue monochromatic display.


A measurement rate of 8 samples per second for 1 channel makes the DC2000 ideal for recording process signals that change quickly such as pressure. Or, if you require information less frequently, you can select to record between 8 samples per second and ten minutes.


Recording

Communications

Communication options offer great flexibility in accessing data or controlling the DC2000. Data can be accessed and downloaded over standard phone line using the RS232C option and a modem. The RS485 MODBUS option will allow the DC2000 to be installed into an existing MODBUS network or you can connect up to thirty one recorders in series. The 10BaseT Ethernet port option allows direct connection to LAN’s or WAN’s and the standard TCP/IP protocol means that you can transfer data over the Internet.

If you demand:

• Higher reliability
• Increased flexibility
• Optimum efficiency
• Lower costs
• DataChart 2000 Series Paperless Recorders are the instruments for you!

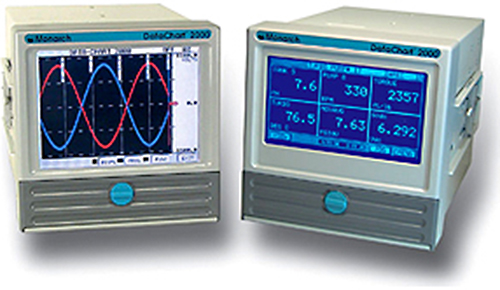

The Monarch DataChart 2000 is a reliable, flexible paperless recorder loaded with features, making it the perfect instrument for a wide range of applications.

The DataChart 2000 has 2, 4, 6 or 12 direct universal isolated inputs that are menu selectable for DC voltage, DC current and thermocouples. The intuitive touchscreen control provides fast, easy set up and operation. A brilliant 5.6" active matrix TFT color display is the largest in it's class with viewability that is second to none. A super bright blue monochromatic display is also available if an more economical solution in needed. There are more than 20 display modes to choose from. This gives you unparalleled flexibility to view only the data you need to see in virtually any format.

The DataChart 2000 has a measurement rate of up to 8 samples per second for 1 channel making the unit deal for recording process signals that change quickly such as pressure. Sample rates are user selectable and range up to 10 minutes. The data is stored in non-volatile internal RAM and downloaded to removable media automatically on a preset basis or on demand. Standard removable storage is CompactFlash® up to 2 GB or a 3.5" 1.44Mb disk drive.

The DataChart 2000 is available with communication options that offer great flexibility in accessing data or controlling the DC2000. Data can be accessed and downloaded over standard phone line using the RS232C option and a modem. The RS485 MODBUS option will allow the DC2000 to be installed into an existing MODBUS network or you can connect up to thirty one recorders in series. The 10BaseT Ethernet port option allows direct connection to LAN's or WAN's and the standard TCP/IP protocol means that you can transfer data over the Internet.

Industry demands a higher level of reliability, better efficiency, more flexibility and lower costs. These industry requirements were kept clearly in focus when we designed our fourth generation of Paperless Recording Systems:


Because your data is so important
Data Chart recorders were designed to be ultra-reliable. We chose the finest components available and combined them with a robust modular mechanical structure. Our optimized design means fewer components are needed. Fewer components means fewer failures.

Up to 2 Megabytes of non-volatile memory keeps your data safe. You will never lose recorded data, even during a power outage. Data is downloaded automatically to your choice of removable media: 3.5” 1.44 Meg disk or CompactFlash™ card (up to 2 Gig in size).


Time is Money! Corporate down-sizing and cost cutting leaves you with less time to accomplish your goals. Data-Chart recorders are virtually maintenance free. No paper or pens to replace, no mechanical parts to wear out and because they are digital instruments, they requires less time to calibrate. This allows you to use your time more efficiently.

Simple Setup

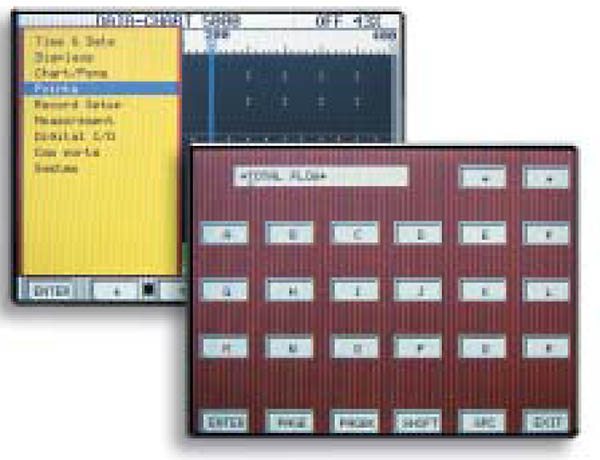

Our intuitive touchscreen control makes configuring the DC2000 a breeze.  We make full use of our screen with a large, easy to follow menu system.

Outstanding Viewability
The DC2000 has a brilliant 5.6” TFT active matrix color LCD display which is the largest of any 144mm square recorder. We’ve even added a special anti-glare coating to optimize viewability under any conditions.

We’re Flexible. Data Chart recorders are unparalleled in providing the highest level of flexibility of any paperless recorder made in the world. Universal inputs, networking capability, powerful math packages and a multitude of display choices allow you to display, record and communicate your data the way you want.

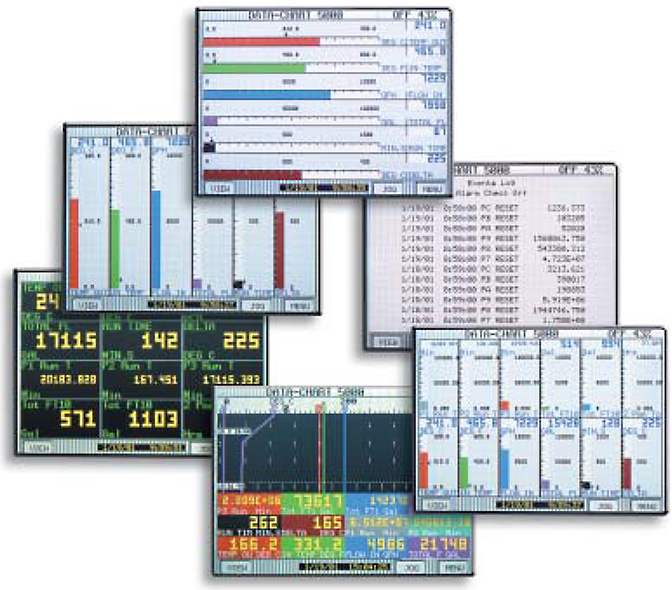

Display Modes. You can choose from more than 20 different display modes including trends, bargraphs and digital indicators. Select pen colors, background colors and much more.




Companion Software is a powerful and intuitive Windows based application that allows you to monitor real time data or review previously recorded data in graphic or tabular format, search files for specific events, link alarm and event files to trended data, print graphic or tabular files and export files to spreadsheet applications such as Excel.

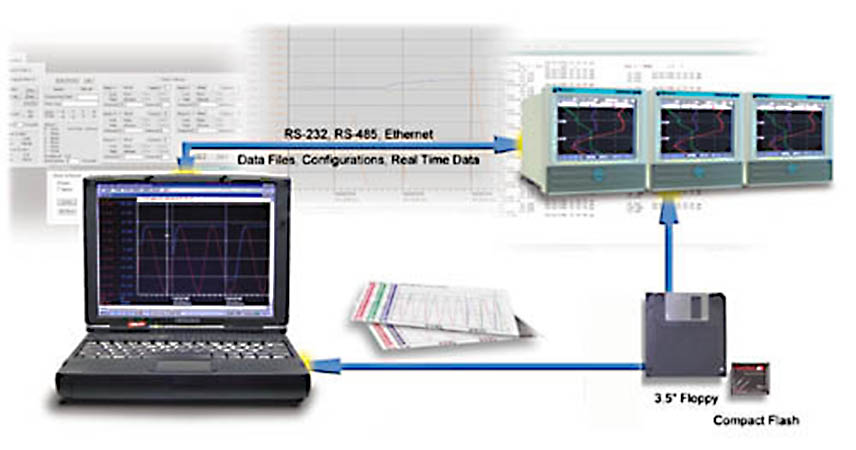

Recorder configurations are easily generated using Companion Software and can be downloaded to your recorders storage media and transferred to the recorder or transferred directly over ethernet or serial line communications. Monitor, configure and control up to 32 units with the RS485 Modbus option or control from remote locations using a modem connection. Whatever the application, Companion Software puts you in complete control.


Guardian Software allows you to create a complete single station data supervisory and storage system. If you need to monitor data in real time or if you require redundant data storage to a PC, Guardian Software is the solution.

Multiple Data-Chart 2000’s can be placed on a standard ethernet or Modbus network along with your other plant instruments and monitored in real time. In addition, data can be stored on your local PC greatly improving data management and security!




The Solid State Data Recorder is a Paperless Recording instrument. Data is stored on either an internal floppy disk, a removable PCMCIA memory card or a Zip Drive.

All data is stored in MSDOS format and may be archived or analyzed on any IBM compatible PC running Microsoft Windows 3.1 or  Windows 95/98 using the available Companion Software. The instrument retains all the features of a traditional Paper Chart Recorder by virtue of its large STN monochrome or TFT color Liquid Crystal Display (LCD) which presents the data in the traditional chart mode as well as in bar graph or digital numeric form.

The unit has many features and functions which are unique and cannot be performed on traditional paper recorders, such as data compression and historic data browsing. The recorder is programmed via a touch screen keypad on the display.

The recorder will measure and process up to six direct inputs, calculated, conditional, or external points for logging, trending, or data manipulation.

If direct inputs are not desired, the Data Recorder will accept up to fifteen points from a combination of calculated, conditional, or external point types.
