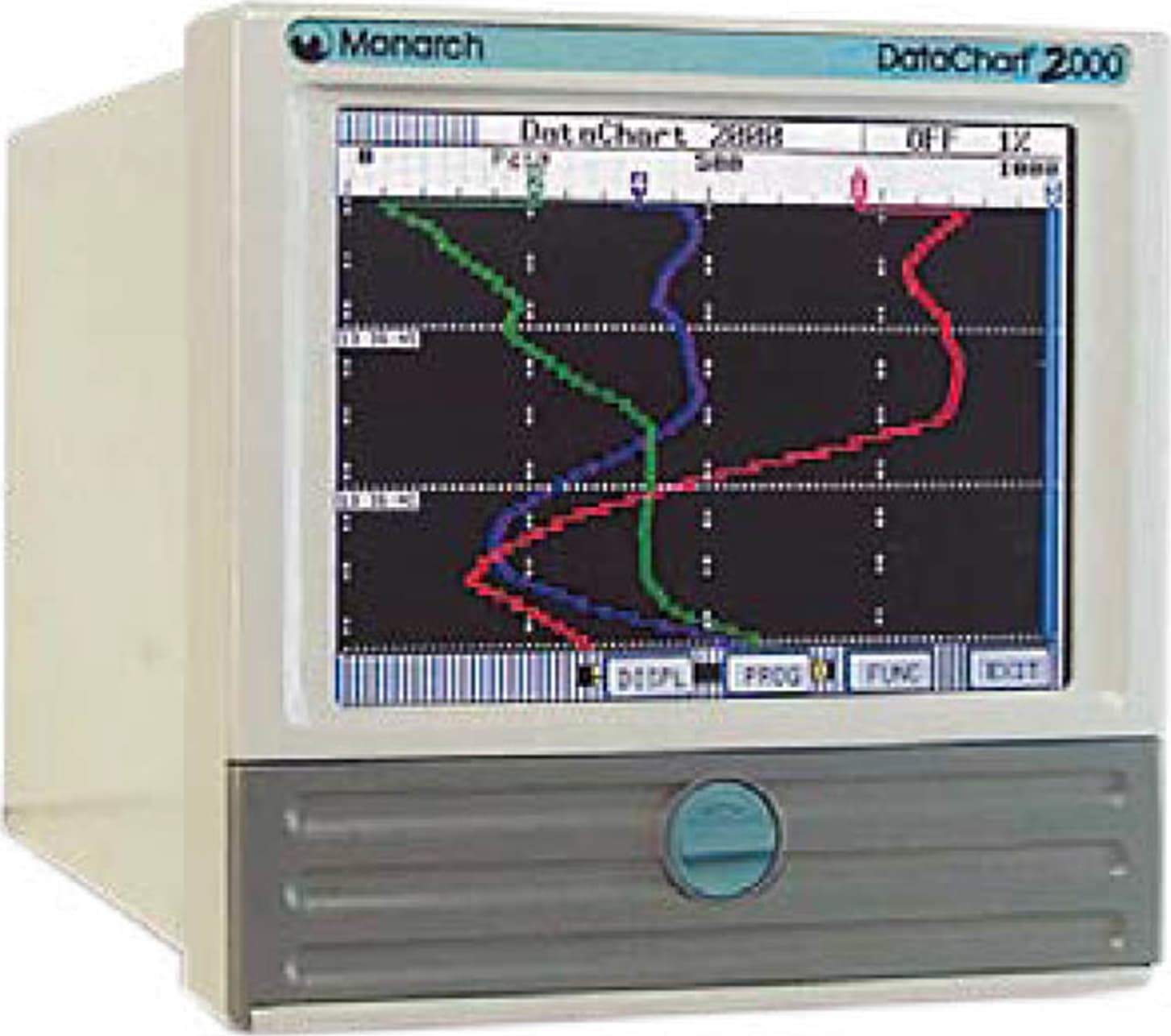

The Monarch DataChart 2000 is a reliable, flexible paperless recorder loaded with features, making it the perfect instrument for a wide range of applications.

The DataChart 2000 has 2, 4, 6, or 12 direct universal isolated inputs that are menu selectable for DC voltage, DC current, and thermocouples. The intuitive touchscreen control provides fast, easy setup and operation. A brilliant 5.6" active matrix TFT color display is the largest in its class with viewability that is second to none. A super bright blue monochromatic display is also available if a more economical solution is needed. There are more than 20 display modes to choose from. This gives you unparalleled flexibility to view only the data you need to see in virtually any format.

The DataChart 2000 has a measurement rate of up to 8 samples per second for 1 channel making the unit deal for recording process signals that change quickly such as pressure. Sample rates are user selectable and range up to 10 minutes. The data is stored in non-volatile internal RAM and downloaded to removable media automatically on a preset basis or on-demand. Standard removable storage is CompactFlash® up to 2 GB or a 3.5" 1.44Mb disk drive.

The DataChart 2000 is available with communication options that offer great flexibility in accessing data or controlling the DC2000. Data can be accessed and downloaded over standard phone line using the RS232C option and a modem. The RS485 MODBUS option will allow the DC2000 to be installed into an existing MODBUS network or you can connect up to thirty one recorders in series. The 10BaseT Ethernet port option allows direct connection to LAN's or WAN's and the standard TCP/IP protocol means that you can transfer data over the Internet.
