Monarch 6235-010 Pls Pocket Led Strobe

Name: Monarch 6235-010 Pls Pocket Led Strobe
Brand: Monarch
SKU: MonarchPLS Pocket LED Strobe
Price: 520.00 USD
Availability: InStock
Rating: 4.50 (2 reviews)

4.5 (2 Reviews) | Catalog: 6235-010 | Model: Monarch PLS Pocket LED Strobe

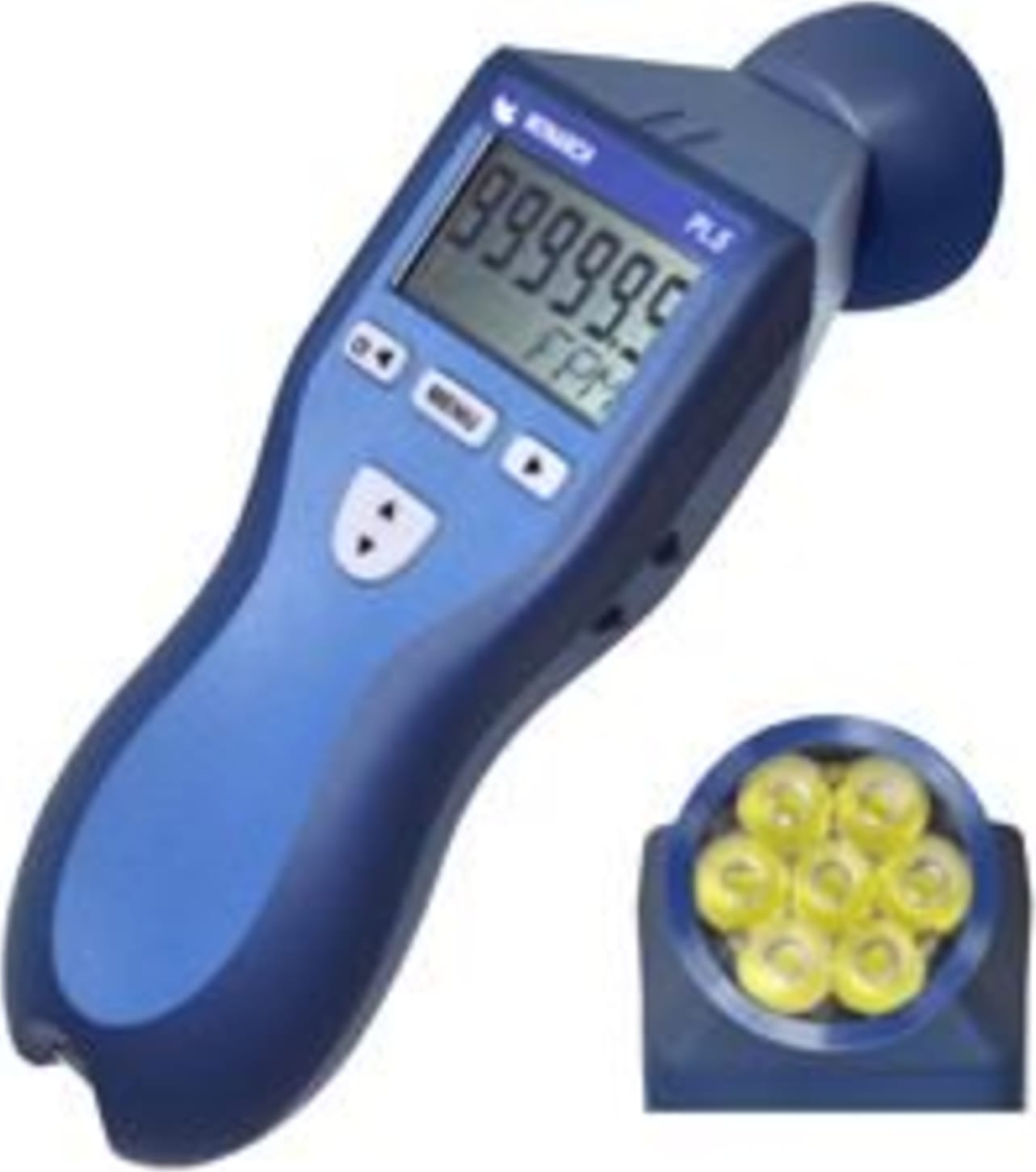

Monarch 6235-010 PLS Pocket LED Stroboscope

Compare

PLS Strobe and Universal 115/230 Recharger; includes NIST Calibration Certificate

Energy efficient with long battery life
Lightweight and pocket sized
Extremely bright, uniform light
Quiet/Cool operation
No lamp replacements
Diagnostic inspection and RPM checks
Digital LCD backlit display
Tripod mounting bushing (1/4-20)
CE marked, RoHS compliant
NIST Certificate included
Intuitive one hand operation

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $520.00

Your Price: See price in cart

Add to Cart to See Price

Request Quote

Items in This Series



Product	Monarch PLS Pocket LED Strobe PLS Strobe and Universal 115/230 Recharger; includes NIST Ca ...	Monarch PLS LED Strobe Kit PLS Pocket LED Strobe Kit - with Case
Price
In Stock
Style (Stroboscope)	Hand Held	Hand Held
Digital Display	6 Digits	6 Digits
Revolution Rate Maximum	300000 RPM	300000 RPM
Compare	Add to compare	Add to compare

Recommended for you

Monarch PLS Pocket LED Strobe Accessories

Choose a Category

for the Monarch PLS Pocket LED Strobe

Monarch CC-13 Plastic latching carry case for PLS stroboscope

Catalog: 6280-072

(0)

In Stock!

Add to Cart

Monarch T-5 (2 pack) Reflective Tape - 5 ft. roll, 0.5 inch wide (2-pack)

Catalog: 6180-069

(0)

In Stock!

Add to Cart

Monarch ROLS-P Remote Optical Laser Sensor with 8 ft. cable, 1/8 inch [3.5 mm] phone...

Catalog: 6180-029

(0)

In Stock!

Add to Cart

Monarch ROS-P 6180-057 ROS-P Remote Optical Sensor with 8 foot cable 1/8" (3.5mm)...

Catalog: 6180-057

(1)

In Stock!

Add to Cart

Monarch ROS-P-25 ROS-P-25 Remote Optical Sensor with 25 foot cable and 1/8" (3.5mm)...

Catalog: 6180-057-25

(0)

In Stock!

Add to Cart

The Monarch PLS Pocket LED Stroboscope is a compact, rugged, light weight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements. The silent cool running LED’s are extremely energy efficient providing up to 5 hours of operation on a single charge. A wide operating range of 30-300,000 flashes per minute covers most industrial applications. Additional features include external input for remote triggering or tachometer mode, pulse output, memory for up to 5 preset flash rates, N.I.S.T. calibration certificate, tachometer mode for speed measurements up to 250,000 rpm using optional remote sensors and TTL pulse output.

Specifications

Display:	LCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282inch (7.11mm) high digits
Indicators:	Battery level, On Target, Select, TACH, and EXT icons
Memory:	Last setting before power down is remembered and restored on next power up. 5 user settable memory locations
Flash Duration:	Adjustable 0.5 to 2500 microseconds or .1 to 18 degrees of rotation (auto adjusts with flash rate)
Safety:	This product is designed to be safe for indoor use under the following conditions (per IEC61010-1)
Compliance:	CE EN61326-1:2006 EMC 2004/108/EC
Operating Temp:	32-104°F (0-40°C)
Humidity:	Maximum relative humidity 80% for temperature up to 88°F (31°C) decreasing linearly to 50% RH at 104°F (40°C)
Input Power:	Battery powered: Internal Li-Ion rechargeable batteries 3.6Vdc
Light Source:	7 LED Array
Light Output:	Average: 1800 Lumens at 6000 FPM 8” from lens
Color Temp:	5600°K
Run Time:	5 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries
Charge Time:	4-5 hours typical with supplied charger
Weight:	0.6 lbs (0.27kg) including batteries
Dimensions:	7.75" x 2.75" x 2.3" (197 x 70 x 58 mm)

Internal Mode:
Flash Range:	30-300,000 FPM (Flashes per minute) 0.5 to 5000Hz
Flash Rate Accuracy:	0.005% of setting or ± last digit
Flash Rate Resolution:	0.01 to 1 FPM (menu selectable), 0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9
External Modes:
Flash Range:	0-300,000 FPM (Flashes per minute) 0.5 to 5000Hz
Tachometer Mode:	30 to 300,000 RPM
Accuracy:	±0.005% of reading or ± last digit
Display Update Rate:	0.5 second typical above 120 RPM
Trigger to Flash Delay:	~15 µsec
External Input:	2.5V to 12V peak pulse 500 nanosec min pulse width, positive or negative edge triggered (menu selectable)
Display Update Rate:	Instantaneous
Output Pulse:	3V pulse. One pulse per flash in internal mode. Mimics input pulse in external mode
Time Base:	Ultra Stable Crystal Oscillator

Tech Specs

Reliability / Preventative Maint / Rotational/Stroboscopes Template
Style (Stroboscope)	Hand Held
Digital Display	6 Digits
Revolution Rate Maximum	300000 RPM
Revolution Accuracy	0.005 RPM
Flash Rate Maximum	300000 RPM
Flash Rate Accuracy	0.005 RPM
Flash Rate Duration	2.5 MILISECONDS (0.0025 s)
External Trigger	Yes
Rechargable Power	Yes
Test Equipment General Attributes
Unique Features	Light Source: 7 LED Array Light Output: Average: 1800 Lumens at 6000 FPM 8” from lens Color Temp: 5600°K Run Time: 5 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries Charge Time: 4-5 hours typical with supplied charger
Warranty	1 YEARS
Safety Approval	CE, RoHS
Interfaces I/O	Analog Output, Analog Input
HTS/Schedule B Number	9029.20.6000
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	Li-ion
Power Supply Voltage	120V/220V Universal
Country of Origin	United States

4.5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Service Engineer

5.0

accurate, easy to handle, long lasting battery

HEINZ SCHLESIES on May 21, 2021

Recommend to a Friend

Monarch rating

4.0

an excellent piece of equipment the only downfall is the protectant glass on both the ones I have fell out within a week of using also at the recharge port there needs to be a plug to cover because in the cement industry it is a dusty environment and when the port gets filled with dust recharging is impossible also it creates a disfunction in the programming that causes the strobe light to not function properly until the charge port is cleaned I have to use tape to keep the dust out but there should be a permanent fix from the manufacturer

Anonymous on Sep 08, 2015
