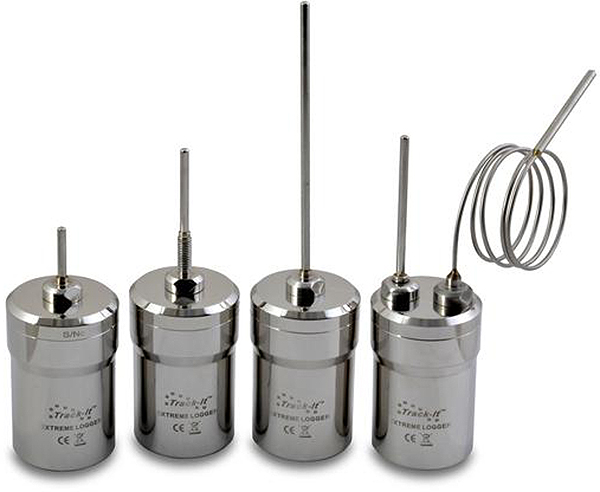

Monarch 5396-1120 - Track-It Extreme Temperature Logger Dual 1" Probe and 22" Bendable Probe with NIST Certificate
Typical Uses
- Validation
- Medical Device Sterilization
- Steam Heat Sterilization
- Autoclave Sterilization
- Ovens/Chambers
- Refrigerators/Freezers
- HACCP Implementation
- Pasteurization
- Food and Beverage Processing
- Uniformity Mapping
- Pharmaceutical Processing
- Storage
The Track-It Extreme Temperature Data Loggers are battery powered stand alone data loggers that record up to 30,000 samples of temperature data. The units are easily configured using the included Track-It Software. Simply plug the logger into the Extreme Logger Reader (required additional item) which connects via a standard USB cable to any open USB port on your PC and the Track-It Software automatically identifies the logger. The Logger communicates via the Extreme Logger Reader without opening the logger so long term integrity of the housing is ensured. The Track-It Extreme Temperature Logger housing is made of 316L Stainless Steel and meets IP68 rating standards. Set the unit up to start or stop recording immediately, at a predetermined time and date, or only at certain temperature values. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.
Applications

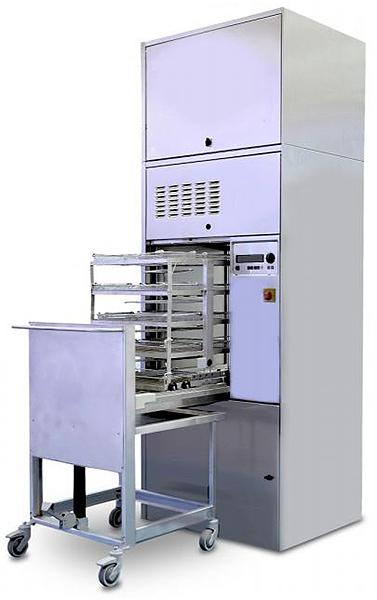

Sterilization
Sterilizers require great accuracy, stability, and repeatability of temperature measurement. Track-It Extreme Loggers are calibrated using a thorough and exhaustive routine to give phenomenal results in these critical areas. Trust your data to be of the highest quality and reliability in all applications such as sterilizations of different products. Fully validate sterilizers uniform load temperatures with all varieties of shapes and types of insertion and removal designs. |
|

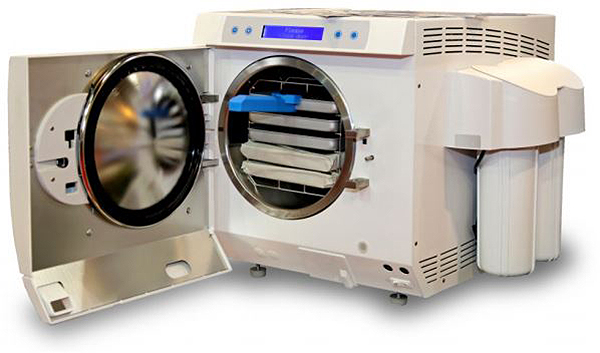

Autoclaves
Track-It Extreme Temperature Loggers are the perfect solution for your autoclave validation and thermal mapping requirements. Track-It Extreme Temperature Loggers are ruggedized to withstand harsh environments and pressures up to 10 Bar with an IP68 rating. Use single and dual channel versions for economic uniformity and exact product temperature records. |
|

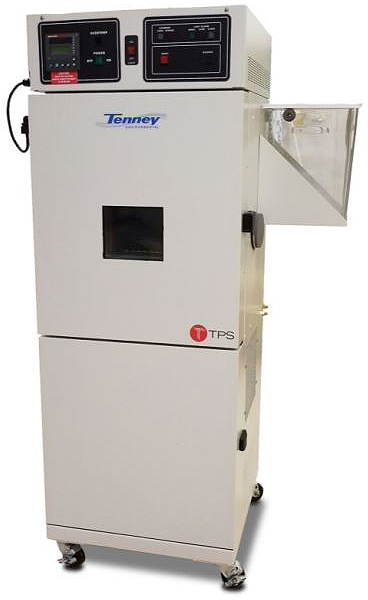

Ovens
Oven temperature mapping, validation, uniformity test, and continuous measurement and recording is made simple and reliable by Track-It Extreme Temperature Loggers. Use a dual channel logger to record oven temperature as well as product temperature. Record precise temperatures for ideal results in heating and drying applications for research, clinical, industrial, or manufacturing needs. |
|

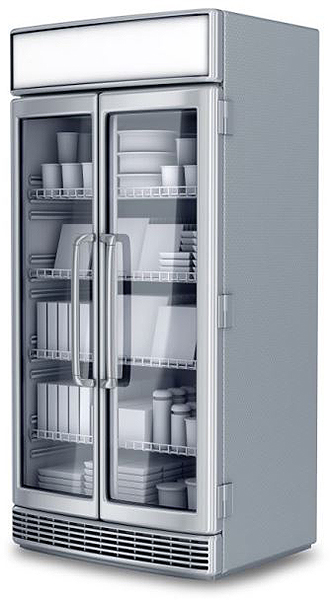

Cold Storage Validation
Easily locate and remove portable self contained data loggers rather than complicated wiring using thermocouples for validation and long term monitoring of cold chambers, storage rooms refrigerators. Save time, money, and hassles with Track-It Extreme Temperature Loggers. Avoid loss of costly inventory from poorly monitored temperatures in refrigerators, freezers, and cold storage rooms and containers. |
|
Track-It Software
Track-It Software is a powerful Windows based software package that is included with every Track-It Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately.
Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

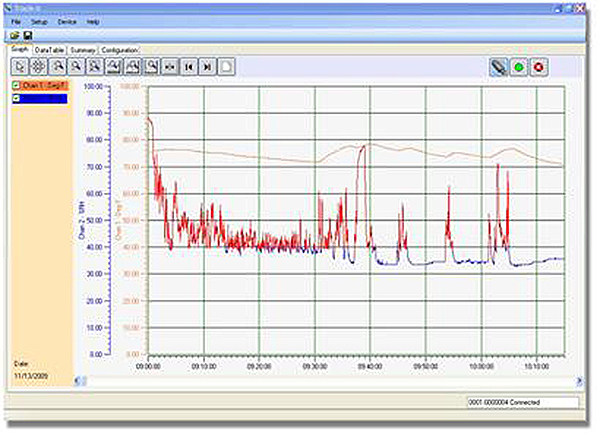

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.
Compatible with Win XP/Vista/7/8/10, 32 and 64 Bit.
