Monarch 5396-0322 Digital Barometer with Datalogger with Long Life Battery

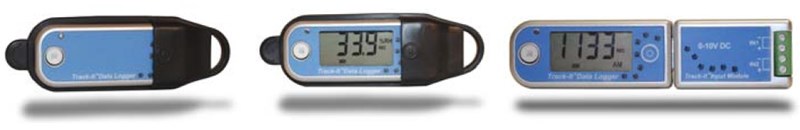

The Track-It™ Barometric Pressure/Temperature Data Logger is a battery powered stand alone compact data logger that records up to 64,000 samples of Barometric Pressure and/or Temperature data. The unit is easily configured using the free download Track-It Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. Barometric (also known as atmospheric) pressure can be displayed in a variety of engineering units. It can be used as an altimeter. Information displayed on the LCD is user selectable and can be sequenced by pressing the logger button. There is a multicolored LED indicator to notify user of alarms or general activity. A splash proof protective cover protects the logger when in use. Additionally, the logger can be used to record external inputs using optional Track-It DC voltage or DC current modules.
![Monarch_5396_Barometric-Temperature_Data_Logger_Typical_Uses]()
Track-It™ Transport Android App
The Track-It Barometric/Temperature logger is compatible with free Track-It Transport Android application. The Transport Application allows you to use your Android device and an On-The-Go cable to retrieve data from the logger while in the field. Record start/stop and erase memory is also available.
The Track-It Transport App is available for free on Google Play: https://play.google.com/store/apps/details?id=com.trackit.transporter.
![Monarch_5396_Barometric-Temperature_Data_Logger_Software]()

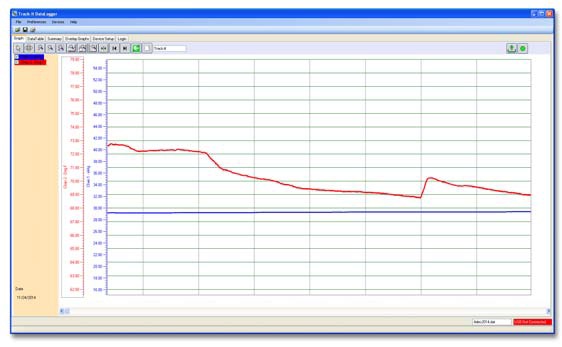

Track-It Software
Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.
Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.
View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.
Compatible with Win XP/Vista/7/8, 32 and 64 Bit versions.
Typical Uses:
- Weather
- Environmental Comfort
- Health and Well Being
- Building Management
- Healthcare Facilities
- Laboratory
- Altitude
- Manufacturing
- Transportation
- Aviation
