Monarch 5396-0306 5800 PSI range Pressure/Temperature Logger
The Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers are battery powered stand alone water tight compact data loggers that record up to 64,000 samples. They can be configured to record both Pressure and Temperature or Vacuum and Temperature or either parameter alone to maximize data storage space. The unit is easily configured using the free download Track-It Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery.

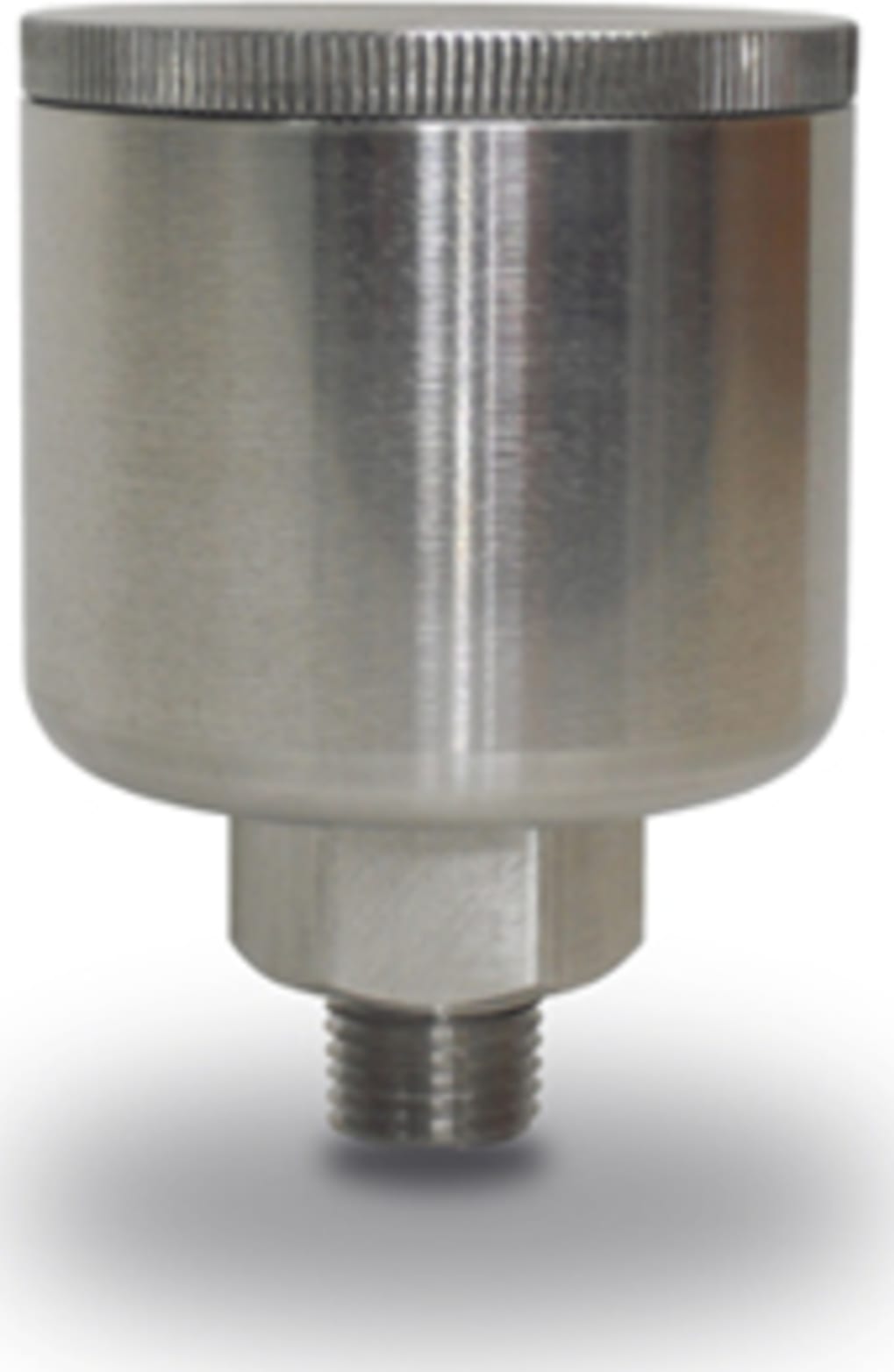

The Track-It™ Pressure/Temperature Data Logger can be ordered in several pressure or vacuum ranges: 0-35, 0-150, 0-350, 0-550, 0-2000 and 0-5800 PSI or 760-380 and 760-0 Torr. The logger is packaged in a rugged submersible 316L stainless steel housing and has a standard 1/4” NPT fitting. The replaceable internal lithium battery has up to a 5 year life.
Track-It™ Transport Android App
The Track-It Pressure/Temperature loggers are compatible with free Track-It Transport Android application. The Transport Application allows you to use your Android device and an On-The-Go cable to retrieve data from the logger while in the field. Record start/stop and erase memory is also available.
The Track-It Transport App is available for free on Google Play: https://play.google.com/store/apps/details? id=com.trackit.transporter.
![Monarch_5396-0306_5800_PSI_range_Pressure-Temperature_Logger_Track-It_Software]()
Track-It Software

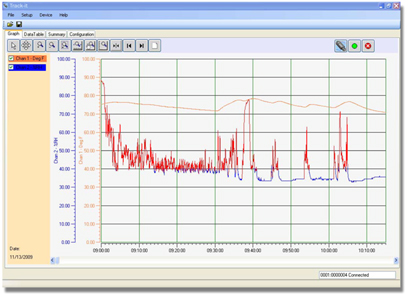

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.
Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.
View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.
Compatible with Win XP/Vista/7, 32 and 64 Bit.
Typical Uses
- Industrial processes
- Food processing
- Water supply line
- Hydrant water pressure
- Household water pressure
- Building supply pressure
- Municipalities
- Oil and Gas
- Petro Chemical
- Compressors
- Pumps
- Water and waste water
- Vacuum Furnaces
