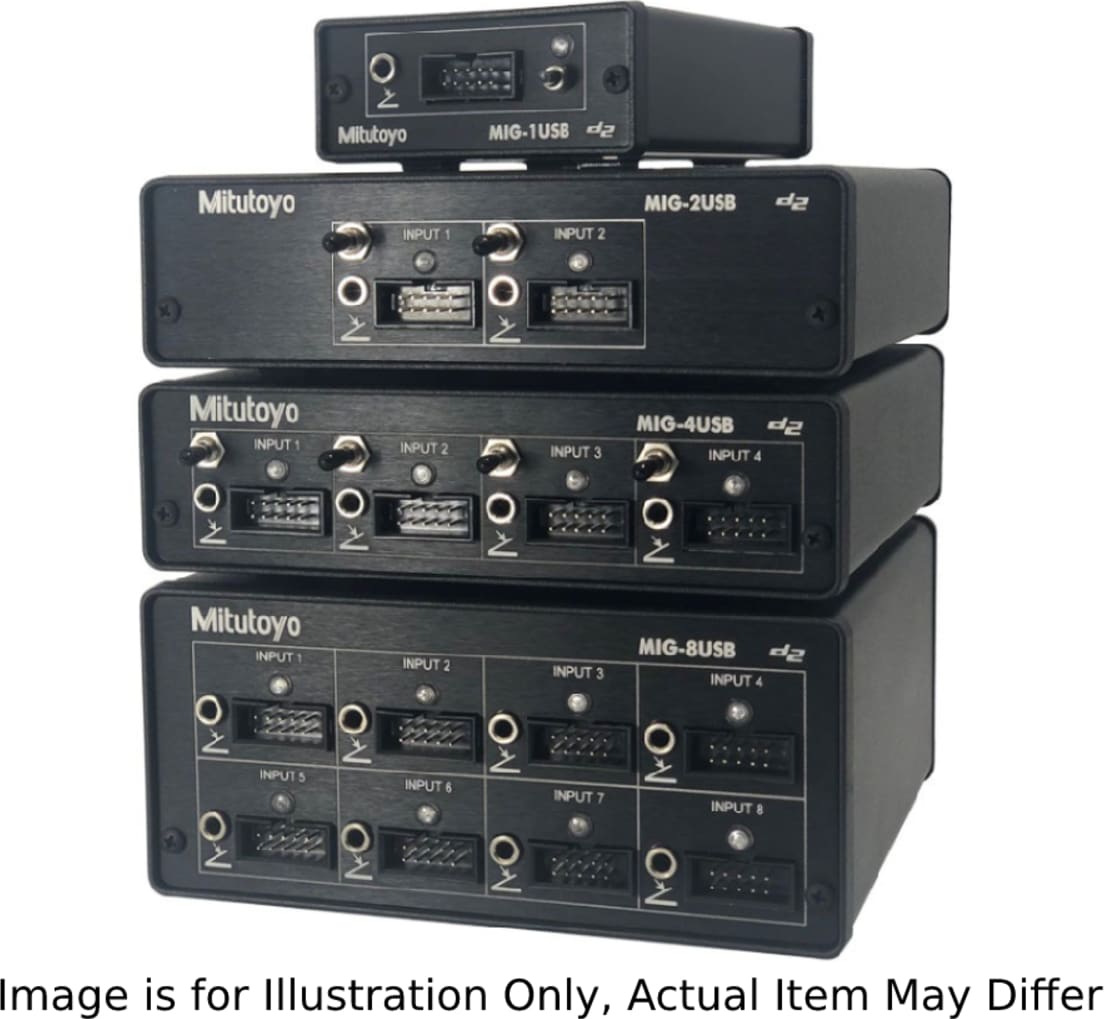

Mitutoyo MIG-8USB - USB Multiplexer with 8 Ports (No. 64AAB640)

0 reviews | Model: Mitutoyo MIG-8USB


MIG-8USB, V6.0 W/D2 COMPAT, 8 INPUT

  • MIG-8USB - USB Multiplexer with 8 Ports (No. 64AAB640)
  • Power supply: Power adapter
  • Data Input: 8 ports, 10-pin Digimatic, Serial RS232 (RS232 DB9M)
  • Data Output: USB (HID/VCP), RS232 (RS232 DB9F)
  • Trigger Port - Used to trigger data or start/stop MAX, MIN, TIR data collection with external trigger
  • Interface that connects multiple gages with SPC Output to a PC
  • Allows data transfer from the gage into any software such as Excel or MeasurLink
  • Simplifies multi-gage inspection stations to a single USB connection
  • 10-pin Digimatic input port with LED indicator
  • SPC cables are used to connect gages to the Multiplexer
View Product Details

List Price: $1,470.00

Your Price: $1,378.12
