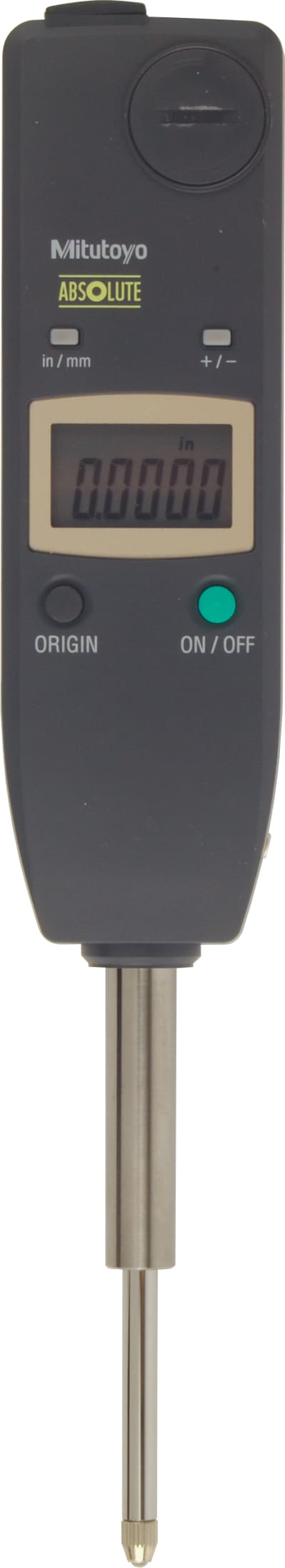

Mitutoyo 575-123 - ABSOLUTE Digimatic Indicator ID-U, Inch/Metric, Stem 3/8in, Flat Back Only
The Mitutoyo ABS digital ID-U digital indicators with a slim, simple design provide up to 25.4mm/1in a range that is easy to use and read. Large push buttons provide direct, easy access to all of the indicator’s functions, and readings are shown on a large 8mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation, which is useful in multipoint measurements. The indicator’s 23mm depth and approximately 20,000-hour battery life make it suitable for installation in measuring devices.
ABS (Absolute) Sensor
The original Mitutoyo ABS (ABSOLUTE) sensor, which is capable of relocating the origin even after turning the power off, enables you to quickly start multipoint measurement. Also, the ABS measurement mode can be restored even after measurement in the INC mode, where zero setting is possible at any position, improving work efficiency.
Measurement Data Output
From the output terminal, measurement data can be output to a PC via a compact printer, Digimatic mini processor DP-1VR, or input tool by pressing the button below the display. Wireless transmission of measurement data to a PC can also be performed using the measurement data wireless communication system U-WAVE.
ANSI/AGD Type and ISO/JIS Type
Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS Type) indicator. Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8in dia. and #4-48UNF thread mount for the contact point.
See Brochure/Data Sheet for Model Specifications and Functions.
Mitutoyo ABSOLUTE Digimatic Indicator ID-U
- Similar in size to standard Series 2 dial indicators
- Available in Metric and Inch/Metric models
- SPC output function allows for quick and easy data management in real-time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use
- Slim digital indicator with a low price
- Ideal for installation into measuring devices because of its compact design and long battery life.
- Functions include Origin set, zero sets, counting direction switching, power On/Off, data output, and inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, counting value composition error, over-flow error
- Unlimited response speed eliminates over-speed errors
- Dust/Water protection level: IP42
